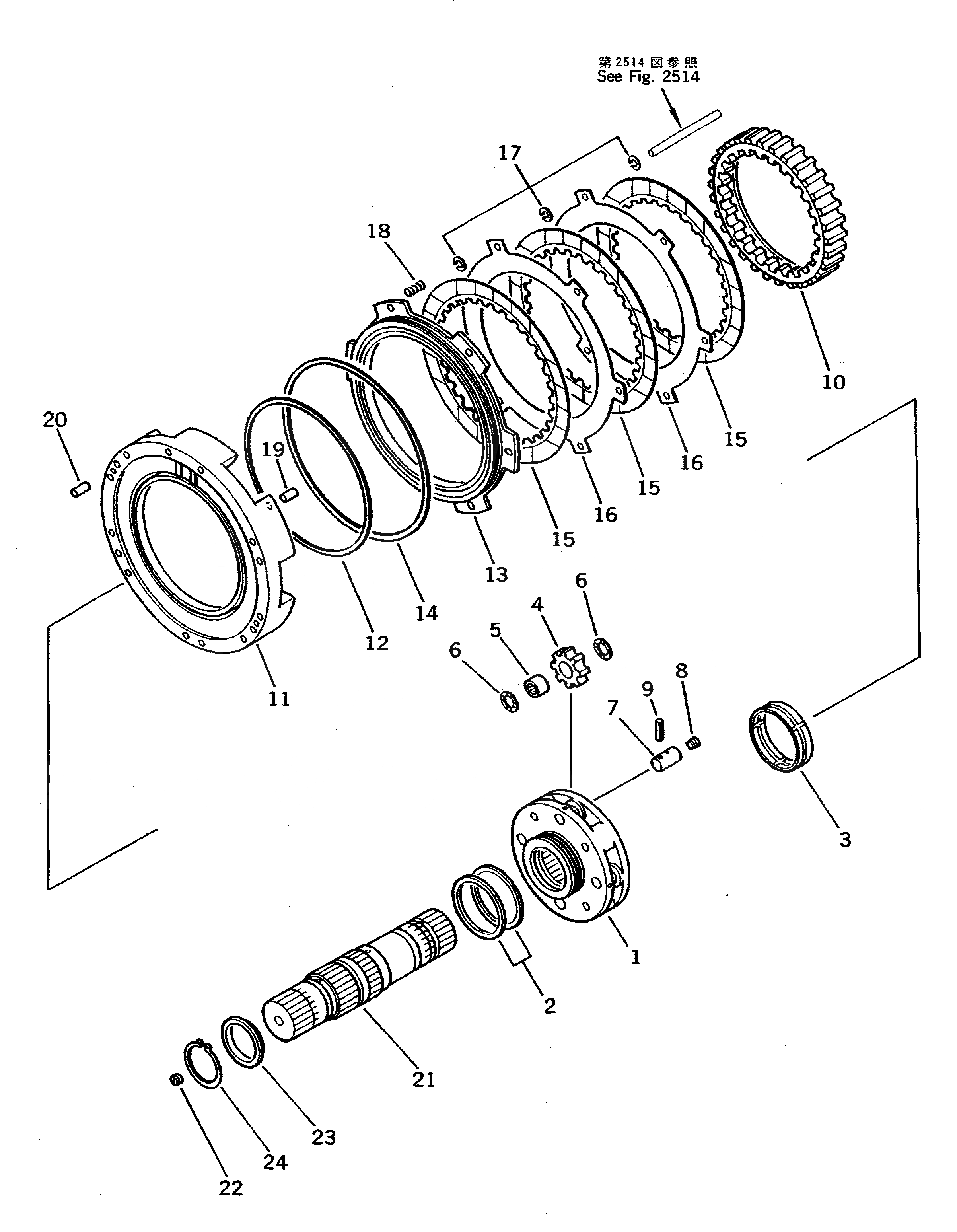

Запчасти Komatsu WA500-1 1 МУФТА ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO.

-1шт.

|1

425-15-01000

TORQFLOW ASS'Y

SN: 10001-(1744)

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 TO 2524.

-1шт.

|$$4

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

425-15-00011

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|1

425-15-00020

TRANSMISSION ASS'Y

SN: (2987)-19999

1шт.

|1

425-15-00010

TRANSMISSION ASS'Y

SN: 10001-(2986)

1шт.

|$$8

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524.

-1шт.

1

425-15-12340

CARRIER

SN: 10001-UP

1шт.

2

07018-11355

RING,SEAL

SN: 10001-UP

2шт.

3

425-15-12860

BUSHING

SN: 10001-UP

1шт.

4

425-15-12430

GEAR

SN: 10001-UP

4шт.

5

425-15-19420

BEARING

SN: 10001-UP

4шт.

6

425-15-19440

WASHER,THRUST

SN: 10001-UP

8шт.

|7

425-15-00110

SHAFT ASS'Y

SN: 10001-UP

4шт.

7

0

SHAFT

SN: 10001-UP

1шт.

8

07043-50108

PLUG

SN: 10001-UP

1шт.

9

04025-00620

PIN,SPRING

SN: 10001-UP

4шт.

10

425-15-12610

GEAR,RING

SN: 10001-UP

1шт.

11

425-15-11130

HOUSING,1ST

SN: 10001-UP

1шт.

12

232-15-19230

RING,SEAL (K2)

SN: 10001-UP

1шт.

13

425-15-12750

PISTON,1ST

SN: 10001-UP

1шт.

14

582-15-19250

RING,SEAL (K2)

SN: 10001-UP

1шт.

15

195-15-32710

DISC

SN: 10001-UP

3шт.

16

425-15-12740

PLATE

SN: 10001-UP

2шт.

17

175-15-42880

SPRING

SN: 20001-UP

18шт.

|17

425-15-12880

SPRING

SN: 10001-19999

18шт.

18

234-15-15230

SPRING¤ (L= 52.0)

SN: 10001-UP

12шт.

19

04020-01434

PIN,DOWEL

SN: 10001-UP

2шт.

20

04020-01434

PIN,DOWEL

SN: 10001-UP

2шт.

|21

425-15-00130

SHAFT ASS'Y

SN: 10001-UP

1шт.

21

0

SHAFT

SN: 10001-UP

1шт.

22

423-15-12190

PLUG,(D=2.0MM)

SN: 10001-UP

1шт.

23

425-15-11550

COLLAR

SN: 10001-UP

1шт.

24

04064-08530

RING,SNAP

SN: 10001-UP

1шт.
