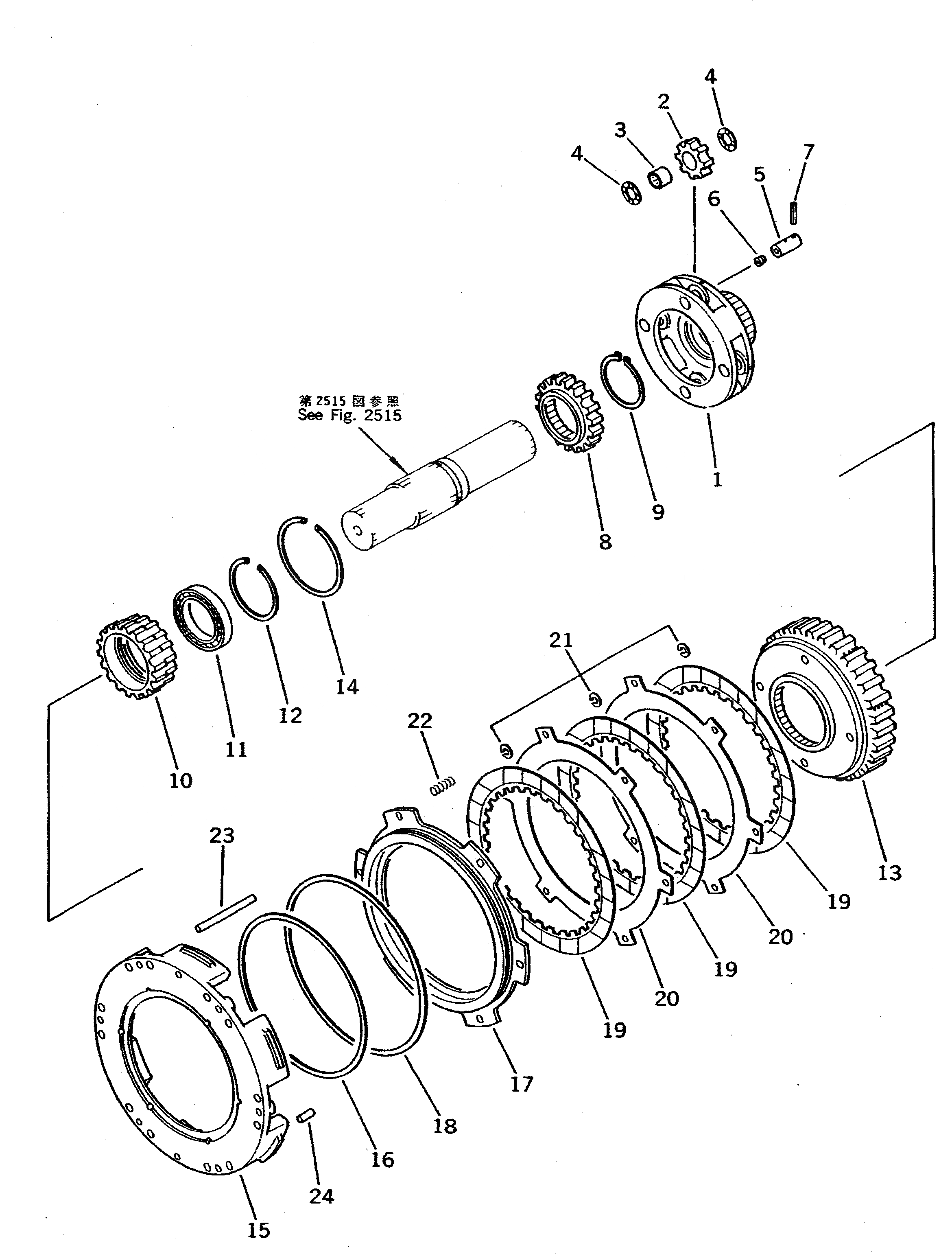

Запчасти Komatsu WA500-1 3 МУФТА ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO.

-1шт.

|1

425-15-01000

TORQFLOW ASS'Y

SN: 10001-(1744)

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 TO 2524.

-1шт.

|$$4

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

425-15-00011

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|1

425-15-00020

TRANSMISSION ASS'Y

SN: (2987)-19999

1шт.

|1

425-15-00010

TRANSMISSION ASS'Y

SN: 10001-(2986)

1шт.

|$$8

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524.

-1шт.

1

425-15-12330

CARRIER

SN: 10001-UP

1шт.

2

425-15-12430

GEAR

SN: 10001-UP

4шт.

3

425-15-19420

BEARING

SN: 10001-UP

4шт.

4

09233-12920

WASHER,THRUST

SN: (2639)-UP

8шт.

|4

0

WASHER,THRUST

SN: 10001-(2638)

8шт.

|5

425-15-00110

SHAFT ASS'Y

SN: 10001-UP

4шт.

5

0

SHAFT

SN: 10001-UP

1шт.

6

07043-50108

PLUG

SN: 10001-UP

1шт.

7

04025-00620

PIN,SPRING

SN: 10001-UP

4шт.

8

425-15-12240

GEAR

SN: 10001-UP

1шт.

9

04064-09530

RING,SNAP

SN: 10001-UP

1шт.

10

425-15-12254

GEAR

SN: 10001-UP

1шт.

11

06000-06919

BEARING

SN: 10001-UP

1шт.

12

04077-00130

RING,SNAP

SN: 10001-UP

1шт.

13

425-15-12620

GEAR,RING

SN: 10001-UP

1шт.

14

04070-00150

RING,SNAP

SN: 10001-UP

1шт.

15

425-15-11140

HOUSING,3RD

SN: 10001-UP

1шт.

16

562-15-19230

RING,SEAL (K2)

SN: 10001-UP

1шт.

17

425-15-12760

PISTON,3RD

SN: 10001-UP

1шт.

18

567-15-12820

RING,SEAL (K2)

SN: 10001-UP

1шт.

19

195-15-32710

DISC

SN: 10001-UP

3шт.

20

425-15-12740

PLATE

SN: 10001-UP

2шт.

21

175-15-42880

SPRING

SN: 10001-UP

18шт.

22

234-15-15230

SPRING¤ (L= 52.0)

SN: 10001-UP

12шт.

23

155-15-12770

PIN

SN: 10001-UP

6шт.

24

04020-01434

PIN,DOWEL

SN: 10001-UP

2шт.
