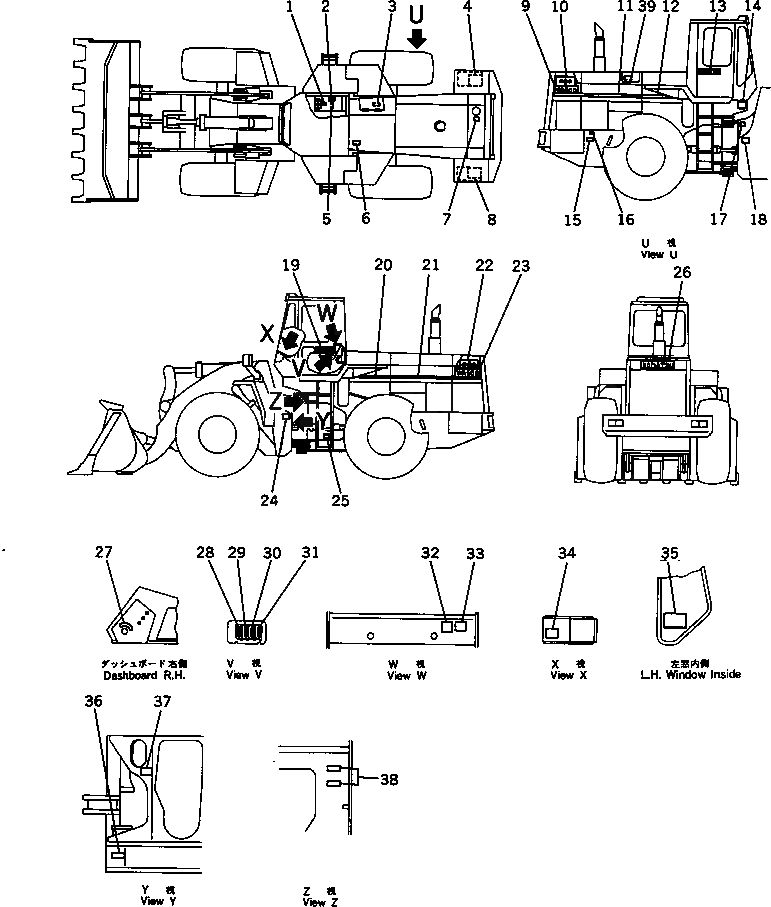

Запчасти Komatsu WA500-1 МАРКИРОВКА (С КАБИНОЙ) (ФРАНЦИЯ)(№-9999) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09685-00003

PLATE, OPERATING,LOADER CONTROL LOCK

SN: 10001-@

1шт.

2

421-93-11132

PLATE, OPERATING,LOADER CONTROL LEVER

SN: 10001-@

1шт.

3

424-93-11590

PLATE, CAUTION,BRAKE OIL

SN: 10001-@

1шт.

4

421-93-11830

PLATE, CAUTION,BATTERY

SN: 10001-@

1шт.

5

425-93-11340

PLATE, OPERATING,RELAY

SN: 10001-19999

1шт.

6

09653-05000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

7

09668-05000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

8

421-93-11830

PLATE, CAUTION,BATTERY

SN: 10001-@

1шт.

9

425-93-11370

PLATE, MARK,WA500

SN: 10001-@

1шт.

10

425-93-11360

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

11

425-93-11380

STRIPE

SN: 10001-@

1шт.

12

425-93-11390

STRIPE

SN: 10001-19999

1шт.

13

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

14

425-93-11241

CHART, OIL

SN: 11458-19999

1шт.

14

425-93-11240

CHART, OIL

SN: 10001-11457

1шт.

15

09101-05000

PLATE, CAUTION,FUEL

SN: 10001-@

1шт.

16

419-933-1140

PLATE, CAUTION,FAN BELT

SN: 10001-@

1шт.

17

09602-52635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

17

04418-13060

SCREW

SN: 10001-@

4шт.

18

423-93-11520

PLATE, CAUTION,KEEP OUT

SN: 10001-@

1шт.

19

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

20

425-93-11390

STRIPE

SN: 10001-19999

1шт.

21

425-93-11380

STRIPE

SN: 10001-@

1шт.

22

425-93-11360

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

23

425-93-11370

PLATE, MARK,WA500

SN: 10001-@

1шт.

24

423-93-11520

PLATE, CAUTION,KEEP OUT

SN: 10001-@

1шт.

25

419-933-1130

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

26

425-93-11410

PLATE, NAME,KOMATSU

SN: 10001-@

1шт.

27

09683-51070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-@

1шт.

28

421-93-11840

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

29

421-93-11850

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

30

421-93-11860

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

31

421-93-11870

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

32

419-933-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

33

419-933-1120

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-@

1шт.

34

419-933-1270

PLATE, CAUTION,TORQUE CONVERTER OIL TEMP.

SN: .-@

1шт.

34

0

PLATE, CAUTION,TORQUE CONVERTER OIL TEMP.

SN: 10001-.

1шт.

35

425-93-11270

PLATE, OPERATING,MONITOR PANEL

SN: 10001-@

1шт.

36

09152-05000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-@

1шт.

37

425-93-11310

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-19999

1шт.

38

09152-05000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-@

2шт.

39

09637-30262

PLATE, INSTRUCTION,AIR CLEANER

SN: .-@

1шт.
