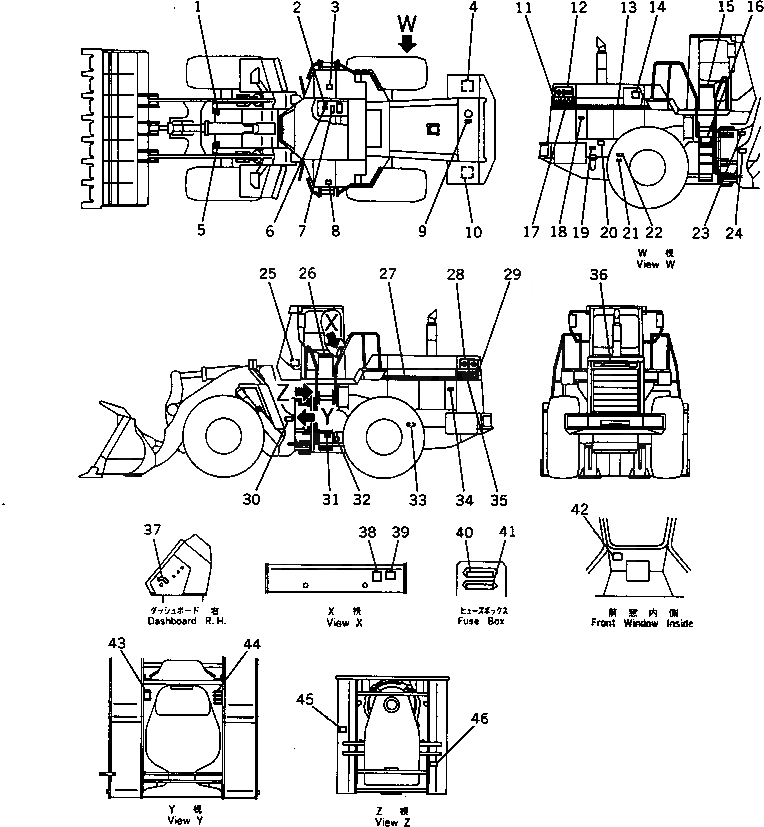

Запчасти Komatsu WA500-1 МАРКИРОВКА (С КАБИНОЙ) (ИСПАНИЯ)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
419-V00-1250
PLATE, OPERATING,LIFT HERE
SN: 10001-UP
1шт.
2
09685-00003
PLATE, OPERATING,LOADER CONTROL LOCK
SN: 10001-UP
1шт.
3
09653-01000
PLATE, SAFETY,HYDRAULIC TANK
SN: 10001-UP
1шт.
4
421-V00-1120
PLATE, CAUTION,BATTERY
SN: 10001-UP
1шт.
5
419-V00-1250
PLATE, OPERATING,LIFT HERE
SN: 10001-UP
1шт.
6
421-93-11132
PLATE, OPERATING,LOADER CONTROL LEVER
SN: 10001-UP
1шт.
7
421-V00-1220
PLATE, OPERATING,RELAY
SN: 20001-UP
1шт.
8
421-V00-1210
PLATE, CAUTION,BRAKE OIL
SN: 10001-UP
1шт.
9
09668-01000
PLATE, SAFETY,RADIATOR CAP
SN: 10001-UP
1шт.
10
421-V00-1120
PLATE, CAUTION,BATTERY
SN: 10001-UP
1шт.
11
425-93-11490
PLATE, MARK
SN: 20378-UP
1шт.
11
425-93-11370
PLATE, MARK,WA500
SN: 10001-20377
1шт.
12
425-93-11360
PLATE, MARK,SYMBOL
SN: 10001-UP
1шт.
13
425-93-11380
STRIPE
SN: 10001-UP
1шт.
14
09637-70161
PLATE, INSTRUCTION,AIR CLEANER
SN: 10154-UP
1шт.
15
09690-C0224
PLATE, MARK
SN: 20378-UP
1шт.
15
09690-50280
PLATE, MARK,KOMATSU
SN: 10001-20377
1шт.
16
425-V00-1150
CHART, OIL
SN: 20001-UP
1шт.
17
425-93-11450
STRIPE
SN: 20001-UP
1шт.
18
419-V00-1140
PLATE, CAUTION,FAN
SN: 10001-UP
1шт.
19
09101-01000
PLATE, CAUTION,FUEL
SN: 10001-UP
1шт.
20
425-V00-1160
PLATE, OPERATING,REMOTE GREASE, REAR
SN: 20001-UP
1шт.
21
421-V00-1180
PLATE, CAUTION,ENGINE OIL DRAIN
SN: 20001-UP
1шт.
22
419-V00-1250
PLATE, OPERATING,LIFT HERE
SN: 10001-UP
1шт.
23
09602-11635
PLATE, NAME,(LIMITED SUPPLY)
SN: 10001-UP
1шт.
24
419-V00-1230
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
25
425-V00-1130
PLATE, OPERATING,MONITOR PANEL
SN: 10001-UP
1шт.
26
09690-C0224
PLATE, MARK
SN: 20378-UP
1шт.
26
09690-50280
PLATE, MARK,KOMATSU
SN: 10001-20377
1шт.
27
425-93-11380
STRIPE
SN: 10001-UP
1шт.
28
425-93-11360
PLATE, MARK,SYMBOL
SN: 10001-UP
1шт.
29
425-93-11490
PLATE, MARK
SN: 20378-UP
1шт.
29
425-93-11370
PLATE, MARK,WA500
SN: 10001-20377
1шт.
30
419-V00-1230
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
31
09152-01000
PLATE, SAFETY,AIR RESERVOIR DRAIN
SN: 10001-UP
1шт.
32
419-V00-1130
PLATE, CAUTION,FRAME LOCK
SN: 10001-UP
1шт.
33
419-V00-1250
PLATE, OPERATING,LIFT HERE
SN: 10001-UP
1шт.
34
419-V00-1140
PLATE, CAUTION,FAN
SN: 20001-UP
1шт.
35
425-93-11450
STRIPE
SN: 20001-UP
1шт.
36
09690-C0560
PLATE, MARK
SN: 20378-UP
1шт.
36
425-93-11410
PLATE, NAME,KOMATSU
SN: 10001-20377
1шт.
37
09683-11070
PLATE, OPERATING,MAIN SWITCH
SN: 10001-UP
1шт.
38
419-V00-1150
PLATE, SAFETY,STARTING AND AFTER OPERATING
SN: 10001-UP
1шт.
39
419-V00-1120
PLATE, CAUTION,STARTING AND INSPECTION
SN: 10001-UP
1шт.
40
421-V00-1240
PLATE, OPERATING,BREAKER
SN: 20001-UP
1шт.
41
421-V00-1230
PLATE, OPERATING,BREAKER
SN: 20001-UP
1шт.
42
419-V00-1260
PLATE, CAUTION,TORQUE CONVERTOR OIL TEMP.
SN: 10001-UP
1шт.
43
425-V00-1180
PLATE, OPERATING,REMOTE GREASE, FRONT, L.H.
SN: 20001-UP
1шт.
44
425-V00-1170
PLATE, OPERATING,REMOTE GREASE, FRONT, R.H.
SN: 20001-UP
1шт.
45
427-V00-1130
PLATE, CAUTION,TRANSMISSION OIL LEVEL
SN: 20001-UP
1шт.
46
09152-01000
PLATE, SAFETY,AIR RESERVOIR DRAIN
SN: 10001-UP
1шт.
Выбрано товаров: 52
