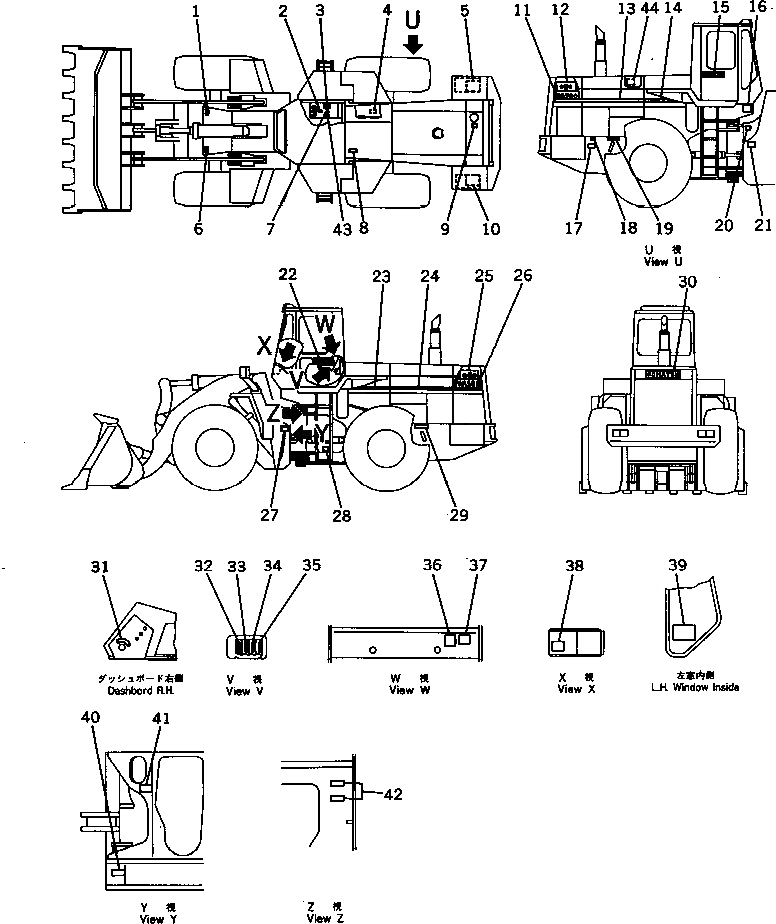

Запчасти Komatsu WA500-1 МАРКИРОВКА (С КАБИНОЙ) (АНГЛ.)(№-9999) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-93-11680

PLATE, OPERATING,LIFT HERE

SN: 10001-19999

1шт.

2

09685-00003

PLATE, OPERATING,LOADER CONTROL LOCK

SN: 10001-@

1шт.

3

421-93-11132

PLATE, OPERATING,LOADER CONTROL LEVER

SN: 10001-@

1шт.

4

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-@

1шт.

5

421-93-11630

PLATE, CAUTION,BATTERY

SN: 10001-@

1шт.

6

419-93-11680

PLATE, OPERATING,LIFT HERE

SN: 10001-19999

1шт.

7

421-93-11330

PLATE, OPERATING,RELAY

SN: 10001-19999

1шт.

8

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

9

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

10

421-93-11630

PLATE, CAUTION,BATTERY

SN: 10001-@

1шт.

11

425-93-11370

PLATE, MARK,WA500

SN: 10001-@

1шт.

12

425-93-11360

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

13

425-93-11380

STRIPE

SN: 10001-@

1шт.

14

425-93-11390

STRIPE

SN: 10001-19999

1шт.

15

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

16

425-93-11232

CHART, OIL

SN: 11458-19999

1шт.

16

425-93-11231

CHART, OIL

SN: 10541-11457

1шт.

16

0

CHART, OIL

SN: 10001-10540

1шт.

17

09101-03000

PLATE, CAUTION,FUEL

SN: 10001-@

1шт.

18

362-54-27390

PLATE, CAUTION,FAN BELT

SN: 10001-19999

1шт.

19

419-93-11680

PLATE, OPERATING,LIFT HERE

SN: 10001-19999

1шт.

20

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-19999

1шт.

20

04418-13060

SCREW

SN: 10001-@

4шт.

21

09162-03000

PLATE, CAUTION,KEEP OUT

SN: 10001-@

1шт.

22

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

23

425-93-11390

STRIPE

SN: 10001-19999

1шт.

24

425-93-11380

STRIPE

SN: 10001-@

1шт.

25

425-93-11360

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

26

425-93-11370

PLATE, MARK,WA500

SN: 10001-@

1шт.

27

09162-03000

PLATE, CAUTION,KEEP OUT

SN: 10001-@

1шт.

28

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

29

419-93-11680

PLATE, OPERATING,LIFT HERE

SN: 10001-19999

1шт.

30

425-93-11410

PLATE, NAME,KOMATSU

SN: 10001-@

1шт.

31

09683-30070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-@

1шт.

32

421-93-11640

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

33

421-93-11650

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

34

421-93-11660

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

35

421-93-11670

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

36

421-93-11940

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

37

362-98-12150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-@

1шт.

38

421-93-11980

PLATE, CAUTION,TORQUE CONVERTER OIL TEMP.

SN: 10244-@

1шт.

38

0

PLATE, CAUTION,TORQUE CONVERTER OIL TEMP.

SN: 10001-10243

1шт.

39

425-93-11260

PLATE, OPERATING,MONITOR PANEL

SN: 10001-@

1шт.

40

09152-03000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-@

1шт.

41

424-93-11290

PLATE, OPERATING,TRANSMISSION OIL LEVEL

SN: 10001-19999

1шт.

42

09152-03000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-19999

2шт.

43

426-93-11740

PLATE, OPERATING,RELAY

SN: 10154-19999

1шт.

44

09637-30161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10154-@

1шт.
