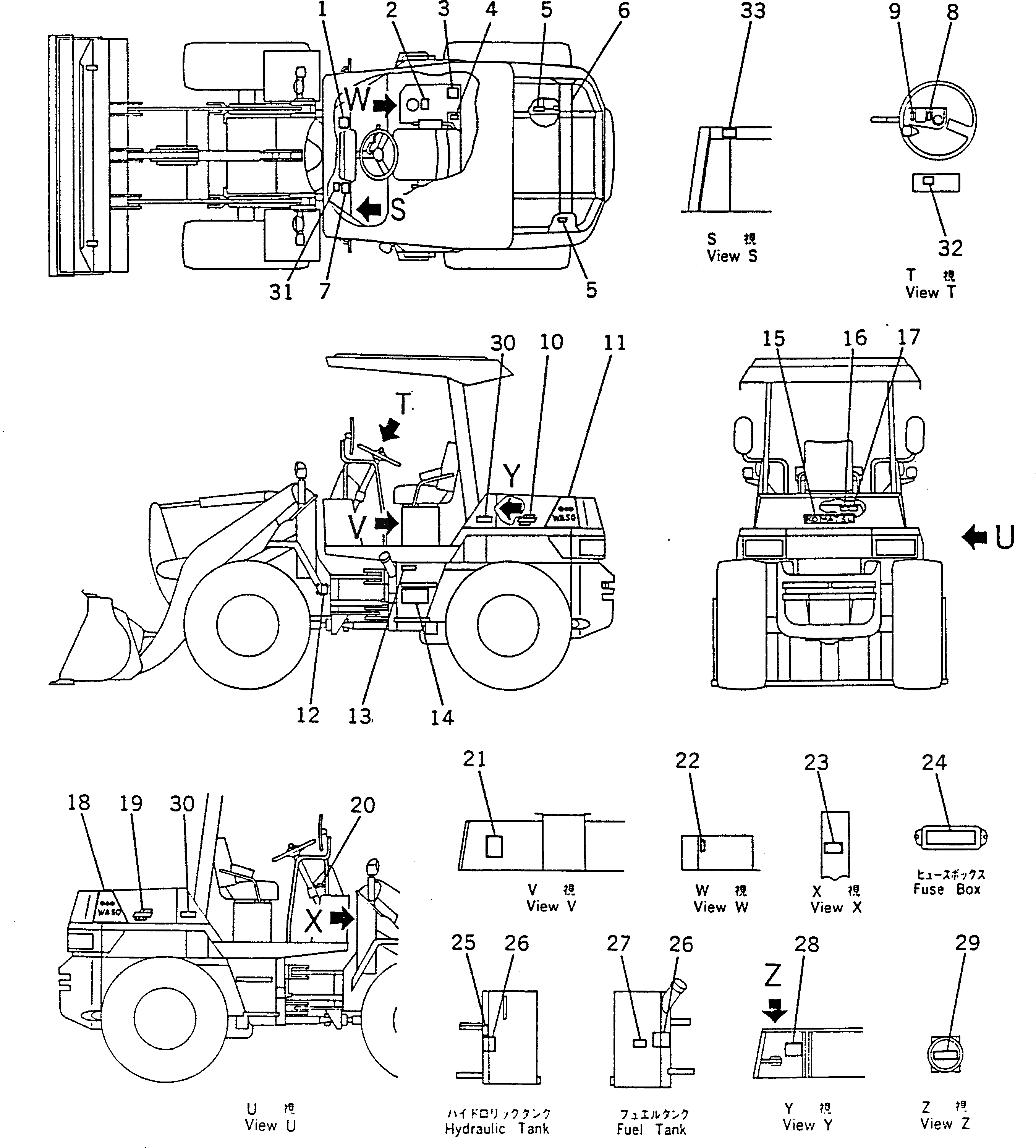

Запчасти Komatsu WA50-1 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

415-93-11310

PLATE¤ SAFETY,WARNING

SN: 10001-UP

1шт.

2

417-93-11121

PLATE¤ OPERATING,BUCKET CONTROL LEVER

SN: 10001-UP

1шт.

3

362-54-17150

PLATE¤ CAUTION,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

4

415-93-11490

PLATE¤ CAUTION,HOSE CHANGE

SN: 10001-UP

1шт.

5

362-54-17180

PLATE¤ CAUTION,FAN

SN: 10001-UP

2шт.

6

42A-93-11230

PLATE¤ MARK,STRIPE

SN: 10001-UP

1шт.

7

415-93-11350

PLATE¤ CAUTION,INSTRUCTION

SN: 10001-UP

1шт.

8

42A-93-11121

PLATE¤ OPERATING,DIRECTIONAL CONTROL LEVER

SN: 10001-UP

1шт.

9

42A-93-11191

PLATE¤ OPERATING,SPEED CONTROL LEVER

SN: 10001-UP

1шт.

10

415-93-11160

PLATE¤ MARK,SILENT MACHINE

SN: 10001-UP

1шт.

11

42A-93-11211

PLATE¤ MARK,L.H.¤ WA50

SN: 10001-UP

1шт.

12

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

13

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: 10001-UP

1шт.

14

42A-93-11110

CHART¤ OIL

SN: 10001-UP

1шт.

15

417-93-11210

PLATE¤ MARK,KOMATSU

SN: 10001-UP

1шт.

16

415-93-11510

PLATE¤ CAUTION,RADIATOR

SN: 10001-UP

1шт.

17

09668-00100

PLATE¤ SAFETY,RADIATOR

SN: 10001-UP

1шт.

18

42A-93-11221

PLATE¤ MARK,R.H.¤ WA50

SN: 10001-UP

1шт.

19

415-93-11160

PLATE¤ MARK,SILENT MACHINE

SN: 10001-UP

1шт.

20

09683-01070

PLATE¤ OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

21

42A-93-11170

PLATE¤ DATA

SN: 10001-UP

1шт.

22

09685-00002

PLATE¤ OPERATING,BUCKET CONTROL LEVER LOCK

SN: 10001-UP

1шт.

23

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|23

04418-13060

SCREW

SN: 10001-UP

4шт.

24

42A-93-11132

PLATE¤ OPERATING,FUSE BOX

SN: 10001-UP

1шт.

25

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

26

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

2шт.

27

419-93-11210

PLATE¤ CAUTION,OIL INSPECTION

SN: 10001-UP

1шт.

28

415-93-11460

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

29

418-93-11360

PLATE¤ CAUTION,ENGINE OIL

SN: 10001-UP

1шт.

30

42A-93-11270

PLATE¤ MARK,AVANCE

SN: 10113-UP

2шт.

31

42A-93-11260

PLATE¤ SAFETY,TRANSMISSION CONTROL LOCK

SN: 10001-UP

1шт.

32

42A-93-11251

PLATE¤ CAUTION,TRANSMISSION CONTROL LEVER

SN: 10001-UP

1шт.

33

42A-93-11240

PLATE¤ MARK,SYMBOL

SN: 10001-UP

1шт.
