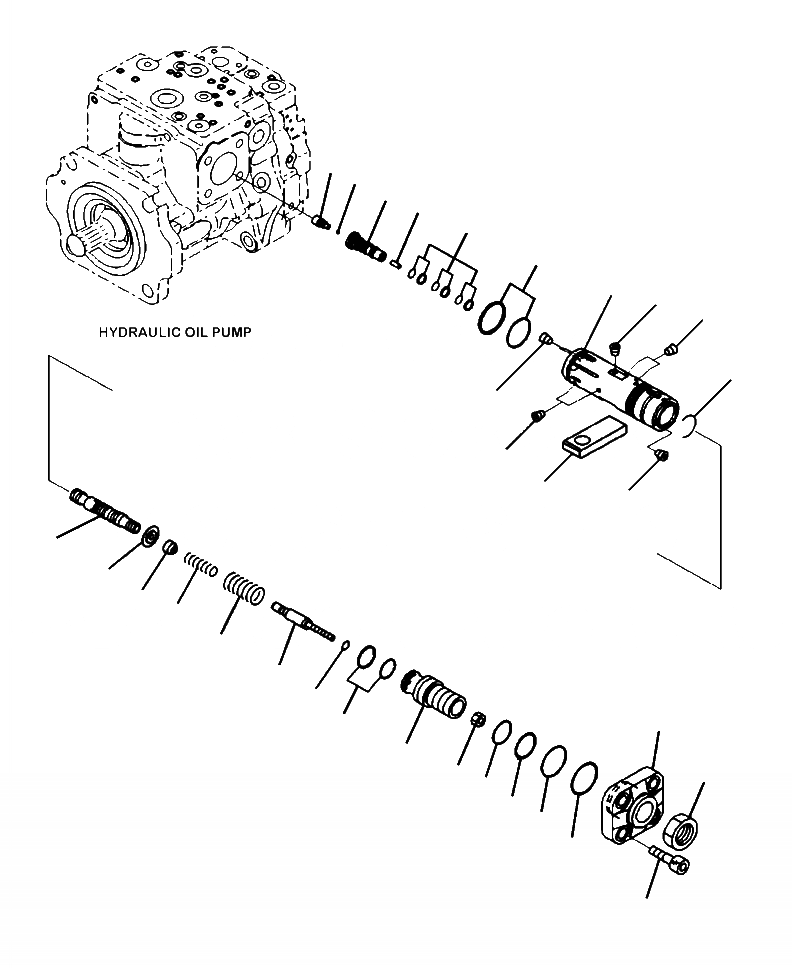

Запчасти Komatsu WA480-6 H-A ГИДР. НАСОС. ПОГРУЗ. НАСОС (/) ГИДРАВЛИКА

|$0

PUMP ASSEMBLY (SEE FIG. H0210-01A0)

SN: A47001--UP

-1шт.

|$1

PUMP SUBASSEMBLY (SEE FIG. H0210-01A0)

SN: A47001--UP

-1шт.

1

708-2G-14120

SLIDER

SN: A47001--UP

1шт.

|$3

708-2G-03540

VALVE ASSEMBLY

SN: A47001--UP

1шт.

|$4

708-2G-03590

PISTON ASSEMBLY, SERVO

SN: A47001--UP

1шт.

2

NSS

PISTON, SERVO

SN: A47001--UP

1шт.

3

NSS

SCREW

SN: A47001--UP

8шт.

4

708-2G-15320

SEAL

SN: A47001--UP

1шт.

5

708-2G-15221

PLUG

SN: A47001--UP

1шт.

6

708-2L-35760

BALL

SN: A47001--UP

1шт.

7

708-2L-35770

PLUG

SN: A47001--UP

1шт.

8

708-2L-35690

SEAL

SN: A47001--UP

3шт.

9

708-2L-35170

PIN

SN: A47001--UP

1шт.

10

708-2L-35860

SPOOL

SN: A47001--UP

1шт.

11

708-2G-15290

RETAINER

SN: A47001--UP

1шт.

12

708-2G-15140

SEAT

SN: A47001--UP

1шт.

13

708-2G-15180

SPRING

SN: A47001--UP

1шт.

14

708-2G-15270

SPRING

SN: A47001--UP

1шт.

15

708-2G-14340

SCREW

SN: A47001--UP

1шт.

16

07000-F3038

O-RING

SN: A47001--UP

1шт.

17

708-2G-15230

RING

SN: A47001--UP

1шт.

18

708-2G-15260

SEAL

SN: A47001--UP

1шт.

19

708-2G-15390

PLUG

SN: A47001--UP

1шт.

20

07000-F2012

O-RING

SN: A47001--UP

1шт.

21

07000-F2050

O-RING

SN: A47001--UP

1шт.

22

708-2G-15310

RING

SN: A47001--UP

1шт.

23

708-2G-14190

COVER

SN: A47001--UP

1шт.

24

01580-10806

NUT

SN: A47001--UP

1шт.

25

708-2L-35290

NUT

SN: A47001--UP

1шт.

26

708-2G-15330

RING

SN: A47001--UP

1шт.

27

01252-61645

BOLT

SN: A47001--UP

4шт.

|$31

31

-1шт.

|$32

F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY.

32

-1шт.
