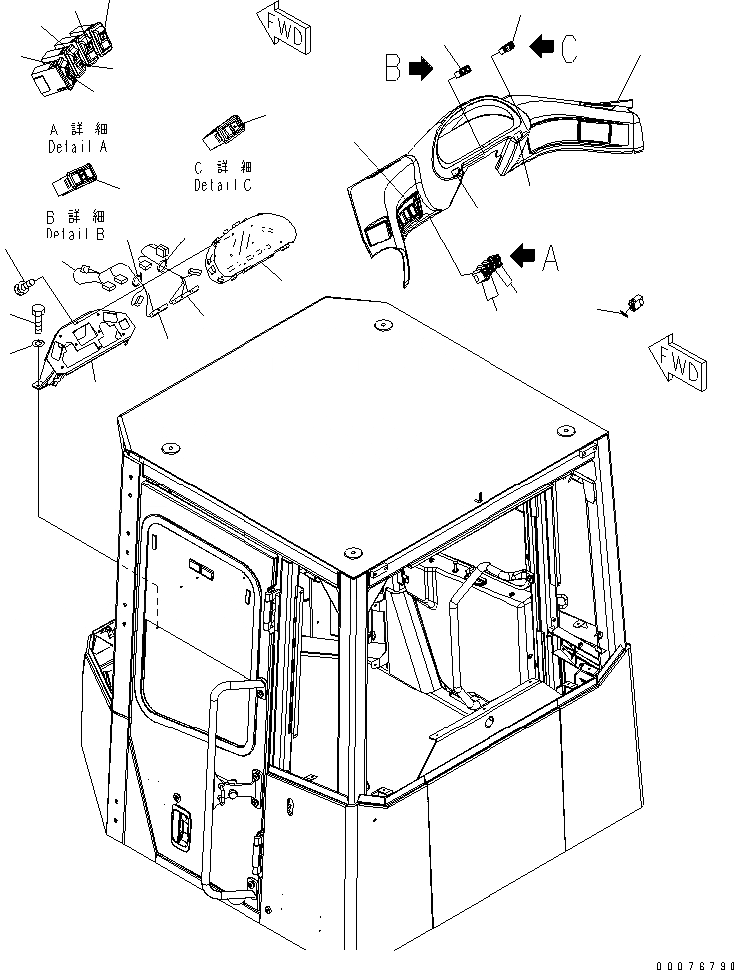

Запчасти Komatsu WA480-5L КАБИНА ROPS (ОСНОВН. МОНИТОР И ТАБЛИЧКИ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

7823-30-1105

MONITOR,MAIN

SN: A37001-UP

1шт.

|$1

7823-30-2106

MONITOR,MAIN (FOR LOAD METER)

SN: A37001-UP

1шт.

2

421-09-21460

SCREW

SN: A37001-UP

8шт.

3

424-06-31153

WIRING HARNESS

SN: A37001-UP

1шт.

4

935 522 C1

BAND

SN: A37001-UP

7шт.

5

424-06-31161

WIRING HARNESS

SN: A37001-UP

1шт.

6

935 522 C1

BAND

SN: A37001-UP

5шт.

7

421-06-36142

SWITCH

SN: A37001-UP

4шт.

|$8

421-06-36191

LAMP

SN: A37001-UP

1шт.

8

421-06-36172

SWITCH

SN: A37001-UP

2шт.

|$10

421-06-36191

LAMP

SN: A37001-UP

1шт.

9

424-926-3181

SUPPORT

SN: A37001-UP

1шт.

10

01010-80616

BOLT

SN: A37001-UP

4шт.

11

01643-30623

WASHER

SN: A37001-UP

4шт.

|$16

421-93-31214

PLATE, MARK

SN: A37001-UP

1шт.

12

0

PLATE, MARK,WORK LAMP, FRONT

SN: A37001-UP

1шт.

13

0

PLATE, MARK,WORK LAMP, REAR

SN: A37001-UP

1шт.

14

0

PLATE, MARK,TRANSMISSION CUT-OFF

SN: A37001-UP

1шт.

15

0

PLATE, MARK,DEFROSTER

SN: A37001-UP

1шт.

16

0

PLATE, MARK,E.C.S.S.

SN: A37001-UP

1шт.

17

0

PLATE, MARK,DISPLAY MODE SELECT SW1

SN: A37001-UP

1шт.

18

0

PLATE, MARK,DISPLAY MODE SELECT SW2

SN: A37001-UP

1шт.

19

0

PLATE, MARK,DISPLAY MODE FORWORD/REVERSE1

SN: A37001-UP

1шт.

20

0

PLATE, MARK,DISPLAY MODE FORWORD/REVERSE2

SN: A37001-UP

1шт.

|$26

421-93-A1360

PLATE, NAME

SN: A37001-UP

1шт.

21

0

PLATE, NAME,SWITCH

SN: A37001-UP

1шт.

22

0

PLATE, NAME,TRAVEL DAMPER

SN: A37001-UP

1шт.

23

0

PLATE, NAME,T/M CUT-OFF

SN: A37001-UP

1шт.

24

COVER,(SEE FIG. K0210-21A0)

SN: A37001-UP

-1шт.

25

421-06-A1581

WIRING HARNESS,(WITH FOURTH SPEED DISABLE)

SN: A37001-UP

1шт.
