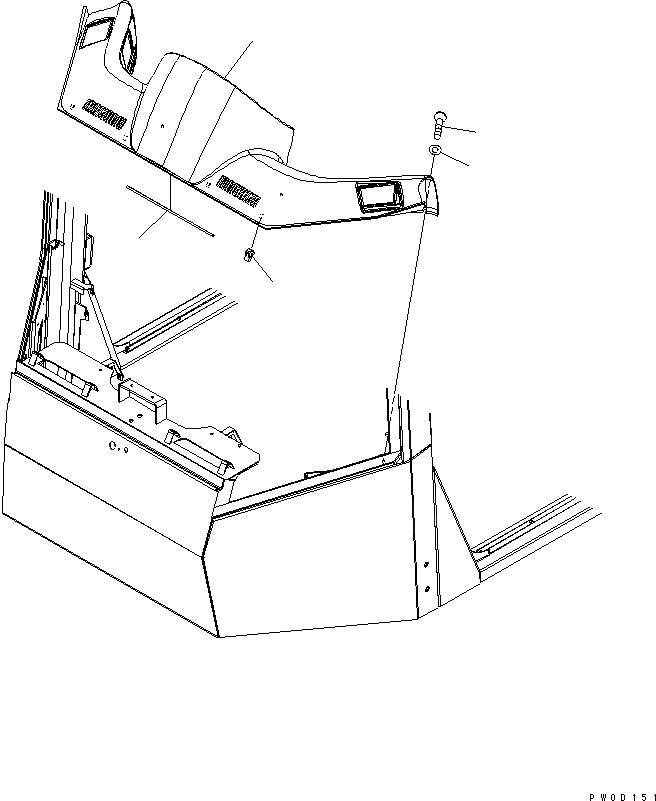

Запчасти Komatsu WA480-5 КАБИНА ROPS (КАБИНА ACCESARY) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

421-926-3041

ROPS CAB ASS'Y,(A+B+G)

SN: 80001-UP

1шт.

|1

421-926-3021

ROPS CAB ASS'Y,(A+B+C+E)

SN: 80001-UP

1шт.

|1

424-926-3080

ROPS CAB ASS'Y,(A+E+J)

SN: 80001-UP

1шт.

|1

421-925-3790

ROPS CAB ASS'Y,(B+C+L)

SN: 80001-UP

1шт.

|1

421-925-3810

ROPS CAB ASS'Y,(B+C+E+L)

SN: 80001-UP

1шт.

|1

421-925-3820

ROPS CAB ASS'Y,(C+J+L)

SN: 80001-UP

1шт.

|1

421-925-3830

ROPS CAB ASS'Y,(C+E+J+L)

SN: 80001-UP

1шт.

|1

421-925-3030

ROPS CAB ASS'Y,(A+F)

SN: 80001-UP

1шт.

|$$9

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.

-1шт.

|1

423-926-3030

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|$$11

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A2.

-1шт.

|1

421-926-3300

ROPS CAB ASS'Y,(A+J+C)

SN: 80001-UP

1шт.

|$$13

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A0.

-1шт.

|1

423-926-3070

ROPS CAB ASS'Y,(A+B+C+D)

SN: 80001-UP

1шт.

|1

423-926-3080

ROPS CAB ASS'Y,(A+B+C+D+E)

SN: 80001-UP

1шт.

|1

423-926-3090

ROPS CAB ASS'Y,(A+C+D+J)

SN: 80001-UP

1шт.

|1

424-926-3900

ROPS CAB ASS'Y,(A+B+C+D+F)

SN: 80001-UP

1шт.

|1

423-926-3050

ROPS CAB ASS'Y,(A+B+C+D+E+F)

SN: 80001-UP

1шт.

|1

421-925-3080

ROPS CAB ASS'Y,(A+C+D+F+J)

SN: 80001-UP

1шт.

|1

421-925-3090

ROPS CAB ASS'Y,(C+D+F+J+K)

SN: 80001-UP

1шт.

|$$21

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A4.

-1шт.

|1

423-926-3400

ROPS CAB ASS'Y,(B+C+D+H)

SN: 80001-UP

1шт.

|$$23

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25B6.

-1шт.

|$$24

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|$$25

A = AIR CONDITIONER

-1шт.

|$$26

B = AM¤FM RADIO

-1шт.

|$$27

C = E.C.S.S

-1шт.

|$$28

D = KOMTRAX

-1шт.

|$$29

E = LOAD METER

-1шт.

|$$30

F = YELLOW LAMP

-1шт.

|$$31

G = HEAT GLASS

-1шт.

|$$32

H = A/C SIDE BLOW

-1шт.

|$$33

J = RADIO¤ CASSETTE

-1шт.

|$$34

K = AUTO AIR CONDIT.

-1шт.

|$$35

L = HEATER

-1шт.

1

421-926-3523

COVER,FRONT

SN: 80001-UP

1шт.

2

423-54-32920

CLIP

SN: 80001-UP

4шт.

3

23S-55-51970

WASHER

SN: 80001-UP

4шт.

4

01225-70620

SCREW

SN: 80001-UP

4шт.

5

421-925-3170

CUSHION

SN: 80001-UP

1шт.
