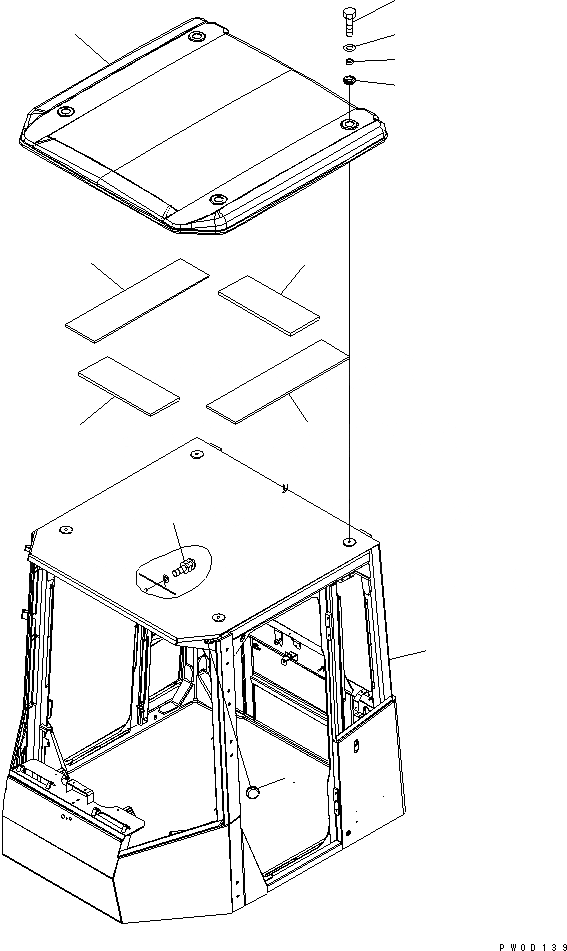

Запчасти Komatsu WA480-5 КАБИНА ROPS (КРЫША) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

421-926-3041

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

421-926-3021

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

424-926-3080

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

424-926-3400

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

424-926-3500

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

424-926-3600

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

421-925-3790

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

421-925-3810

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

421-925-3820

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

421-925-3830

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|1

421-925-3030

ROPS CAB ASS'Y

SN: 80001-UP

1шт.

|$$12

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.

-1шт.

|1

423-926-3030

ROPS CAB ASS'Y,(A+B+C+E)

SN: 80001-UP

1шт.

|$$14

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A2.

-1шт.

|1

421-926-3300

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|$$16

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A0.

-1шт.

|1

423-926-3070

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

423-926-3080

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

423-926-3090

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

424-926-3090

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

424-926-3100

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

424-926-3200

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

424-926-3900

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

423-926-3050

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

421-925-3080

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

421-925-3090

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|$$27

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A4.

-1шт.

|1

423-926-3400

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|1

424-926-3300

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|$$30

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25B6.

-1шт.

|1

424-926-3700

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|$$32

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25C5.

-1шт.

|$$33

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|$$34

A = AIR CONDITIONER

-1шт.

|$$35

B = AM¤FM RADIO

-1шт.

|$$36

C = E.C.S.S

-1шт.

|$$37

D = KOMTRAX

-1шт.

|$$38

E = LOAD METER

-1шт.

|$$39

F = YELLOW LAMP

-1шт.

|$$40

G = HEAT GLASS

-1шт.

|$$41

H = A/C SIDE BLOW

-1шт.

|$$42

J = RADIO¤ CASSETTE

-1шт.

|$$43

K = AUTO AIR CONDIT.

-1шт.

|$$44

L = HEATER

-1шт.

1

421-926-3512

ROOF

SN: 80001-UP

1шт.

2

01010-81640

BOLT

SN: 80001-UP

4шт.

3

424-926-3390

WASHER

SN: 80001-UP

4шт.

4

424-926-3380

SPACER

SN: 80001-UP

4шт.

5

08037-03614

GROMMET

SN: 80001-UP

4шт.

6

423-926-3880

SHEET

SN: 80001-UP

2шт.

7

423-926-3761

SHEET

SN: 80001-UP

2шт.

8

09415-01008

CAP

SN: 80001-UP

1шт.

9

01023-60612

SCREW

SN: 80001-UP

1шт.

10

0

ROPS CAB

SN: 80001-UP

1шт.
