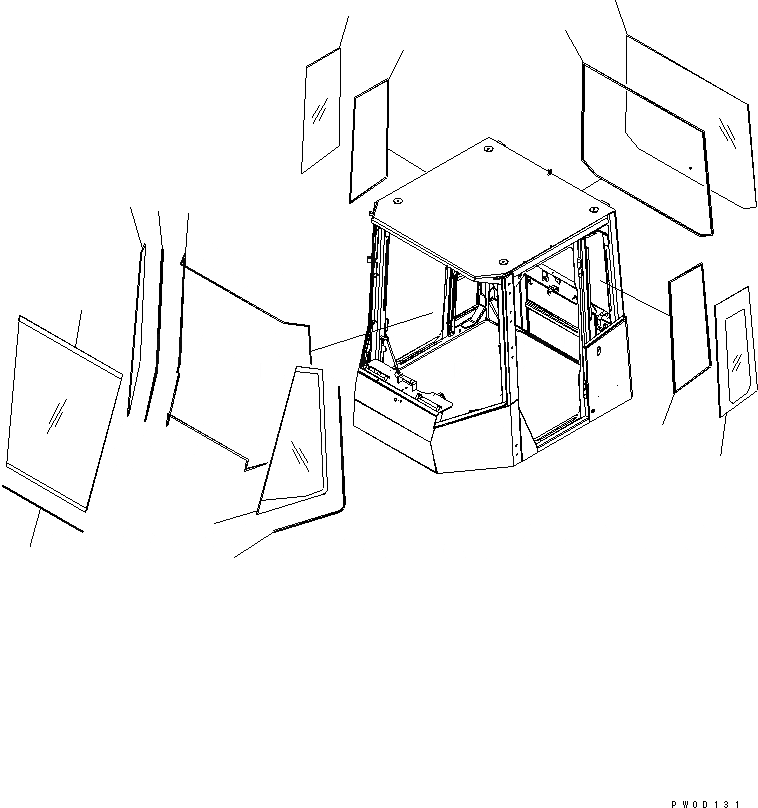

Запчасти Komatsu WA480-5 КАБИНА ROPS (ОКОНН. СТЕКЛА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

421-926-3041

ROPS CAB ASS'Y,(A+B+G)

SN: 80001-UP

1шт.

|1

421-926-3021

ROPS CAB ASS'Y,(A+B+C+E)

SN: 80001-UP

1шт.

|1

424-926-3080

ROPS CAB ASS'Y,(A+E+J)

SN: 80001-UP

1шт.

|1

424-926-3400

ROPS CAB ASS'Y,(B+C+K)

SN: 80001-UP

1шт.

|1

424-926-3500

ROPS CAB ASS'Y,(B+C+E+K)

SN: 80001-UP

1шт.

|1

424-926-3600

ROPS CAB ASS'Y,(C+J+K)

SN: 80001-UP

1шт.

|1

421-925-3790

ROPS CAB ASS'Y,(B+C+L)

SN: 80001-UP

1шт.

|1

421-925-3810

ROPS CAB ASS'Y,(B+C+E+L)

SN: 80001-UP

1шт.

|1

421-925-3820

ROPS CAB ASS'Y,(C+J+L)

SN: 80001-UP

1шт.

|1

421-925-3830

ROPS CAB ASS'Y,(C+E+J+L)

SN: 80001-UP

1шт.

|1

421-925-3030

ROPS CAB ASS'Y,(A+F)

SN: 80001-UP

1шт.

|$$12

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.

-1шт.

|1

423-926-3030

ROPS CAB ASS'Y,(A)

SN: 80001-UP

1шт.

|$$14

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A2.

-1шт.

|1

421-926-3300

ROPS CAB ASS'Y,(A+J+C)

SN: 80001-UP

1шт.

|$$16

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A0.

-1шт.

|1

423-926-3070

ROPS CAB ASS'Y,(A+B+C+D)

SN: 80001-UP

1шт.

|1

423-926-3080

ROPS CAB ASS'Y,(A+B+C+D+E)

SN: 80001-UP

1шт.

|1

423-926-3090

ROPS CAB ASS'Y,(A+C+D+J)

SN: 80001-UP

1шт.

|1

424-926-3090

ROPS CAB ASS'Y,(B+C+D+K)

SN: 80001-UP

1шт.

|1

424-926-3100

ROPS CAB ASS'Y,(B+C+D+E+K)

SN: 80001-UP

1шт.

|1

424-926-3200

ROPS CAB ASS'Y,(C+D+J+K)

SN: 80001-UP

1шт.

|1

424-926-3900

ROPS CAB ASS'Y,(A+B+C+D+F)

SN: 80001-UP

1шт.

|1

423-926-3050

ROPS CAB ASS'Y,(A+B+C+D+E+F)

SN: 80001-UP

1шт.

|1

421-925-3080

ROPS CAB ASS'Y,(A+C+D+F+J)

SN: 80001-UP

1шт.

|1

421-925-3090

ROPS CAB ASS'Y,(C+D+F+J+K)

SN: 80001-UP

1шт.

|$$27

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A4.

-1шт.

|1

423-926-3400

ROPS CAB ASS'Y,(B+C+D+H)

SN: 80001-UP

1шт.

|1

424-926-3300

ROPS CAB ASS'Y,(B+C+D+H+K)

SN: 80001-UP

1шт.

|$$30

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25B6.

-1шт.

|1

424-926-3700

ROPS CAB ASS'Y,(B+C+H+K)

SN: 80001-UP

1шт.

|$$32

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25C5.

-1шт.

|$$33

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|$$34

A = AIR CONDITIONER

-1шт.

|$$35

B = AM¤FM RADIO

-1шт.

|$$36

C = E.C.S.S

-1шт.

|$$37

D = KOMTRAX

-1шт.

|$$38

E = LOAD METER

-1шт.

|$$39

F = YELLOW LAMP

-1шт.

|$$40

G = HEAT GLASS

-1шт.

|$$41

H = A/C SIDE BLOW

-1шт.

|$$42

J = RADIO¤ CASSETTE

-1шт.

|$$43

K = AUTO AIR CONDIT.

-1шт.

|$$44

L = HEATER

-1шт.

1

421-926-3541

GLASS,CENTER

SN: 80001-UP

1шт.

2

421-926-3551

GLASS,L.H.

SN: 80001-UP

1шт.

3

421-926-3561

GLASS,R.H.

SN: 80001-UP

1шт.

4

423-926-3730

DAM,FRONT

SN: 80001-UP

1шт.

5

423-926-3551

WEATHER STRIP

SN: 80001-UP

2шт.

6

424-926-3120

WEATHER STRIP

SN: 80001-UP

1шт.

7

421-926-3571

GLASS,REAR

SN: 80001-UP

1шт.

8

423-926-3740

DAM,REAR

SN: 80001-UP

1шт.

9

421-926-3581

GLASS,L.H. SIDE

SN: 80001-UP

1шт.

10

421-926-3591

GLASS,R.H. SIDE

SN: 80001-UP

1шт.

11

423-926-3750

DAM,REAR SIDE

SN: 80001-UP

2шт.
