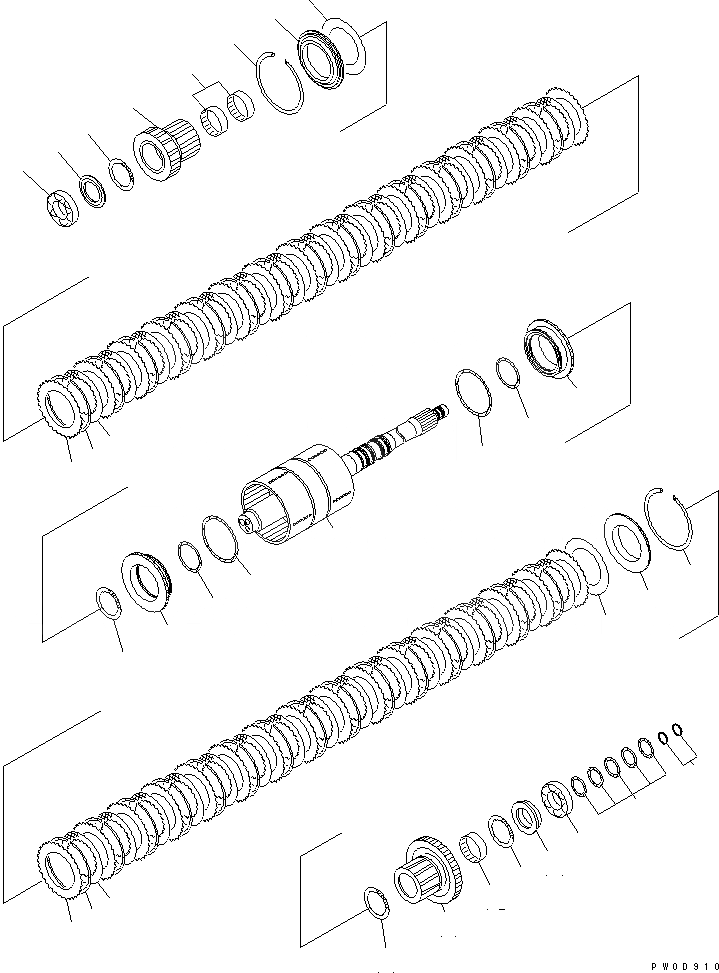

Запчасти Komatsu WA480-5 ТРАНСМИССИЯ (МУФТА ВПЕРЕД/РЕВЕРС) (С БЛОКИР.UP) СИЛОВАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$4

714-07-20014

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (111869)-UP

1шт.

|$5

714-07-20012

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (111067)-(111868)

1шт.

|$6

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: 80001-(111066)

1шт.

|$7

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (80001-(110482))

1шт.

|$$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.

-1шт.

|$12

714-07-22050

CLUTCH ASS'Y,FOWARD AND REVERSE

SN: 80001-UP

1шт.

1

714-07-22151

SHAFT AND CYLINDER A,FOWARD AND REVERSE

SN: 80001-UP

1шт.

2

714-07-22652

PISTON,FOWARD AND REVERSE

SN: 80001-UP

2шт.

3

714-07-29720

DISC

SN: (10047)-UP

30шт.

3

714-07-29710

DISC

SN: 80001-(10046)

30шт.

4

714-16-19730

PLATE,SEPARATE

SN: 80001-UP

32шт.

5

56D-15-12710

SPRING,WAVE

SN: (110483)-UP

30шт.

5

0

SPRING,WAVE

SN: 80001-(110482)

30шт.

6

714-07-22720

PLATE

SN: 80001-UP

2шт.

7

714-07-22610

PLATE,END

SN: 80001-UP

2шт.

8

419-15-12140

RING,SNAP

SN: 80001-UP

2шт.

9

714-11-19230

RING,SEAL (K1)

SN: 80001-UP

2шт.

10

714-16-19210

RING,SEAL (K1)

SN: 80001-UP

2шт.

11

714-08-19570

WASHER,THRUST

SN: 80001-UP

4шт.

12

714-23-19430

BEARING,NEEDLE

SN: 80001-UP

3шт.

13

714-11-12720

SPACER

SN: 80001-UP

1шт.

14

714-07-22711

SPACER

SN: 80001-UP

1шт.

15

419-15-12591

BEARING

SN: 80001-UP

1шт.

16

714-07-29320

BEARING

SN: 80001-UP

1шт.

17

714-07-22422

GEAR,FOWARD

SN: 80001-UP

1шт.

18

714-07-22412

GEAR,REVERSE

SN: 80001-UP

1шт.

19

714-19-19210

RING,SEAL (K1)

SN: 80001-UP

5шт.

20

714-21-19810

RING,SEAL (K1)

SN: 80001-UP

2шт.
