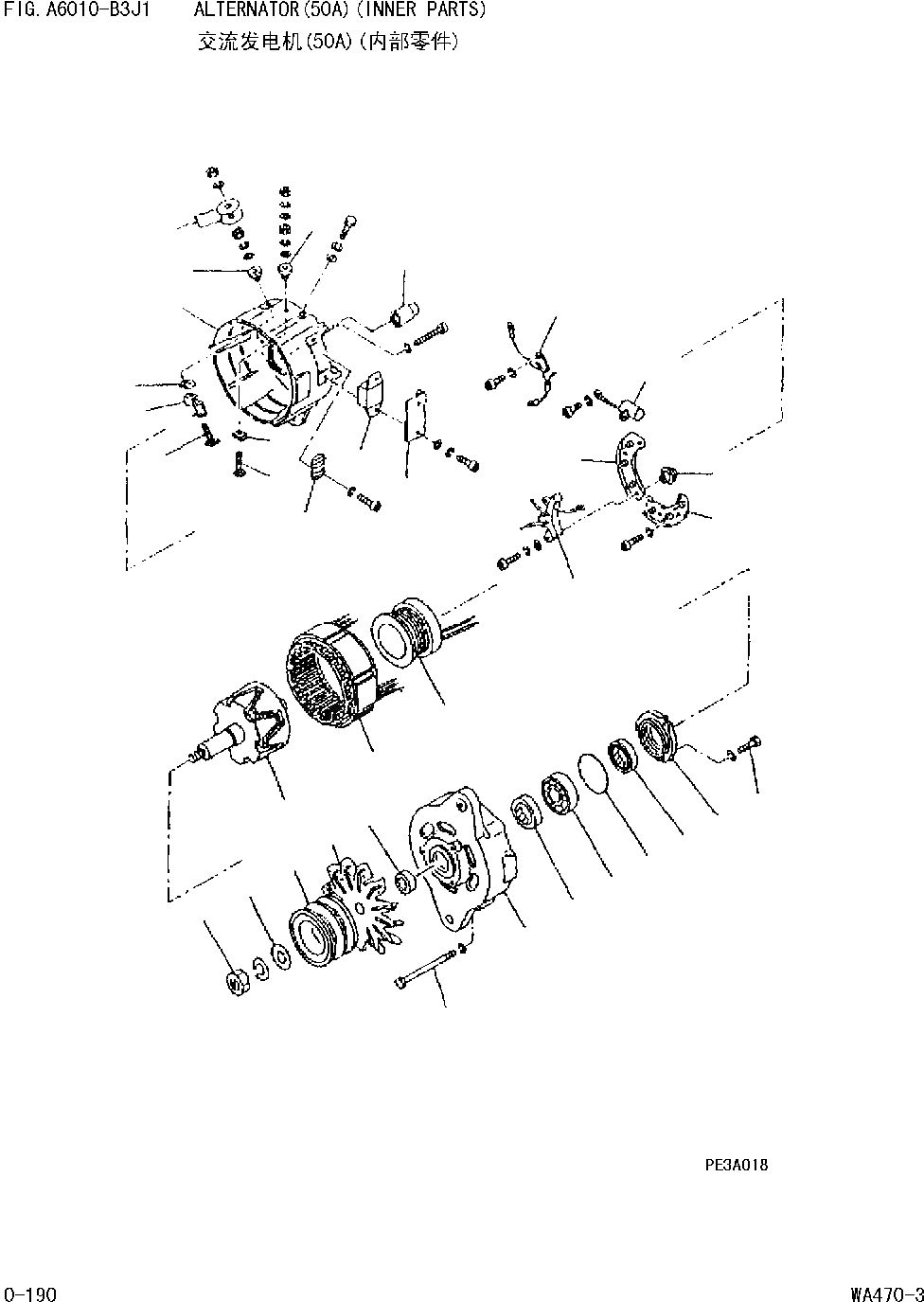

Запчасти Komatsu WA470-DZ-3 ГЕНЕРАТОР(A)(ВНУТР. ЧАСТИ)(№89-№) [ДВИГАТЕЛЬ SADE- ДВИГАТЕЛЬ NO.7 И UP]

1\A\

X16-0354080

ALTERNATOR UNIT(50A)

Field_2: 61589-63561

1шт.

|$2

600-821-9680

ALTERNATOR A(50A)

Field_2: 61589-63561

1шт.

|$1

-1шт.

|$4

THE SAWAFUJI DENKI PART NUMBER IS THAT SD IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW

-1шт.

|$1

-1шт.

1

SD1211-46000X0

STATOR ASS'Y

Field_2: 61589-63561

1шт.

|$7

SD1230-19400X0

REAR BRACKET ASS'Y

Field_2: 61589-63561

1шт.

2

SD2240-20610X0

BRACKET,REAR

Field_2: 61589-63561

1шт.

3

SD1235-07900X0

HEAT SINK ASS'Y(+)

Field_2: 61589-63561

1шт.

4

SD1235-08000X0

HEAT SINK ASS'Y(-)

Field_2: 61589-63561

1шт.

5

SD8140-0603510

BOLT

Field_2: 61589-63561

1шт.

6

SD3220-40000X0

SUPPORT

Field_2: 61589-63561

1шт.

7

SD4215-00701X0

INSULATOR

Field_2: 61589-63561

1шт.

8

SD4041-05710X0

BUSHING

Field_2: 61589-63561

1шт.

9

SD5030-05200X0

WASHER

Field_2: 61589-63561

2шт.

10

SD8140-0503010

BOLT

Field_2: 61589-63561

1шт.

11

SD4215-00800X0

INSULATOR

Field_2: 61589-63561

1шт.

12

SD4041-05700X0

BUSHING

Field_2: 61589-63561

1шт.

13

SD6060-11920X0

CONDENSER

Field_2: 61589-63561

1шт.

14

SD1235-007601X0

RESISTOR ASS'Y

Field_2: 61589-63561

1шт.

15

SD1239-03600X0

CONNECOR ASS'Y

Field_2: 61589-63561

1шт.

16

SD4041-03700X0

BUSHING

Field_2: 61589-63561

2шт.

17

SD1239-04310X0

CHARGE LAMP ASS'Y

Field_2: 61589-63561

1шт.

18

SD6206-00200X0

BEARING,ROLLER

Field_2: 61589-63561

1шт.

19

SD1291-00300X0

REGULATOR,IC

Field_2: 61589-63561

1шт.

20

SD3221-23220X0

COVER

Field_2: 61589-63561

1шт.

21

SD1251-00600X0

COIL ASS'Y

Field_2: 61589-63561

1шт.

22

SD1221-16700X0

ROTOR ASS'Y

Field_2: 61589-63561

1шт.

|$29

SD1240-074000X0

FRONT BRACKET ASS'Y

Field_2: 61589-63561

1шт.

23

SD2242-09010X0

BRACKET,FRONT

Field_2: 61589-63561

1шт.

24

SD6410-02000X0

SEAL,OIL

Field_2: 61589-63561

2шт.

25

SD6206-00320X0

BEARING,BALL

Field_2: 61589-63561

1шт.

26

SD4142-00900X0

O-RING

Field_2: 61589-63561

1шт.

27

SD2202-02200X0

COVER,BEARING

Field_2: 61589-63561

1шт.

28

SD5010-21500X0

BOLT

Field_2: 61589-63561

3шт.

29

SD5010-04300X0

BOLT

Field_2: 61589-63561

3шт.

30

SD3600-17300X0

COLLAR

Field_2: 61589-63561

1шт.

31

SD3448-00440X0

FAN

Field_2: 61589-63561

1шт.

32

SD2080-22400X0

PULLEY,NON HARDENING

Field_2: 61589-63561

1шт.

33

SD3000-07800X0

WASHER

Field_2: 61589-63561

1шт.

34

SD8264-1830010

NUT

Field_2: 61589-63561

1шт.
