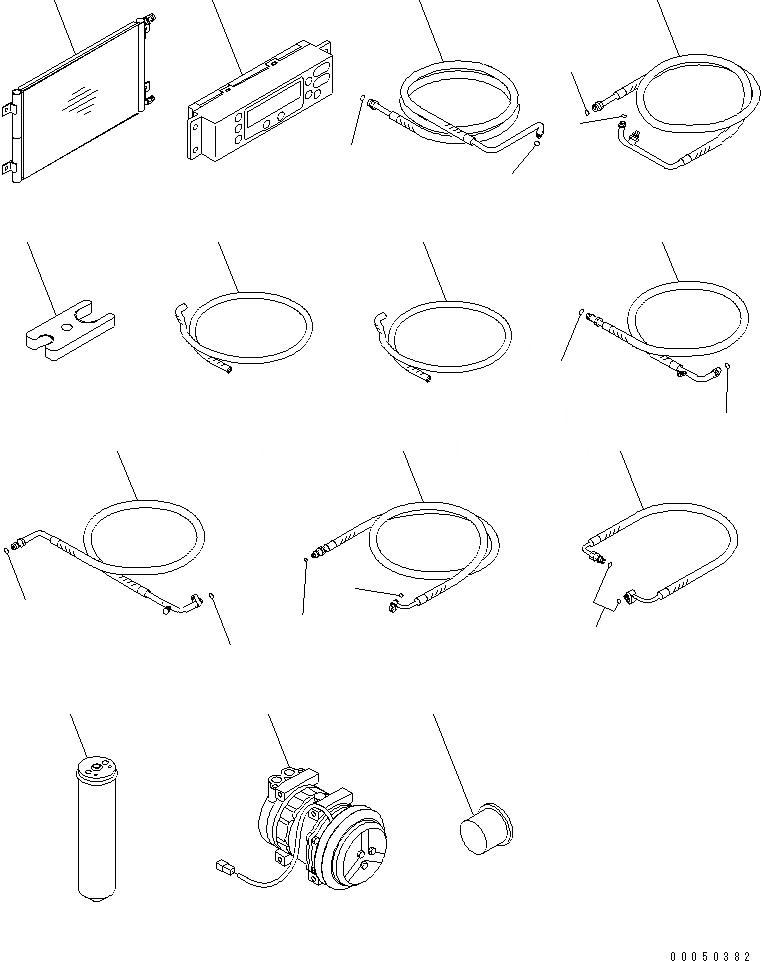

Запчасти Komatsu WA470-6 PACKAGE ЧАСТИ(№8-9) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

421-S62-4120

CONDENSER,(SEE FIG. C0110-11A0)

SN: 85001-90000

1шт.

2

423-07-31563

CONTROL PANEL A.,(SEE FIG. K0210-20A0)

SN: 85416-90000

1шт.

2

423-07-31562

CONTROL PANEL A.,(SEE FIG. K0210-20A0)

SN: 85001-85415

1шт.

3

423-S62-4171

HOSE,(SEE FIG. K0210-37A0)

SN: 85001-90000

1шт.

4

AN51439-D0051

O-RING,(SEE FIG. K0210-37A0)

SN: 85001-90000

2шт.

5

423-S62-4161

HOSE,(SEE FIG. K0210-37A0)

SN: 85001-90000

1шт.

6

AN51439-D0031

O-RING,(SEE FIG. K0210-37A0)

SN: 85001-90000

2шт.

7

423-S62-3370

PLATE,(SEE FIG. K0210-37A0)

SN: 85001-90000

1шт.

8

423-07-31340

HOSE,(SEE FIG. K0210-37A0)

SN: 85001-90000

1шт.

9

423-07-31350

HOSE,(SEE FIG. K0210-37A0)

SN: 85001-90000

1шт.

10

421-S62-4140

HOSE, 2800MM,(SEE FIG. K0711-03A0)

SN: 85001-90000

1шт.

11

AN51439-D0051

O-RING,(SEE FIG. K0711-03A0)

SN: 85001-90000

2шт.

12

421-S62-4150

HOSE,(SEE FIG. K0711-02A0)

SN: 85001-90000

1шт.

13

AN51439-D0041

O-RING,(SEE FIG. K0711-02A0)

SN: 85001-90000

2шт.

14

421-S62-4170

HOSE, 3590MM,(SEE FIG. K0711-03A0)

SN: 85001-90000

1шт.

15

AN51439-D0031

O-RING,(SEE FIG. K0711-03A0)

SN: 85001-90000

2шт.

16

421-S62-4160

HOSE,(SEE FIG. C0110-11A0)

SN: 85001-90000

1шт.

17

AN51439-D0031

O-RING,(SEE FIG. C0110-11A0)

SN: 85001-90000

2шт.

18

423-07-31571

RECEIVER DRYER,(SEE FIG. K0711-02A0)

SN: 85001-90000

1шт.

19

423-S62-4330

COMPRESSOR ASS'Y,(SEE FIG. K0711-01A0)

SN: 85001-90000

1шт.

20

AN51436-10320

CAP,(SEE FIG. K0210-15A0)

SN: 85001-90000

1шт.
