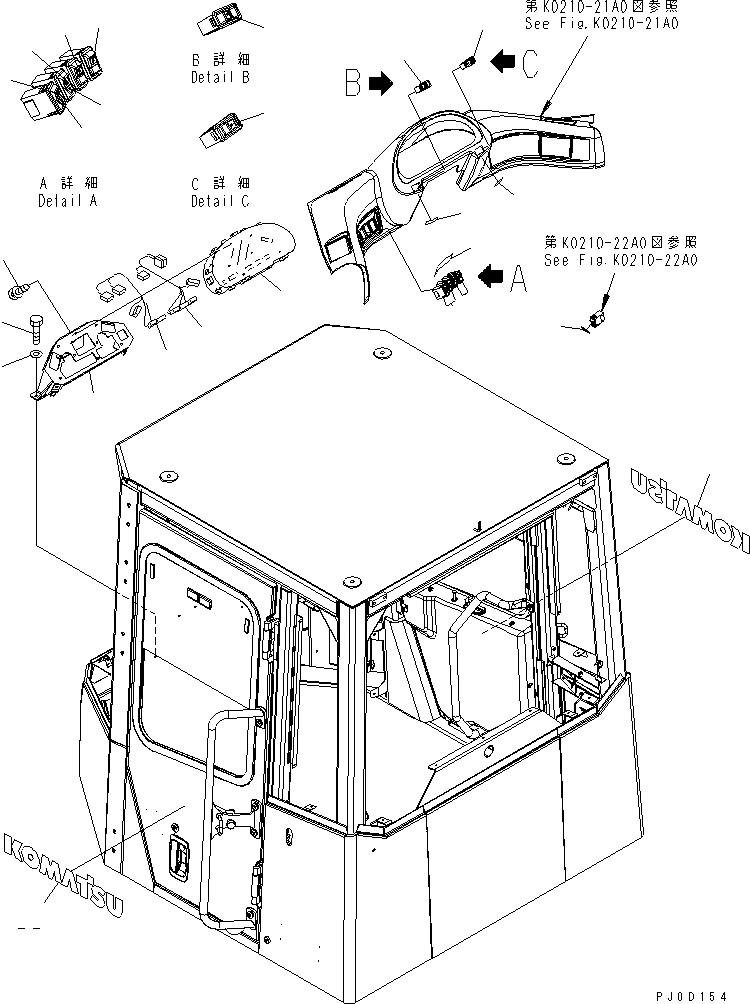

Запчасти Komatsu WA470-5 КАБИНА ROPS (ОСНОВН. МОНИТОР И ТАБЛИЧКИ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

421-926-3041

ROPS CAB ASS'Y,(A+B+G)

SN: 70001-UP

1шт.

|1

424-926-3400

ROPS CAB ASS'Y,(B+C+K)

SN: 70001-UP

1шт.

|1

424-926-3600

ROPS CAB ASS'Y,(C+J+K)

SN: 70001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.

-1шт.

|1

421-926-3300

ROPS CAB ASS'Y,(A+J+C)

SN: 70001-UP

1шт.

|$$6

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A0.

-1шт.

|1

423-926-3070

ROPS CAB ASS'Y,(A+B+C+D)

SN: 70001-UP

1шт.

|1

423-926-3090

ROPS CAB ASS'Y,(A+C+D+J)

SN: 70001-UP

1шт.

|1

424-926-3090

ROPS CAB ASS'Y,(B+C+D+K)

SN: 70001-UP

1шт.

|1

424-926-3200

ROPS CAB ASS'Y,(C+D+J+K)

SN: 70001-UP

1шт.

|1

424-926-3900

ROPS CAB ASS'Y,(A+B+C+D+F)

SN: 70001-UP

1шт.

|1

421-925-3080

ROPS CAB ASS'Y,(A+C+D+F+J)

SN: 70001-UP

1шт.

|1

421-925-3090

ROPS CAB ASS'Y,(C+D+F+J+K)

SN: 70001-UP

1шт.

|$$14

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A4.

-1шт.

|1

423-926-3400

ROPS CAB ASS'Y,(B+C+D+H)

SN: 70001-UP

1шт.

|1

424-926-3300

ROPS CAB ASS'Y,(B+C+D+H+K)

SN: 70001-UP

1шт.

|$$17

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25B6.

-1шт.

|1

424-926-3700

ROPS CAB ASS'Y,(B+C+H+K)

SN: 70001-UP

1шт.

|$$19

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25C5.

-1шт.

|$$20

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|$$21

A = AIR CONDITIONER

-1шт.

|$$22

B = AM¤FM RADIO

-1шт.

|$$23

C = E.C.S.S

-1шт.

|$$24

D = KOMTRAX

-1шт.

|$$25

F = YELLOW LAMP

-1шт.

|$$26

G = HEAT GLASS

-1шт.

|$$27

H = A/C SIDE BLOW

-1шт.

|$$28

J = RADIO¤ CASSETTE

-1шт.

|$$29

K = AUTO AIR CONDIT.

-1шт.

1

7823-30-1104

MONITOR,MAIN

SN: 70173-UP

1шт.

|1

0

MONITOR,MAIN

SN: 70074-70172

1шт.

|1

0

MONITOR,MAIN

SN: 70001-70073

1шт.

2

01023-20616

SCREW

SN: 70001-UP

8шт.

3

424-06-31153

WIRING HARNESS

SN: 70074-UP

1шт.

|3

424-06-31152

WIRING HARNESS

SN: 70001-70073

1шт.

4

424-06-31161

WIRING HARNESS

SN: 70001-UP

1шт.

5

421-06-36141

SWITCH

SN: 70001-UP

4шт.

|5

08192-26810

CONNECTOR

SN: 70001-UP

4шт.

|5

421-06-36190

LAMP

SN: 70001-UP

1шт.

6

421-06-36171

SWITCH

SN: 70001-UP

2шт.

|6

08192-26810

CONNECTOR

SN: 70001-UP

2шт.

|6

421-06-36190

LAMP

SN: 70001-UP

1шт.

7

424-926-3181

SUPPORT

SN: 70001-UP

1шт.

8

01010-80616

BOLT

SN: 70001-UP

4шт.

9

01643-30623

WASHER

SN: 70001-UP

4шт.

|10

421-93-31214

PLATE¤ MARK

SN: 70001-UP

1шт.

10

0

PLATE¤ MARK,WORK LAMP¤ FRONT

SN: 70001-UP

1шт.

11

0

PLATE¤ MARK,WORK LAMP¤ REAR

SN: 70001-UP

1шт.

12

0

PLATE¤ MARK,TRANSMISSION CUT OFF

SN: 70001-UP

1шт.

13

0

PLATE¤ MARK,DEFROSTER

SN: 70001-UP

1шт.

14

0

PLATE¤ MARK,E.C.S.S.

SN: 70001-UP

1шт.

15

0

PLATE¤ MARK,DISPLAY MODE SELECT SW1

SN: 70001-UP

1шт.

16

0

PLATE¤ MARK,DISPLAY MODE SELECT SW2

SN: 70001-UP

1шт.

17

0

PLATE¤ MARK,DISPLAY MODE FORWORD/REVERSE1

SN: 70001-UP

1шт.

18

0

PLATE¤ MARK,DISPLAY MODE FORWORD/REVERSE2

SN: 70001-UP

1шт.

|19

421-93-23210

PLATE¤ NAME

SN: 70001-UP

1шт.

19

0

PLATE¤ NAME,SWITCH

SN: 70001-UP

1шт.

20

0

PLATE¤ NAME,TRAVEL DAMPER

SN: 70001-UP

1шт.

21

0

PLATE¤ NAME,T/M CUT OFF

SN: 70001-UP

1шт.

22

09690-P0500

PLATE¤ MARK,KOMATSU

SN: 70001-UP

2шт.
