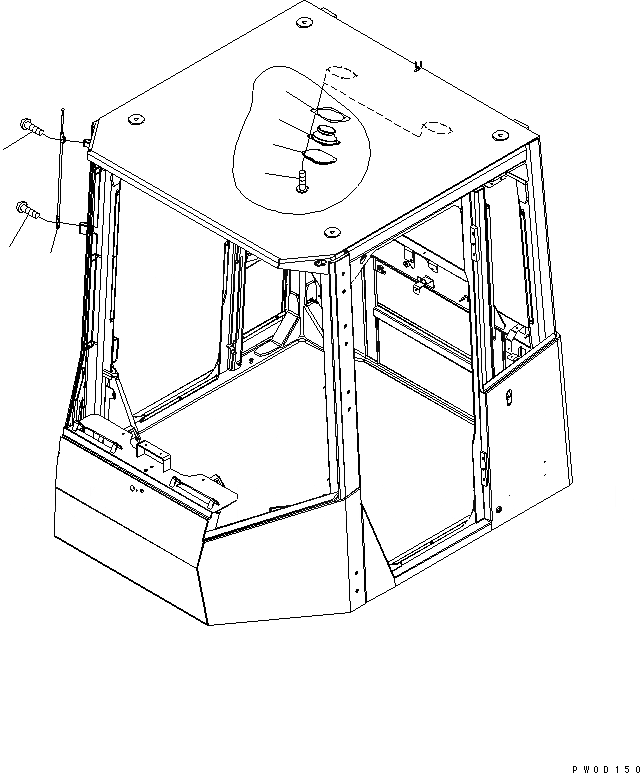

Запчасти Komatsu WA470-5 КАБИНА ROPS (АНТЕННА И ГРОМКОГОВОРИТ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

421-926-3041

ROPS CAB ASS'Y,(A+B+G)

SN: 70001-UP

1шт.

|1

421-926-3021

ROPS CAB ASS'Y,(A+B+C+E)

SN: 70001-UP

1шт.

|1

424-926-3080

ROPS CAB ASS'Y,(A+E+J)

SN: 70001-UP

1шт.

|1

424-926-3400

ROPS CAB ASS'Y,(B+C+K)

SN: 70001-UP

1шт.

|1

424-926-3500

ROPS CAB ASS'Y,(B+C+E+K)

SN: 70001-UP

1шт.

|1

424-926-3600

ROPS CAB ASS'Y,(C+J+K)

SN: 70001-UP

1шт.

|1

421-925-3790

ROPS CAB ASS'Y,(B+C+L)

SN: 70001-UP

1шт.

|1

421-925-3810

ROPS CAB ASS'Y,(B+C+E+L)

SN: 70001-UP

1шт.

|1

421-925-3820

ROPS CAB ASS'Y,(C+J+L)

SN: 70001-UP

1шт.

|1

421-925-3830

ROPS CAB ASS'Y,(C+E+J+L)

SN: 70001-UP

1шт.

|$$11

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.

-1шт.

|1

423-926-3060

ROPS CAB ASS'Y

SN: 70001-UP

1шт.

|$$13

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A0.

-1шт.

|1

423-926-3070

ROPS CAB ASS'Y,(A+B+C+D)

SN: 70001-UP

1шт.

|1

423-926-3080

ROPS CAB ASS'Y,(A+B+C+D+E)

SN: 70001-UP

1шт.

|1

423-926-3090

ROPS CAB ASS'Y,(A+C+D+J)

SN: 70001-UP

1шт.

|1

424-926-3090

ROPS CAB ASS'Y,(B+C+D+K)

SN: 70001-UP

1шт.

|1

424-926-3100

ROPS CAB ASS'Y,(B+C+D+E+K)

SN: 70001-UP

1шт.

|1

424-926-3200

ROPS CAB ASS'Y,(C+D+J+K)

SN: 70001-UP

1шт.

|1

424-926-3900

ROPS CAB ASS'Y,(A+B+C+D+F)

SN: 70001-UP

1шт.

|1

423-926-3050

ROPS CAB ASS'Y,(A+B+C+D+E+F)

SN: 70001-UP

1шт.

|1

421-925-3080

ROPS CAB ASS'Y,(A+C+D+F+J)

SN: 70001-UP

1шт.

|1

421-925-3090

ROPS CAB ASS'Y,(C+D+F+J+K)

SN: 70001-UP

1шт.

|$$24

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A4.

-1шт.

|1

423-926-3400

ROPS CAB ASS'Y,(B+C+D+H)

SN: 70001-UP

1шт.

|1

424-926-3300

ROPS CAB ASS'Y,(B+C+D+H+K)

SN: 70001-UP

1шт.

|$$27

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25B6.

-1шт.

|1

424-926-3700

ROPS CAB ASS'Y,(B+C+H+K)

SN: 70001-UP

1шт.

|$$29

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25C5.

-1шт.

|$$30

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|$$31

A = AIR CONDITIONER

-1шт.

|$$32

B = AM¤FM RADIO

-1шт.

|$$33

C = E.C.S.S

-1шт.

|$$34

D = KOMTRAX

-1шт.

|$$35

E = LOAD METER

-1шт.

|$$36

F = YELLOW LAMP

-1шт.

|$$37

G = HEAT GLASS

-1шт.

|$$38

H = A/C SIDE BLOW

-1шт.

|$$39

J = RADIO¤ CASSETTE

-1шт.

|$$40

K = AUTO AIR CONDIT.

-1шт.

|$$41

L = HEATER

-1шт.

1

421-56-21670

ANTENNA

SN: 70001-UP

1шт.

2

01220-70412

SCREW

SN: 70001-UP

1шт.

3

419-923-2140

SCREW

SN: 70001-UP

1шт.

4

421-06-26310

SPEAKER

SN: 70001-UP

2шт.

5

418-967-2150

COVER,SPEAKER

SN: 70001-UP

2шт.

6

418-967-2230

PLATE

SN: 70001-UP

2шт.

7

01220-40420

SCREW

SN: 70001-UP

8шт.
