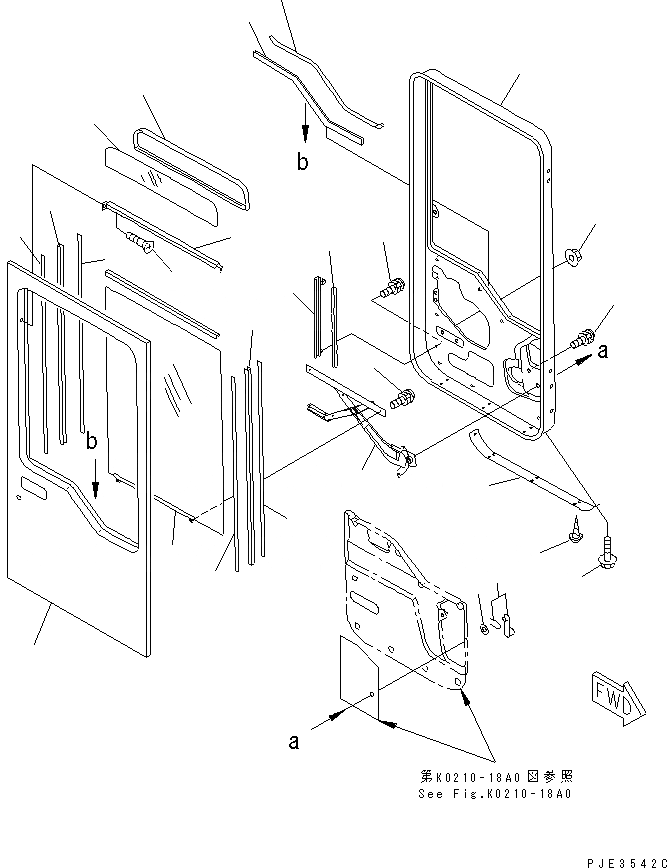

Запчасти Komatsu WA470-3 КАБИНА ROPS (ДВЕРЬ ПРАВ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$6

423-926-2502

ROPS CAB ASS'Y

SN: 55731-UP

1шт.

|$7

423-926-2501

ROPS CAB ASS'Y

SN: 54259-55730

1шт.

|$8

423-926-2500

ROPS CAB ASS'Y

SN: 54001-54258

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-31A1A TO K0210-46A1.

-1шт.

|$10

423-926-2010

ROPS CAB ASS'Y

SN: 53001-53999

1шт.

|$$6

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-31A1 TO K0210-46A1, K0210-48A1 AND K0210-49A1.

-1шт.

|$12

423-926-2602

ROPS CAB ASS'Y,(WITH AM/FM RADIO)

SN: 55731-UP

1шт.

|$13

423-926-2601

ROPS CAB ASS'Y,(WITH AM/FM RADIO)

SN: 54259-55730

1шт.

|$14

423-926-2600

ROPS CAB ASS'Y,(WITH AM/FM RADIO)

SN: 54001-54258

1шт.

|$$10

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-31A1A TO K0210-47A2A

-1шт.

|$16

423-926-2020

ROPS CAB ASS'Y

SN: 53001-53999

1шт.

|$$12

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-31A1 TO K0210-48A1.

-1шт.

|$24

421-926-2201

DOOR ASS'Y,R.H.

SN: 54001-UP

1шт.

|$25

421-926-2200

DOOR ASS'Y,R.H.

SN: 53001-53999

1шт.

|$$15

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-44A1 TO K0210-46A1.

-1шт.

1

0

DOOR,R.H.

SN: 53001-UP

1шт.

2

421-926-2410

GLASS ASS'Y,R.H.

SN: 53001-UP

1шт.

2

421-926-2430

GLASS

SN: 53001-UP

1шт.

2

423-56-21460

HOLDER

SN: 53001-UP

1шт.

2

423-56-21470

SHEET

SN: 53001-UP

1шт.

3

423-56-21580

REGULATOR,R.H.

SN: 53001-UP

1шт.

4

01023-60612

SCREW

SN: 53001-UP

6шт.

5

01584-00605

NUT

SN: 53001-UP

2шт.

6

423-56-21590

HANDLE

SN: 53001-UP

1шт.

7

22T-55-12140

ESCUTCHEON

SN: 53001-UP

1шт.

8

423-56-21510

SEAL

SN: 53001-UP

1шт.

9

423-56-21560

RAIL,R.H.

SN: 53001-UP

1шт.

10

423-56-21610

SEAL

SN: 53001-UP

1шт.

11

423-56-21360

CUSHION

SN: 53001-UP

2шт.

12

423-56-21370

CUSHION

SN: 53001-UP

2шт.

13

01023-60612

SCREW

SN: 53001-UP

2шт.

14

421-926-2440

GLASS

SN: 53001-UP

1шт.

15

423-56-21540

STRIP,WEATHER

SN: 53001-UP

1шт.

16

423-56-21410

BAR

SN: 53001-UP

1шт.

17

01224-40406

SCREW

SN: 53001-UP

2шт.

18

423-56-21520

SEAL,OUTER

SN: 53001-UP

1шт.

19

423-56-21530

SEAL,INNER

SN: 53001-UP

1шт.

20

423-56-21420

COVER

SN: 53001-UP

1шт.

21

01370-00508

SCREW

SN: 53001-UP

7шт.

22

01435-00610

BOLT

SN: 53001-UP

1шт.
