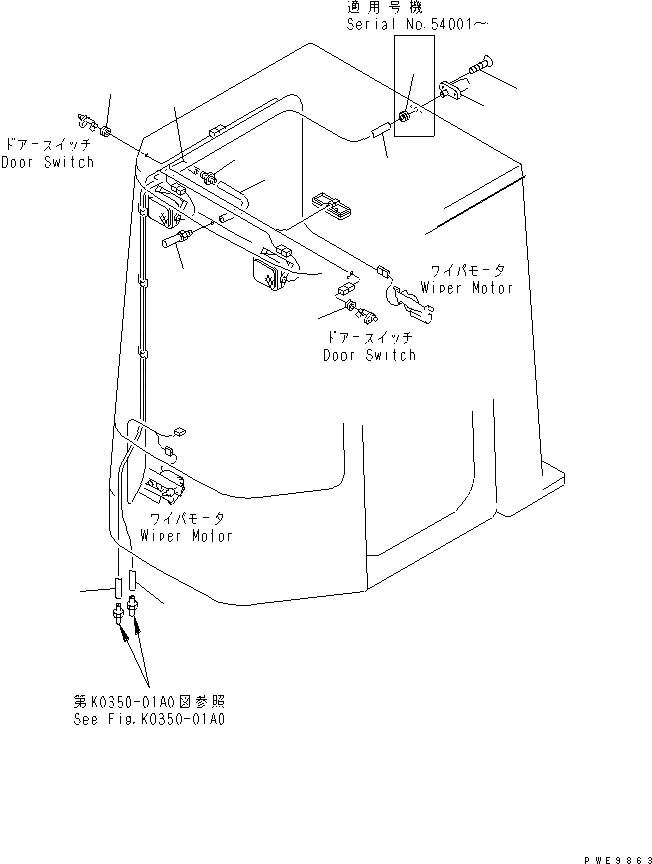

Запчасти Komatsu WA470-3 КАБИНА ROPS (ОМЫВАТЕЛЬ СТЕКЛА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$6

423-926-2502

ROPS CAB ASS'Y

SN: 55731-UP

1шт.

|$7

423-926-2501

ROPS CAB ASS'Y

SN: 54259-55730

1шт.

|$8

423-926-2500

ROPS CAB ASS'Y

SN: 54001-54258

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-31A1A TO K0210-46A1.

-1шт.

|$10

423-926-2010

ROPS CAB ASS'Y

SN: 53001-53999

1шт.

|$$6

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-31A1 TO K0210-46A1, K0210-48A1 AND K0210-49A1.

-1шт.

|$12

423-926-2602

ROPS CAB ASS'Y,(WITH AM/FM RADIO)

SN: 55731-UP

1шт.

|$13

423-926-2601

ROPS CAB ASS'Y,(WITH AM/FM RADIO)

SN: 54259-55730

1шт.

|$14

423-926-2600

ROPS CAB ASS'Y,(WITH AM/FM RADIO)

SN: 54001-54258

1шт.

|$$10

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-31A1A TO K0210-47A2A

-1шт.

|$16

423-926-2020

ROPS CAB ASS'Y,(WITH AM/FM RADIO)

SN: 53001-53999

1шт.

|$$12

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-31A1 TO K0210-48A1.

-1шт.

1

22T-55-11630

NOZZLE ASS'Y,FRONT

SN: 53001-UP

1шт.

2

07270-20465

TUBE,WASHER

SN: 53001-UP

1шт.

3

421-07-15110

JOINT

SN: 53001-UP

1шт.

4

421-54-15440

HOSE, 4300MM,WASHER

SN: 53001-UP

1шт.

5

417-56-21550

NOZZLE,REAR

SN: 53001-UP

1шт.

6

01224-70416

SCREW

SN: 53001-UP

2шт.

7

421-54-15440

HOSE, 4300MM,WASHER

SN: 53001-UP

1шт.

8

08037-01008

GROMMET

SN: 54001-UP

3шт.

8

08037-01008

GROMMET

SN: 53001-53999

2шт.
