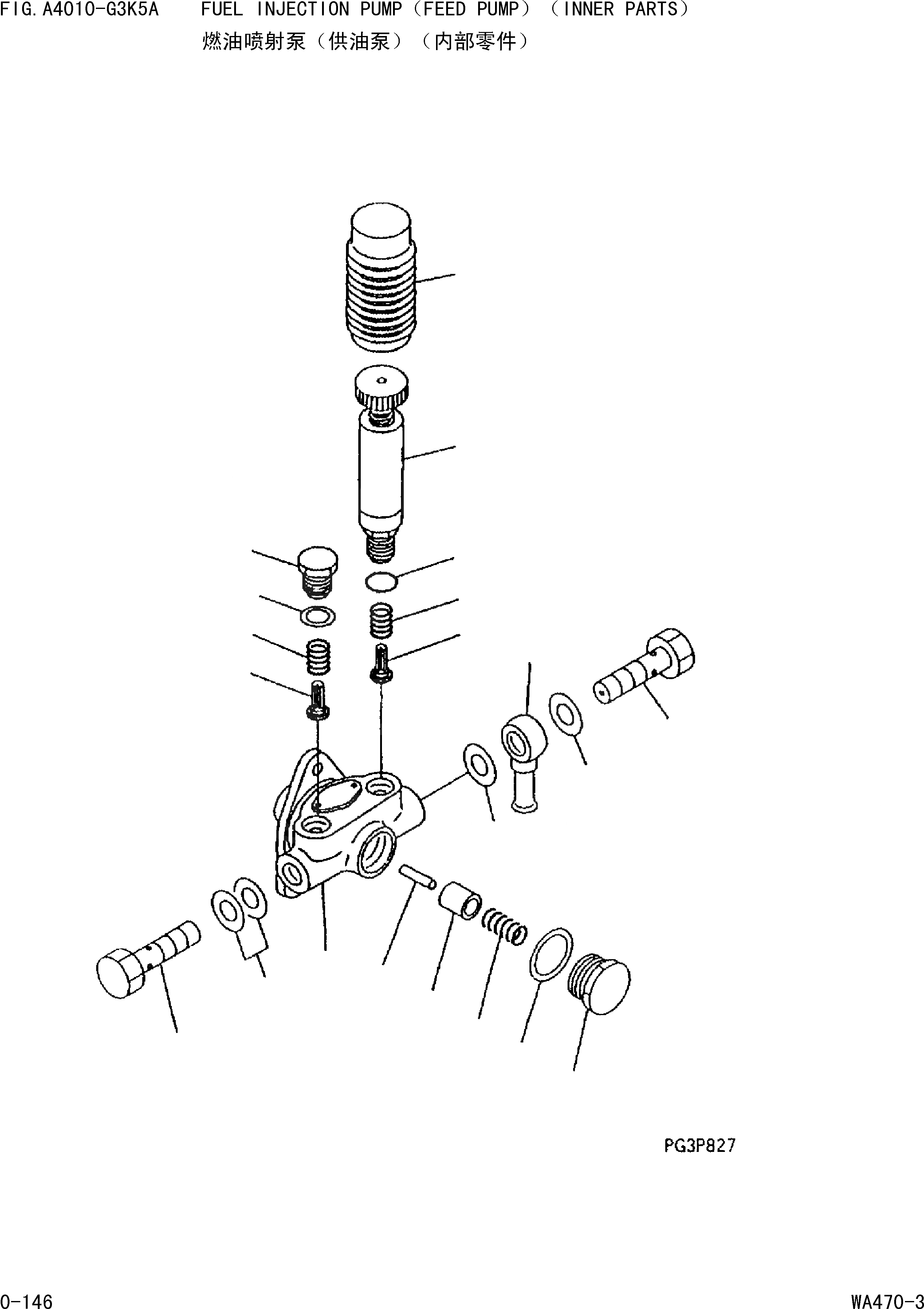

Запчасти Komatsu WA470-3 ТОПЛ. НАСОС(ПОДКАЧИВАЮЩ. НАСОС)(ВНУТР. ЧАСТИ) [ДВИГАТЕЛЬ]

1*

X16-0354001

INJECTION PUMP UNIT

Field_1: 70946-\7\

1шт.

|$1

6152-72-1441

INJECTION PUMP A

Field_1: 70946-74800

1шт.

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B3K5A TO A4010-G3K5A.

-1шт.

|$3

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|$4

DK105217-6030

FEED PUMP ASS'Y

Field_1: 70946-74800

1шт.

1

DK152061-0020

HOUSING

Field_1: 70946-74800

1шт.

2

DK152030-0000

ROD,PUSH

Field_1: 70946-74800

1шт.

3

DK152100-2301

PISTON

Field_1: 70946-74800

1шт.

4

DK152102-1600

SPRING,PISTON

Field_1: 70946-74800

1шт.

5

DK152105-1500

PLUG

Field_1: 70946-74800

1шт.

6

DK139526-0000

GASKET

Field_1: 70946-74800

1шт.

7

DK152115-0500

VALVE

Field_1: 70946-74800

2шт.

8

DK152116-0200

SPRING

Field_1: 70946-74800

2шт.

9

DK152117-0620

PLUG

Field_1: 70946-74800

1шт.

10

DK029631-6060

O-RING

Field_1: 70946-74800

2шт.

11

DK152200-6720

PUMP,PRIMING

Field_1: 70946-74800

1шт.

12

DK152300-5920

BOLT,JOINT

Field_1: 70946-74800

1шт.

13

DK029731-4680

BOLT,JOINT

Field_1: 70946-74800

1шт.

14

DK029711-4310

JOINT

Field_1: 70946-74800

1шт.

15

DK029341-4130

GASKET

Field_1: 70946-74800

2шт.

16

DK029341-4130

GASKET

Field_1: 70946-74800

2шт.

17

DK152320-0100

COVER

Field_1: 70946-74800

1шт.
