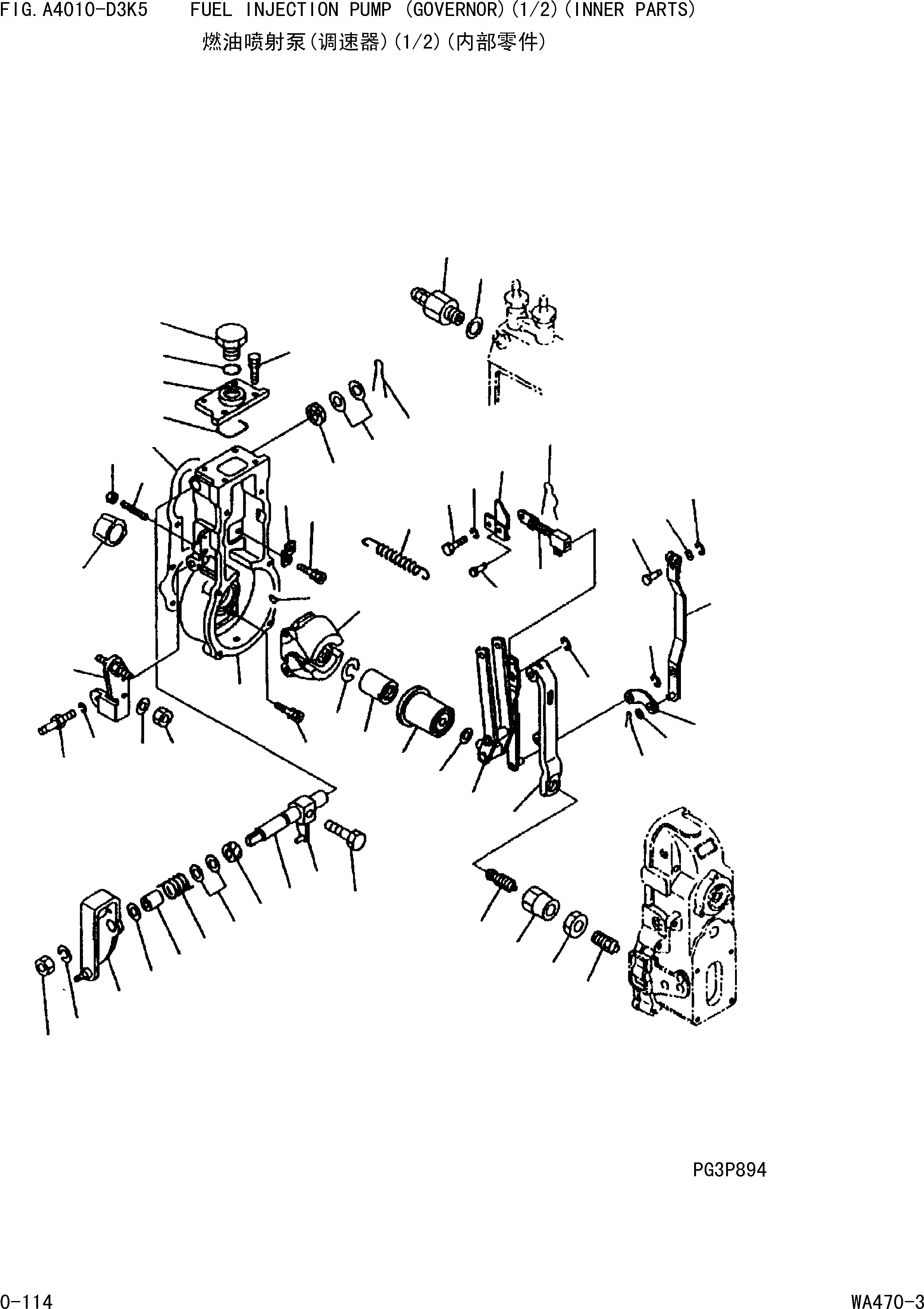

Запчасти Komatsu WA470-3 ТОПЛ. НАСОС(РЕГУЛЯТОР)(/)(ВНУТР. ЧАСТИ) [ДВИГАТЕЛЬ]

1*

X16-0354000

INJECTION PUMP UNIT

Field_1: 61589-70945

1шт.

|$1

6152-72-1440

INJECTION PUMP A THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B3K5 TO A4010-G3K5.

Field_1: 61589-70945

1шт.

|$2

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW

-1шт.

|$3

DK 105407-5612

GOVERNOR ASS'Y THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B3K5A TO A4010-C3K5A

Field_1: 61589-70945

1шт.

1

DK 154004-5321

HOUSING

Field_1: 61589-70945

1шт.

2

DK 154007-2900

PLUG

Field_1: 61589-70945

1шт.

3

DK 154358-2500

SEAL

Field_1: 61589-70945

1шт.

4

DK 154063-7900

COVER

Field_1: 61589-70945

1шт.

5

DK 020006-1640

BOLT

Field_1: 61589-70945

4шт.

6

DK 029632-5070

O-RING

Field_1: 61589-70945

1шт.

7

DK 154350-6000

PLATE

Field_1: 61589-70945

1шт.

8

DK 020106-2040

BOLT

Field_1: 61589-70945

8шт.

9

DK 154010-1100

SCREW

Field_1: 61589-70945

1шт.

10

DK 154011-0100

NUT,LOCK

Field_1: 61589-70945

1шт.

11

DK 155004-3600

SHAFT

Field_1: 61589-70945

1шт.

12

DK 155003-2101

LEVER

Field_1: 61589-70945

1шт.

13

DK 155006-0100

BOLT

Field_1: 61589-70945

1шт.

14

DK 139308-0900

WASHER,1.0MM

Field_1: 61589-70945

-2шт.

|$18

DK 139308-1000

WASHER,1.5MM

Field_1: 61589-70945

-2шт.

15

DK 154373-2200

PIN

Field_1: 61589-70945

1шт.

16

DK 154206-2000

COLLAR

Field_1: 61589-70945

1шт.

17

DK 154327-3600

SPRING

Field_1: 61589-70945

1шт.

18

DK 154382-0720

LEVER

Field_1: 61589-70945

1шт.

19

DK 014110-8440

WASHER

Field_1: 61589-70945

1шт.

20

DK 013020-8040

NUT

Field_1: 61589-70945

1шт.

21

DK 139408-1500

SHIM

Field_1: 61589-70945

1шт.

|$26

DK 139408-1400

SHIM

Field_1: 61589-70945

-2шт.

|$27

DK 139408-1500

SHIM

Field_1: 61589-70945

-2шт.

22

DK 139608-0200

SEAL

Field_1: 61589-70945

2шт.

23

DK 153021-2220

LIMITER

Field_1: 61589-70945

1шт.

24

DK 026524-3040

GASKET

Field_1: 61589-70945

1шт.

25

DK 154101-0120

FLYWELGHT ASS'Y

Field_1: 61589-70945

1шт.

26

DK 025803-1310

KEY,13MM

Field_1: 61589-70945

1шт.

27

DK 029321-2020

WASHER,SPRING

Field_1: 61589-70945

1шт.

28

DK 029231-2030

NUT

Field_1: 61589-70945

1шт.

29

DK 154123-2320

SLEEVE

Field_1: 61589-70945

1шт.

30

DK 029311-0010

SHIM,0.20MM

Field_1: 61589-70945

-2шт.

|$37

DK 029311-0180

SHIM,0.30MM

Field_1: 61589-70945

-2шт.

|$38

DK 029311-0190

SHIM,0.40MM

Field_1: 61589-70945

-2шт.

|$39

DK 139410-0000

SHIM,0.50MM

Field_1: 61589-70945

-2шт.

|$40

DK 029311-0210

SHIM,1.00MM

Field_1: 61589-70945

-2шт.

|$41

DK 139410-0100

SHIM,1.50MM

Field_1: 61589-70945

-2шт.

|$42

DK 139410-3000

SHIM,2.00MM

Field_1: 61589-70945

-2шт.

|$43

DK 139410-3100

SHIM,3.00MM

Field_1: 61589-70945

-2шт.

|$44

DK 139410-3200

SHIM,4.00MM

Field_1: 61589-70945

-2шт.

31

DK 154154-0701

SPRING

Field_1: 61589-70945

1шт.

32

DK 154185-3620

CAPSULE,SPRING

Field_1: 61589-70945

1шт.

33

DK 029201-6080

NUT

Field_1: 61589-70945

1шт.

34

DK 154172-3520

CAPSULE,SPRING

Field_1: 61589-70945

1шт.

35

DK 029201-6010

NUT

Field_1: 61589-70945

1шт.

36

DK 154217-0320

GUIDE LEVER ASS'Y

Field_1: 61589-70945

1шт.

37

DK 016010-0540

RING,SNAP

Field_1: 61589-70945

1шт.

38

DK 029310-5170

SHIM

Field_1: 61589-70945

4шт.

39

DK 025520-1210

PIN,SPRIT

Field_1: 61589-70945

3шт.

40

DK 154234-6920

LINK

Field_1: 61589-70945

1шт.

41

DK 154232-2420

CONNECTOR

Field_1: 61589-70945

1шт.

42

DK 159231-4900

PIN

Field_1: 61589-70945

1шт.

43

DK 155402-3800

PIN

Field_1: 61589-70945

1шт.

44

DK 154236-1500

LEVER,TENSION

Field_1: 61589-70945

1шт.

45

DK 155412-5300

IMPELLER

Field_1: 61589-70945

1шт.

46

DK 154371-5600

GASKET

Field_1: 61589-70945

1шт.

47

DK 029320-5020

WASHER

Field_1: 61589-70945

1шт.

48

DK 010535-1040

SCREW

Field_1: 61589-70945

1шт.

49

DK 154401-0220

LEVER

Field_1: 61589-70945

1шт.

50

DK 154401-1320

LINK

Field_1: 61589-70945

1шт.

51

DK 016010-0540

RING,SNAP

Field_1: 61589-70945

1шт.

52

DK 154222-6200

PIN

Field_1: 61589-70945

1шт.

53

DK 029300-4010

WASHER

Field_1: 61589-70945

1шт.

54

DK 016010-0440

RING,SNAP

Field_1: 61589-70945

1шт.

55

DK 154359-1320

BRACKET

Field_1: 61589-70945

1шт.

56

DK 154012-3520

BOLT

Field_1: 61589-70945

1шт.

57

DK 014110-8440

WASHER,SPRING

Field_1: 61589-70945

1шт.

58

DK 154011-1100

NUT

Field_1: 61589-70945

1шт.

59

DK 029300-8320

SHIM

Field_1: 61589-70945

1шт.
