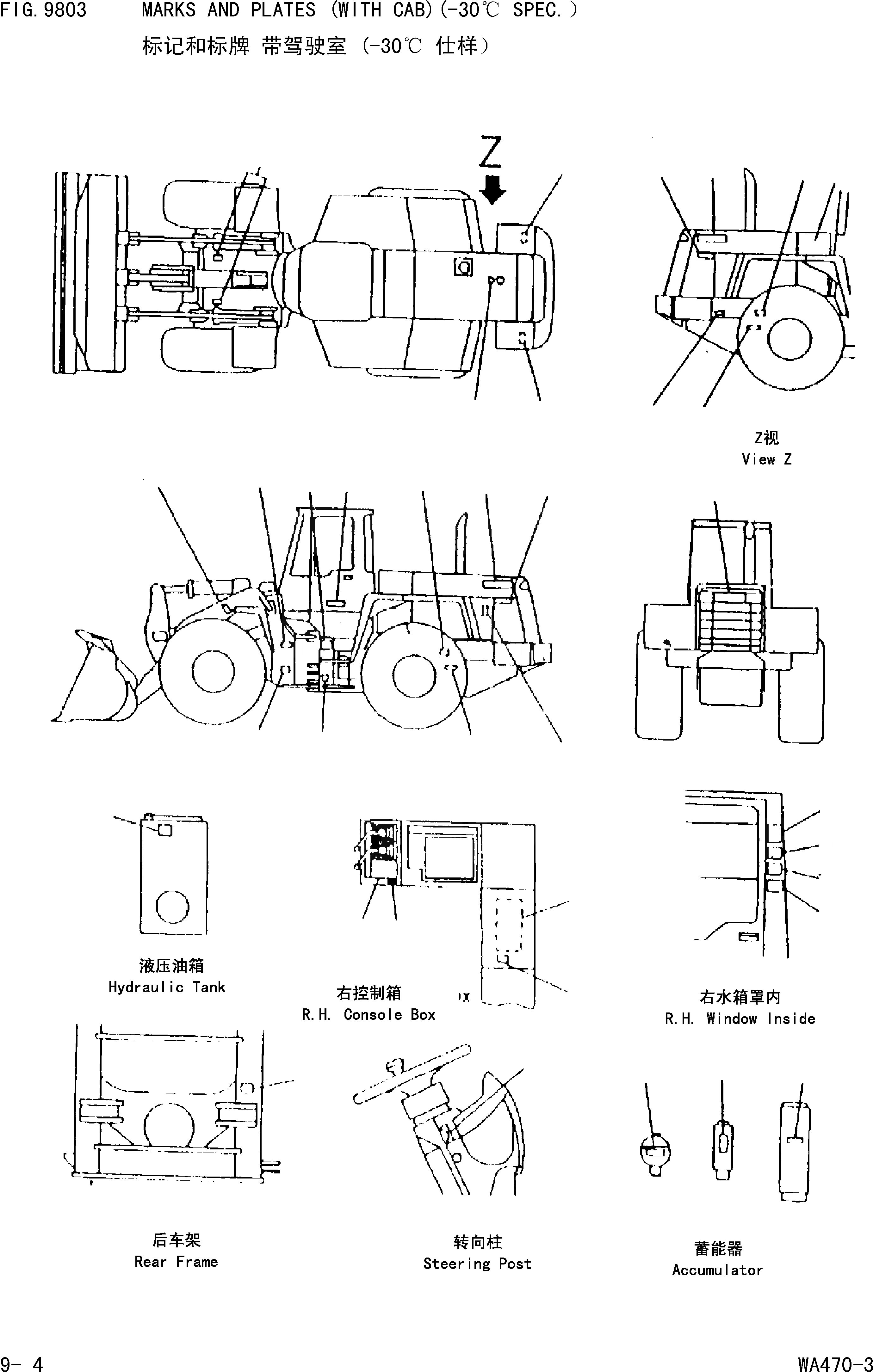

Запчасти Komatsu WA470-3 МАРКИРОВКА(С КАБИНОЙ)(-CENT. СПЕЦ-Я.) 9[МАРКИРОВКА,ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ]

|$0

423-V04-Z920

PLATE KIT

Field_1: 25001-

1шт.

1

0

PLATE.SAFETY.RADIATOR CAP

Field_1: 25001-

1шт.

2

0

PLATE.SAFETY.BATTERY CABLE

Field_1: 25001-

2шт.

3

0

PLATE.INSTRUCTION.RADIATOR DRAIN

Field_1: 25001-

1шт.

4

0

PLATE.SAFETY.SAFETY BAR

Field_1: 25001-

1шт.

5

0

PLATE.SAFETY.KEEP OUT

Field_1: 25001-

2шт.

6

0

PLATE.INSTRUCTION.FUEL

Field_1: 25001-

1шт.

7

0

PLATE.INSTRUCTION.ENGINE OIL DRAIN

Field_1: 25001-

1шт.

8

0

PLATE.SAFETY.HYDRAULIC TANK CAP

Field_1: 25001-

1шт.

10

0

PLATE.INSTRUCTION.REAR AXLE PIVOT PIN

Field_1: 25001-

1шт.

11

0

PLATE.OPERATING.WORK EQUIPMENT LEVER

Field_1: 25001-

1шт.

12

0

PLATE.OPERATING.WORK EQUIPMENT LEVER LOCK

Field_1: 25001-

1шт.

13

0

PLATE.NAME.RELAY

Field_1: 25001-

1шт.

14

0

PLATE.NAME.FUSE

Field_1: 25001-

1шт.

15

0

PLATE.SAFETY.BEFORE OPERATING

Field_1: 25001-

1шт.

16

0

PLATE.SAFETY.INSPECTION

Field_1: 25001-

1шт.

17

0

PLATE.SAFETY.WORK EQUIPMENT LEVER LOCK

Field_1: 25001-

1шт.

18

0

PLATE.OPERATING.STARTING SWITCH

Field_1: 25001-

1шт.

20

0

PLATE.NAME.RELAY

Field_1: 25001-

1шт.

21

423-84-Z8886

PLATE.NAME(LIMITED SUPPLY)

Field_1: 25001-

1шт.

|$20

423-84-Z0010

SCREW

Field_1: 25001-

4шт.

22

421-93-D9340

CHART.OIL

Field_1: 25001-

1шт.

23

09690-B0355

PLATE.MARK.KOMATSU

Field_1: 25001-

2шт.

24

423-93-D1780

PLATE.MARK.AVANCE LOADER

Field_1: 25001-

2шт.

25

421-93-D2761

PLATE.MARK.WA470

Field_1: 25001-

1шт.

25-1

421-93-D2771

PLATE.MARK.WA470

Field_1: 25001-

1шт.

26

09690-C0500

PLATE.MARK.KOMATSU

Field_1: 25001-

1шт.

28

09806-C0883

PLATE.WARNING

Field_1: 25001-

2шт.

29

721-89-Z0050

PLATE.CAUTION.ACCUMULATOR

Field_1: 25001-

3шт.

30

09960-01001

PLATE.MARK.HANDLING

Field_1: 25001-

4шт.

31

09807-C0883

PLATE.SAFETY

Field_1: 25001-

2шт.

32

09637-90263

PLATE.AIR CLEANER CHANGE

Field_1: 25001-

1шт.
