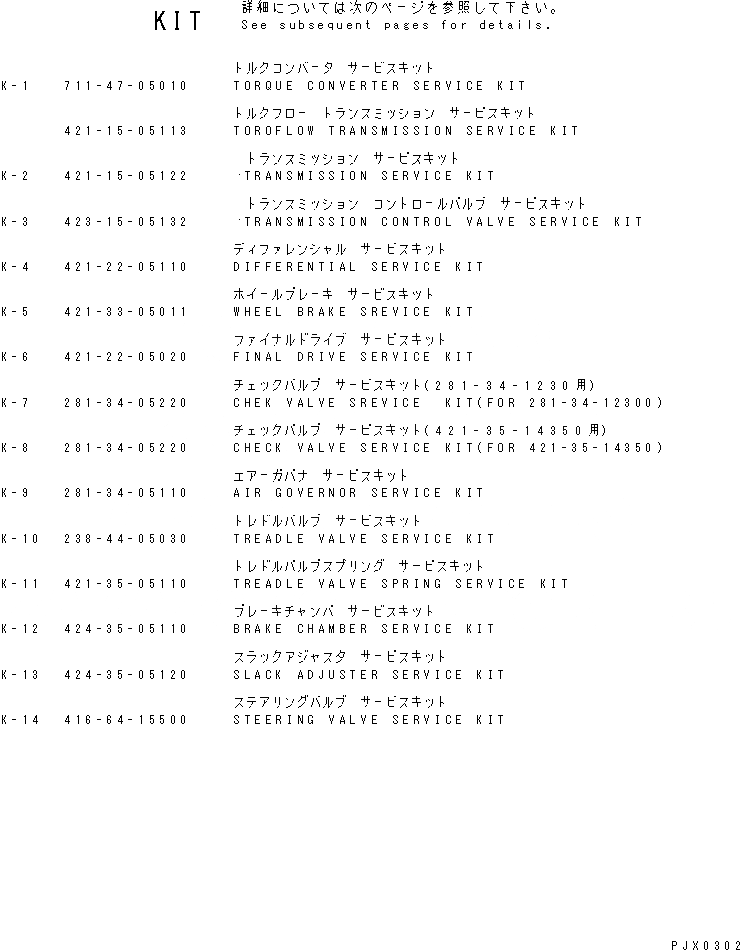

1
711-47-05010
SERVICE KIT,TORQUE CONVERTER
SN: A30501-UP
1шт.
1
07000-65420
O-RING,HOUSING
SN: A30501-UP
1шт.
1
07000-63035
O-RING,HOUSING
SN: A30501-UP
1шт.
1
07012-10075
SEAL,OIL, SHAFT
SN: A30501-UP
1шт.
1
07000-62105
O-RING,RETAINER
SN: A30501-UP
1шт.
1
565-22-12130
O-RING,COUPLING
SN: A30501-UP
1шт.
|$6
421-15-05113
SERVICE KIT,TORQUFLOW TRANSMISSION
SN: A30501-UP
1шт.
2
421-15-05122
SERVICE KIT,TRANSMISSION
SN: A30501-UP
1шт.
2
07002-02434
O-RING,PLUG
SN: A30501-UP
2шт.
2
07000-73032
O-RING,FLANGE
SN: A30501-UP
2шт.
2
07000-72021
O-RING,SLEEVE
SN: A30501-UP
10шт.
2
07000-05300
O-RING,TRANSFER CASE
SN: A30501-UP
1шт.
2
07000-02110
O-RING,TRANSFER CASE
SN: A30501-UP
1шт.
2
07000-73045
O-RING,TRANSFER CASE
SN: A30501-UP
1шт.
2
07000-05330
O-RING,TRANSFER CASE
SN: A30501-UP
1шт.
2
07000-02075
O-RING,TRANSFER CASE
SN: A30501-UP
1шт.
2
07000-02060
O-RING,TRANSFER CASE
SN: A30501-UP
1шт.
2
07000-02110
O-RING,TRANSFER CASE
SN: A30501-UP
1шт.
2
07002-02434
O-RING,PLUG, DRAIN
SN: A30501-UP
1шт.
2
07000-02055
O-RING,OIL FILTER
SN: A30501-UP
1шт.
2
07000-02090
O-RING,OIL FILTER
SN: A30501-UP
1шт.
2
07000-02110
O-RING,OIL FILTER
SN: A30501-UP
2шт.
2
144-15-22881
RING,REVERSE CLUTCH
SN: A30501-UP
1шт.
2
569-15-12860
RING,SEAL
SN: A30501-UP
1шт.
2
144-15-22881
RING,FORWARD CLUTCH
SN: A30501-UP
1шт.
2
195-15-49210
RING,FORWARD CLUTCH
SN: A30501-UP
1шт.
2
144-15-22881
RING,4TH CLUTCH
SN: A30501-UP
1шт.
2
113-15-12870
RING,4TH CLUTCH
SN: A30501-UP
1шт.
2
144-15-22881
RING,3RD CLUTCH
SN: A30501-UP
1шт.
2
569-15-12860
RING,SEAL
SN: A30501-UP
1шт.
2
144-15-22881
RING,2ND CLUTCH
SN: A30501-UP
1шт.
2
569-15-12860
RING,SEAL
SN: A30501-UP
1шт.
2
145-15-42810
RING,1ST CLUTCH
SN: A30501-UP
1шт.
2
232-15-19210
RING,SEAL, 1ST CLUTCH
SN: A30501-UP
1шт.
2
421-15-05010
SHIM KIT,CAGE, TRANSFER GEAR
SN: A30501-UP
1шт.
2
07000-02130
O-RING,COVER, TRANSFER GEAR
SN: A30501-UP
1шт.
2
421-15-13590
O-RING,CAGE, TRANSFER GEAR
SN: A30501-UP
1шт.
2
421-15-05020
SHIM KIT,CAGE, TRANSFER GEAR
SN: A30501-UP
1шт.
2
07000-02105
O-RING,COVER, TRANSFER GEAR
SN: A30501-UP
1шт.
2
07012-10095
SEAL,OIL, OUTPUT SHAFT
SN: A30501-UP
1шт.
2
07000-05135
O-RING,CAGE, TRANSFER GEAR
SN: A30501-UP
1шт.
2
421-15-05030
SHIM KIT,CAGE, TRANSFER GEAR
SN: A30501-UP
1шт.
2
07000-05160
O-RING,CAGE, TRANSFER GEAR
SN: A30501-UP
1шт.
2
07000-05065
O-RING,COUPLING
SN: A30501-UP
2шт.
3
423-15-05132
SERVICE KIT,TRANSMISSION VALVE
SN: A30501-UP
1шт.
3
07000-72021
O-RING,UPPER VALVE
SN: A30501-UP
1шт.
3
424-15-15930
GASKET,UPPER VALVE
SN: A30501-UP
1шт.
3
07000-73030
O-RING,UPPER VALVE
SN: A30501-UP
1шт.
3
07000-73035
O-RING,UPPER VALVE
SN: A30501-UP
1шт.
3
07000-72015
O-RING,UPPER VALVE
SN: A30501-UP
1шт.
3
07000-71009
O-RING,UPPER VALVE
SN: A30501-UP
1шт.
3
07000-72021
O-RING,UPPER VALVE
SN: A30501-UP
1шт.
3
07000-73030
O-RING,UPPER VALVE
SN: A30501-UP
2шт.
3
07002-03034
O-RING,UPPER VALVE
SN: A30501-UP
1шт.
3
424-15-15981
GASKET,UPPER VALVE
SN: A30501-UP
1шт.
3
424-15-15960
GASKET,LOWER VALVE
SN: A30501-UP
1шт.
3
424-15-15920
GASKET,LOWER VALVE
SN: A30501-UP
1шт.
3
07002-03034
O-RING,LOWER VALVE
SN: A30501-UP
1шт.
3
424-15-15991
GASKET,LOWER VALVE
SN: A30501-UP
1шт.
3
22W-06-15690
GASKET,SOLNOID VALVE
SN: A30501-UP
1шт.
3
07000-71009
O-RING,SOLNOID VALVE
SN: A30501-UP
6шт.
3
424-15-17140
GASKET,SOLNOID VALVE
SN: A30501-UP
1шт.
3
424-15-17120
GASKET,SOLNOID VALVE
SN: A30501-UP
1шт.
3
07000-73022
O-RING,PIPING
SN: A30501-UP
1шт.
3
07000-73022
O-RING,PIPING
SN: A30501-UP
1шт.
3
07002-02034
O-RING,PIPING
SN: A30501-UP
2шт.
3
07005-00812
GASKET,PIPING
SN: A30501-UP
4шт.
3
07000-73022
O-RING,PIPING
SN: A30501-UP
1шт.
4
421-22-05110
SERVICE KIT,DIFFERENTIAL
SN: A30501-UP
2шт.
4
07002-03634
O-RING,PLUG, DRAIN
SN: A30501-UP
1шт.
4
07002-03634
O-RING,PLUG
SN: A30501-UP
2шт.
4
07000-05175
O-RING,CAGE
SN: A30501-UP
1шт.
4
07000-05180
O-RING,CAGE
SN: A30501-UP
1шт.
4
07012-00095
SEAL,OIL, CAGE
SN: A30501-UP
1шт.
4
421-22-11760
SEAL,DUST, CAGE
SN: A30501-UP
1шт.
4
07000-05055
O-RING,COUPLING
SN: A30501-UP
1шт.
4
07000-05485
O-RING,CARRIER
SN: A30501-UP
1шт.
5
421-33-05011
SERVICE KIT,WHEEL BRAKE
SN: A30501-UP
2шт.
5
07002-01023
O-RING,PLUG
SN: A30501-UP
4шт.
5
07002-31423
O-RING,PLUG
SN: A30501-UP
2шт.
5
421-33-11480
SEAL,PISTON
SN: A30501-UP
2шт.
5
421-33-11440
SEAL,PISTON
SN: A30501-UP
2шт.
5
07000-35445
O-RING,CYLINDER
SN: A30501-UP
2шт.
5
07000-32016
O-RING,CYLINDER
SN: A30501-UP
2шт.
5
07000-05270
O-RING,CYLINDER
SN: A30501-UP
2шт.
5
07000-03028
O-RING,CYLINDER
SN: A30501-UP
16шт.
5
07002-02034
O-RING,CYLINDER
SN: A30501-UP
2шт.
6
421-22-05020
SERVICE KIT,FINAL DRIVE
SN: A30501-UP
2шт.
6
07002-02434
O-RING,PLUG, DRAIN
SN: A30501-UP
2шт.
6
07000-05410
O-RING,CARRIER
SN: A30501-UP
2шт.
6
07002-03634
O-RING,COVER
SN: A30501-UP
2шт.
6
07000-05280
O-RING,PLUG
SN: A30501-UP
2шт.
7
281-34-05220
SERVICE KIT,CHECK VALVE (FOR 281-34-12300)
SN: A30501-UP
1шт.
7
281-34-12310
SHUTTLE,SHUTTLE
SN: A30501-UP
1шт.
7
281-34-12320
GASKET
SN: A30501-UP
1шт.
8
281-34-05220
SERVICE KIT,CHECK VALVE (FOR 421-35-14350)
SN: A30501-UP
1шт.
8
281-34-12310
SHUTTLE,SHUTTLE
SN: A30501-UP
1шт.
8
281-34-12320
GASKET
SN: A30501-UP
1шт.
9
281-34-05110
SERVICE KIT,GOVERNOR
SN: A30501-UP
1шт.
9
565-44-16120
FILTER
SN: A30501-UP
2шт.
9
0
O-RING
SN: A30501-UP
1шт.
9
0
VALVE,PRESSURE REGULATOR
SN: A30501-UP
1шт.
9
0
SPRING,VALVE
SN: A30501-UP
1шт.
9
0
O-RING
SN: A30501-UP
2шт.
9
565-44-16240
COVER
SN: A30501-UP
1шт.
10
238-44-05030
SERVICE KIT,TREADLE VALVE
SN: A30501-UP
1шт.
10
0
VALVE,UPPER
SN: A30501-UP
1шт.
10
0
O-RING,RETAINER
SN: A30501-UP
1шт.
10
0
RING,RETAINING
SN: A30501-UP
1шт.
10
0
O-RING,RETAINER
SN: A30501-UP
1шт.
10
0
RING,SNAP
SN: A30501-UP
1шт.
10
0
O-RING,PISTON, RELAY
SN: A30501-UP
1шт.
10
0
O-RING,PISTON, RELAY
SN: A30501-UP
1шт.
10
0
SPRING,RUBBER
SN: A30501-UP
1шт.
10
0
O-RING,PISTON, UPPER
SN: A30501-UP
1шт.
10
0
VALVE,LOWER
SN: A30501-UP
1шт.
10
0
O-RING,RETAINER
SN: A30501-UP
1шт.
10
0
RING,RETAINING
SN: A30501-UP
1шт.
10
0
O-RING,RETAINING
SN: A30501-UP
1шт.
10
0
VALVE,EXHAUST
SN: A30501-UP
1шт.
10
0
O-RING,BODY
SN: A30501-UP
1шт.
11
421-35-05110
SPRING KIT,TREADLE VALVE, SPRTING
SN: A30501-UP
1шт.
11
0
SPRING,VALVE, UPPER
SN: A30501-UP
1шт.
11
0
SPRING,PISTON, RELAY
SN: A30501-UP
1шт.
11
0
SPRING,PISYON, UPPER
SN: A30501-UP
1шт.
11
0
SPRING,INNER
SN: A30501-UP
1шт.
11
0
SPRING,OUTER
SN: A30501-UP
1шт.
11
0
SPRING,RETAINING
SN: A30501-UP
1шт.
12
424-35-05110
SERVICE KIT,BRAKE CHAMBER
SN: A30501-UP
2шт.
12
424-35-15590
RING
SN: A30501-UP
1шт.
12
424-35-15440
PACKING
SN: A30501-UP
2шт.
12
424-35-15450
SEAT
SN: A30501-UP
1шт.
12
424-35-15460
PACKING
SN: A30501-UP
1шт.
12
07000-01007
O-RING
SN: A30501-UP
1шт.
12
424-35-15420
RING
SN: A30501-UP
1шт.
12
424-35-15410
PACKING
SN: A30501-UP
1шт.
12
07000-02012
O-RING
SN: A30501-UP
1шт.
12
424-35-15480
O-RING
SN: A30501-UP
1шт.
12
424-35-15530
VALVE
SN: A30501-UP
1шт.
12
424-35-15540
SPRING
SN: A30501-UP
1шт.
12
424-35-15510
PACKING
SN: A30501-UP
1шт.
12
424-35-15560
O-RING
SN: A30501-UP
1шт.
13
424-35-05120
SERVICE KIT,SLACK ADJUSTER
SN: A30501-UP
2шт.
13
424-35-15280
O-RING
SN: A30501-UP
2шт.
13
424-35-15250
COVER
SN: A30501-UP
2шт.
13
424-35-15240
O-RING
SN: A30501-UP
2шт.
13
424-35-15260
O-RING
SN: A30501-UP
2шт.
14
416-64-15500
SERVICE KIT,STEERING VALVE
SN: A30501-UP
1шт.
14
416-64-15520
O-RING
SN: A30501-UP
3шт.
14
416-64-15450
O-RING
SN: A30501-UP
1шт.
14
416-64-15430
O-RING
SN: A30501-UP
1шт.
14
416-64-15580
SEAL
SN: A30501-UP
1шт.
14
416-64-15590
RING,BACK-UP
SN: A30501-UP
1шт.
14
416-64-15570
O-RING
SN: A30501-UP
1шт.
14
416-64-15560
O-RING
SN: A30501-UP
1шт.
14
416-64-15550
SEAL,DUST
SN: A30501-UP
1шт.
