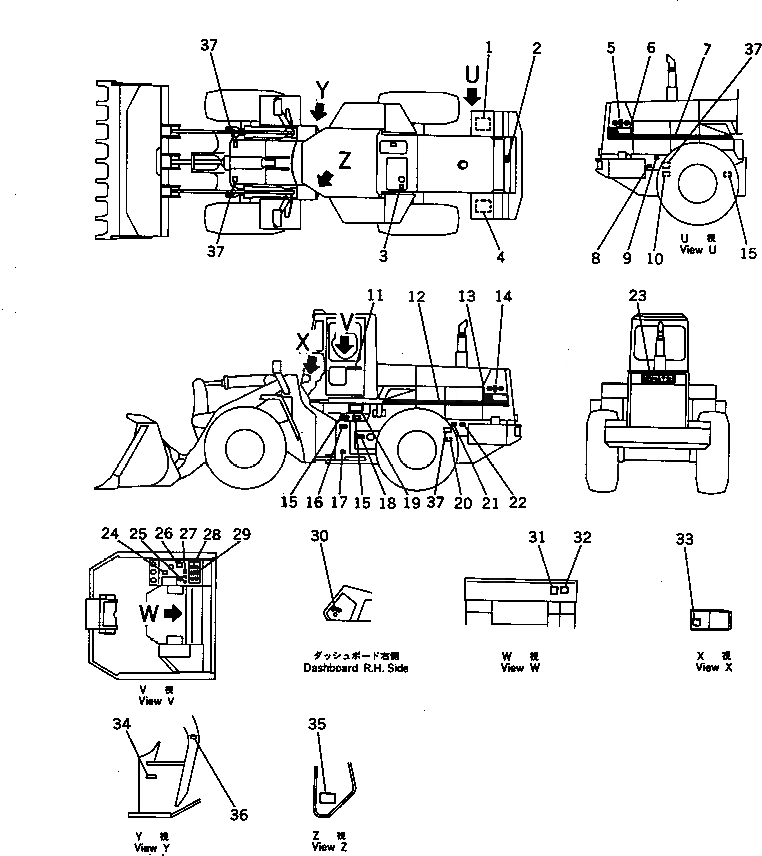

Запчасти Komatsu WA470-1 МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

421-93-11630

PLATE, CAUTION,BATTERY

SN: A30501-UP

1шт.

2

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: A30501-UP

1шт.

3

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: A30501-UP

1шт.

4

421-93-12250

PLATE, CAUTION,BATTERY

SN: A30501-UP

1шт.

5

421-93-11541

PLATE, MARK,SYMBOL

SN: A30501-UP

1шт.

6

421-93-12140

PLATE, MARK,WA470

SN: A30501-UP

1шт.

7

423-93-11142

PLATE, STRIPE

SN: A30501-UP

1шт.

8

09101-03000

PLATE, CAUTION,FUEL

SN: A30501-UP

1шт.

9

362-54-27390

PLATE, CAUTION,FAN

SN: A30501-UP

1шт.

10

421-93-11380

PLATE, CAUTION,ENGINE OIL DRAIN

SN: A30501-UP

1шт.

11

09690-50280

PLATE, MARK,KOMATSU

SN: A30501-UP

2шт.

12

423-93-11142

PLATE, STRIPE

SN: A30501-UP

1шт.

13

421-93-12140

PLATE, MARK,WA470

SN: A30501-UP

1шт.

14

421-93-11541

PLATE, MARK,SYMBOL

SN: A30501-UP

1шт.

15

09152-03000

PLATE, SAFETY,AIR TANK, DRAIN

SN: A30501-UP

1шт.

16

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: A30501-UP

2шт.

17

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: A30501-UP

1шт.

18

425-93-11290

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: A30501-UP

1шт.

19

421-93-12152

CHART, OIL

SN: A30501-UP

1шт.

20

421-93-11970

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: A30501-UP

1шт.

21

421-93-12210

PLATE, OPERATING,REMOTE GREASE,TORQUE CONVERTER

SN: A30501-UP

1шт.

22

421-93-12220

PLATE, OPERATING,REMOTE GREASE, REAR AXLE

SN: A30501-UP

1шт.

23

09690-50400

PLATE, MARK,KOMATSU

SN: A30501-UP

1шт.

24

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: A30501-UP

1шт.

25

426-93-11740

PLATE, OPERATING,RELAY, ENGINE OIL

SN: A30501-UP

1шт.

26

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: A30501-UP

1шт.

27

421-93-12240

PLATE, OPERATING,RELAY

SN: A30501-UP

1шт.

28

424-93-11421

PLATE, OPERATING,FUSE

SN: A30501-UP

1шт.

29

424-93-11431

PLATE, OPERATING,FUSE

SN: A30501-UP

1шт.

30

09683-30070

PLATE, OPERATING,STARTING SWITCH

SN: A30501-UP

1шт.

31

421-93-11940

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: A30501-UP

1шт.

32

362-98-12150

PLATE, CAUTION,STARTING AND INSPECTION

SN: A30501-UP

1шт.

33

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: A30501-UP

1шт.

34

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: A30501-UP

1шт.

34

04418-13060

SCREW

SN: A30501-UP

4шт.

35

423-93-11440

PLATE, OPERATING,MONITOR PANEL

SN: A30501-UP

1шт.
