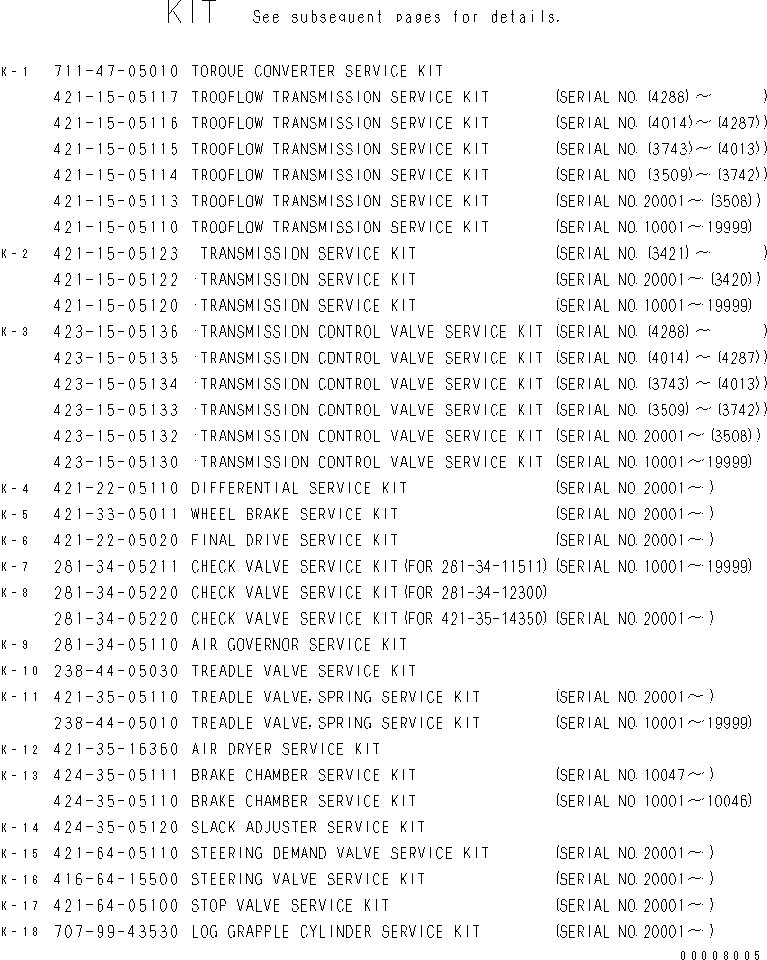

1
711-47-05010
SERVICE KIT,TORQUE CONVERTER
SN: 10001-UP
1шт.
1
07000-65420
O-RING,HOUSING
SN: 10001-UP
1шт.
1
07000-63035
O-RING,HOUSING
SN: 10001-UP
1шт.
1
07012-10075
SEAL,OIL, SHAFT
SN: 10001-UP
1шт.
1
07000-62105
O-RING,RETAINER
SN: 10001-UP
1шт.
1
565-22-12130
O-RING,COUPLING
SN: 10001-UP
1шт.
|$6
421-15-05117
SERVICE KIT,TORQFLOW TRANSMISSION
SN: (4288)-UP
1шт.
|$7
421-15-05116
SERVICE KIT,TORQFLOW TRANSMISSION
SN: (4014)-(4287)
1шт.
|$8
421-15-05115
SERVICE KIT,TORQFLOW TRANSMISSION
SN: (3743)-(4013)
1шт.
|$9
421-15-05114
SERVICE KIT,TORQFLOW TRANSMISSION
SN: (3509)-(3742)
1шт.
|$10
0
SERVICE KIT,TORQFLOW TRANSMISSION
SN: 20001-(3508)
1шт.
|$11
421-15-05110
SERVICE KIT,TORQFLOW TRANSMISSION
SN: 10001-19999
1шт.
2
421-15-05123
SERVICE KIT,TRANSMISSION
SN: (3421)-UP
1шт.
2
421-15-05122
SERVICE KIT,TRANSMISSION
SN: 20001-(3420)
1шт.
2
421-15-05120
SERVICE KIT,TRANSMISSION
SN: 10001-19999
1шт.
2
07002-02434
O-RING,PLUG
SN: 10001-UP
2шт.
2
07000-73032
O-RING,CASE
SN: (1650)-UP
2шт.
2
07000-73028
O-RING,CASE
SN: 10001-(1649)
2шт.
2
07000-72021
O-RING,SLEEVE
SN: 10001-UP
10шт.
2
07000-05300
O-RING,TRANSFER CASE
SN: 10001-UP
1шт.
2
07000-02110
O-RING,TRANSFER CASE
SN: 10001-UP
1шт.
2
07000-73050
O-RING,TRANSFER CASE
SN: (3421)-UP
1шт.
2
07000-73045
O-RING,TRANSFER CASE
SN: 10001-(3420)
1шт.
2
07000-05330
O-RING,TRANSFER CASE
SN: 10001-(3420)
1шт.
2
07000-02075
O-RING,TRANSFER CASE
SN: 10001-(3420)
1шт.
2
07000-02060
O-RING,TRANSFER CASE
SN: 10001-(3420)
1шт.
2
07000-02110
O-RING,TRANSFER CASE
SN: 10001-(3420)
1шт.
2
07002-02434
O-RING,DRAIN PLUG
SN: 10001-UP
1шт.
2
07000-02055
O-RING,OIL FILTER
SN: 10001-UP
1шт.
2
07000-02090
O-RING,OIL FILTER
SN: 10001-UP
1шт.
2
07000-02110
O-RING,OIL FILTER
SN: 10001-UP
2шт.
2
144-15-22881
RING,SEAL, REVERSE PISTON
SN: 10001-UP
1шт.
2
569-15-12860
RING,SEAL
SN: 10001-UP
1шт.
2
144-15-22881
RING,SEAL, FORWARD PISTON
SN: 10001-UP
1шт.
2
195-15-49210
RING,SEAL, FORWARD HOUSING
SN: 10001-UP
1шт.
2
144-15-22881
RING,SEAL, 4TH PISTON
SN: 10001-UP
1шт.
2
113-15-12870
RING,SEAL, 4TH HOUSING
SN: 10001-UP
1шт.
2
144-15-22881
RING,SEAL, 3RD PISTON
SN: 10001-UP
1шт.
2
569-15-12860
RING,SEAL
SN: 10001-UP
1шт.
2
144-15-22881
RING,SEAL, 2ND PISTON
SN: 10001-UP
1шт.
2
569-15-12860
RING,SEAL
SN: 10001-UP
1шт.
2
145-15-42810
RING,SEAL, 1ST PISTON
SN: 10001-UP
1шт.
2
232-15-19210
RING,SEAL, 1ST HOUSING
SN: 10001-UP
1шт.
2
421-15-05010
SHIM KIT,CAGE, TRANSFER GEAR
SN: 10001-UP
1шт.
2
07000-02130
O-RING,COVER, TRANSFER GEAR
SN: 10001-UP
1шт.
2
232-15-13450
GASKET,COVER
SN: 10001-19999
1шт.
2
421-15-13590
O-RING,CAGE, TRANSFER GEAR
SN: 10001-UP
1шт.
2
421-15-05020
SHIM KIT,CAGE, TRANSFER GEAR
SN: 10001-UP
1шт.
2
07000-02105
O-RING,TRANSFER CASE
SN: 10001-UP
1шт.
2
07012-10095
SEAL,OIL, OUTPUT SHAFT
SN: 10001-UP
2шт.
2
07000-05135
O-RING,OUTPUT SHAFT
SN: 10001-UP
1шт.
2
421-15-05030
SHIM KIT,OUTPUT SHAFT
SN: 10001-UP
1шт.
2
07000-05160
O-RING,OUTPUT SHAFT
SN: 10001-UP
1шт.
2
07000-05065
O-RING,COUPLING
SN: 10001-UP
2шт.
3
423-15-05136
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (4288)-UP
1шт.
3
423-15-05135
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (4014)-(4287)
1шт.
3
423-15-05134
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (3743)-(4013)
1шт.
3
423-15-05133
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (3509)-(3742)
1шт.
3
423-15-05132
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 20001-(3508)
1шт.
3
423-15-05130
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 10001-19999
1шт.
3
07000-72021
O-RING,UPPER VALVE
SN: 10001-UP
1шт.
3
424-15-15930
GASKET,UPPER VALVE
SN: 10001-UP
1шт.
3
07000-73030
O-RING,UPPER VALVE
SN: 10001-UP
1шт.
3
07000-73035
O-RING,UPPER VALVE
SN: 10001-UP
1шт.
3
07000-72015
O-RING,UPPER VALVE
SN: 10001-UP
1шт.
3
07000-71009
O-RING,UPPER VALVE
SN: 10001-UP
1шт.
3
07000-72021
O-RING,UPPER VALVE
SN: 10001-(3742)
1шт.
3
07000-73030
O-RING,UPPER VALVE
SN: 10001-(3742)
2шт.
3
07002-03034
O-RING,UPPER VALVE
SN: 10001-(3742)
1шт.
3
07000-72015
O-RING,UPPER VALVE
SN: 10001-(2129)
2шт.
3
424-15-15982
GASKET,UPPER VALVE
SN: (3509)-UP
1шт.
3
0
GASKET,UPPER VALVE
SN: 20001-(3508)
1шт.
3
424-15-15980
GASKET,UPPER VALVE
SN: 10001-19999
1шт.
3
424-15-15960
GASKET,LOWER VALVE
SN: 10001-UP
1шт.
3
424-15-15920
GASKET,LOWER VALVE
SN: 10001-UP
1шт.
3
07002-03034
O-RING,LOWER VALVE
SN: 10001-UP
1шт.
3
424-15-15992
GASKET,LOWER VALVE
SN: (3509)-UP
1шт.
3
0
GASKET,LOWER VALVE
SN: 20001-(3508)
1шт.
3
424-15-15990
GASKET,LOWER VALVE
SN: 10001-19999
1шт.
3
22W-06-15690
GASKET,SOLENOID VALVE
SN: 20001-UP
1шт.
3
568-15-15880
GASKET,SOLENOID VALVE
SN: 10001-19999
1шт.
3
07000-71009
O-RING,SOLENOID VALVE
SN: 10001-UP
6шт.
3
424-15-17141
GASKET,SOLENOID VALVE
SN: (4288)-UP
1шт.
3
424-15-17140
GASKET,SOLENOID VALVE
SN: 10001-(4287)
1шт.
3
424-15-17121
GASKET,SOLENOID VALVE
SN: (3509)-UP
1шт.
3
0
GASKET,SOLENOID VALVE
SN: 10001-(3508)
1шт.
3
07000-73022
O-RING,OIL PIPING
SN: 10001-UP
3шт.
3
07002-02034
O-RING,OIL PIPING
SN: 10001-UP
2шт.
3
07005-00812
GASKET,OIL PIPING
SN: 10001-UP
4шт.
4
421-22-05110
SERVICE KIT,DIFFERENTIAL
SN: 20001-UP
2шт.
4
07000-05220
O-RING,SHAFT
SN: 20001-UP
2шт.
4
07002-03634
O-RING,PLUG
SN: 20001-UP
3шт.
4
07000-05175
O-RING,CAGE
SN: 20001-UP
1шт.
4
07000-05180
O-RING,CAGE
SN: 20001-UP
1шт.
4
07012-00095
SEAL,OIL, CAGE
SN: 20001-UP
1шт.
5
421-33-05011
SERVICE KIT,WHEEL BRAKE
SN: 20001-UP
2шт.
5
07002-01023
O-RING,PLUG
SN: 20001-UP
4шт.
5
07002-31423
O-RING,PLUG
SN: 20001-UP
4шт.
5
421-33-11480
SEAL,PISTON
SN: 20001-UP
2шт.
5
421-33-11440
SEAL,PISTON
SN: 20001-UP
2шт.
5
07000-35445
O-RING,CYLINDER
SN: 20001-UP
2шт.
5
07000-32016
O-RING,CYLINDER
SN: 20001-UP
2шт.
5
07000-05270
O-RING,CYLINDER
SN: 20001-UP
2шт.
5
07000-03028
O-RING,CYLINDER
SN: 20001-UP
16шт.
5
07002-02034
O-RING,PLUG
SN: 20001-UP
2шт.
6
421-22-05020
SERVICE KIT,FINAL DRIVE
SN: 20001-UP
2шт.
6
07002-02434
O-RING,PLUG
SN: 20001-UP
2шт.
6
07000-05410
O-RING,CARRIER
SN: 20001-UP
2шт.
6
07002-03634
O-RING,PLUG
SN: 20001-UP
2шт.
6
07000-05280
O-RING,COVER
SN: 20001-UP
2шт.
7
281-34-05211
SERVICE KIT,CHECK VALVE (FOR 281-34-11511)
SN: 10001-19999
3шт.
7
281-34-11561
SPRING
SN: 10001-19999
1шт.
7
281-34-11550
VALVE
SN: 10001-19999
1шт.
7
281-34-11540
SEAT
SN: 10001-19999
1шт.
8
281-34-05220
SERVICE KIT,CHECK VALVE (FOR 281-34-12300)
SN: 20001-UP
1шт.
8
281-34-05220
SERVICE KIT,CHECK VALVE (FOR 281-34-12300)
SN: 10001-19999
2шт.
8
281-34-12310
SHUTTLE,SHUTTLE
SN: 10001-UP
1шт.
8
281-34-12320
GASKET
SN: 10001-UP
1шт.
8
281-34-05220
SERVICE KIT,CHECK VALVE (FOR 421-35-14350)
SN: 20001-UP
1шт.
8
281-34-12310
SHUTTLE,SHUTTLE
SN: 20001-UP
1шт.
8
281-34-12320
GASKET
SN: 20001-UP
1шт.
9
281-34-05110
SERVICE KIT,AIR GOVERNOR
SN: 10001-UP
1шт.
9
565-44-16120
FILTER
SN: 10001-UP
2шт.
9
0
O-RING
SN: 10001-UP
1шт.
9
0
VALVE
SN: 10001-UP
1шт.
9
0
SPRING
SN: 10001-UP
1шт.
9
0
O-RING
SN: 10001-UP
2шт.
9
565-44-16240
COVER
SN: 10001-UP
1шт.
10
238-44-05030
SERVICE KIT,TREADLE VALVE
SN: 10001-UP
1шт.
10
0
VALVE,UPPER
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
10
0
RING,RETAINING
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
10
0
RING,RETAINING
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
10
0
SPRING
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
10
0
VALVE,LOWER
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
10
0
RING,RETAINING
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
10
0
VALVE
SN: 10001-UP
1шт.
10
0
O-RING
SN: 10001-UP
1шт.
11
421-35-05110
SPRING KIT,TREADLE VALVE, SPRING
SN: 20001-UP
1шт.
11
238-44-05010
SERVICE KIT,TREADLE VALVE, SPRING
SN: 10001-19999
1шт.
11
0
SPRING,UPPER VALVE
SN: 10001-UP
1шт.
11
0
SPRING,RELAY
SN: 10001-UP
1шт.
11
0
SPRING,RETURN
SN: 10001-UP
1шт.
11
0
SPRING,INNER
SN: 10001-UP
1шт.
11
0
SPRING,OUTER
SN: 10001-UP
1шт.
11
0
SPRING,LOWER VALVE
SN: 10001-UP
1шт.
11
0
SPRING,RETAINING
SN: 10001-19999
1шт.
12
423-35-15110
SERVICE KIT,AIR DRYER
SN: 10001-UP
1шт.
12
421-35-15470
FILTER
SN: 10001-UP
1шт.
12
421-35-15480
GASKET
SN: 10001-UP
1шт.
12
421-35-15460
GASKET
SN: 10001-UP
1шт.
12
421-35-15450
FILTER
SN: 10001-UP
2шт.
12
421-35-15360
DESICCANT
SN: 10001-UP
1шт.
12
421-35-15370
RING,SEAL
SN: 10001-UP
1шт.
12
421-35-15620
O-RING,COVER
SN: 10001-UP
1шт.
12
421-35-16500
O-RING
SN: 10001-UP
1шт.
12
423-35-16130
O-RING,VALVE
SN: 10001-UP
1шт.
12
423-35-16120
O-RING,VALVE
SN: 10001-UP
1шт.
12
423-35-16110
O-RING,VALVE
SN: 10001-UP
1шт.
12
423-35-16140
VALVE ASS'Y
SN: 10001-UP
1шт.
13
424-35-05112
SERVICE KIT,BRAKE CHAMBER
SN: 20365-UP
2шт.
13
0
SERVICE KIT,BRAKE CHAMBER
SN: 10047-20364
2шт.
13
424-35-05110
SERVICE KIT,BRAKE CHAMBER
SN: 10001-10046
2шт.
13
424-35-15590
RING
SN: 10001-UP
1шт.
13
424-35-15440
PACKING
SN: 10001-UP
2шт.
13
424-35-15450
SEAT
SN: 10001-UP
1шт.
13
424-35-15460
PACKING
SN: 10001-UP
1шт.
13
07000-01007
O-RING
SN: 10001-UP
1шт.
13
424-35-15420
RING
SN: 10001-UP
1шт.
13
424-35-15410
PACKING
SN: 10001-UP
1шт.
13
07000-02012
O-RING
SN: 10001-UP
1шт.
13
424-35-15480
O-RING
SN: 10001-UP
1шт.
13
424-35-15531
VALVE
SN: 20365-UP
1шт.
13
0
VALVE
SN: 10001-20364
1шт.
13
424-35-15540
SPRING
SN: 10001-UP
1шт.
13
424-35-15510
PACKING
SN: 10001-UP
1шт.
13
424-35-15561
O-RING
SN: 10047-UP
1шт.
13
424-35-15560
O-RING
SN: 10001-10046
1шт.
14
424-35-05120
SERVICE KIT,SLACK ADJUSTER
SN: 10001-UP
2шт.
14
424-35-15280
O-RING,VALVE
SN: 10001-UP
1шт.
14
424-35-15250
COVER,VALVE
SN: 10001-UP
2шт.
14
424-35-15240
O-RING,PISTON
SN: 10001-UP
2шт.
14
424-35-15260
O-RING,CYLINDER
SN: 10001-UP
2шт.
15
421-64-05110
SERVICE KIT,STEERING DEMAND VALVE
SN: 20001-UP
1шт.
15
421-64-15780
O-RING
SN: 20001-UP
2шт.
15
421-64-15790
O-RING
SN: 20001-UP
2шт.
15
421-64-15870
O-RING
SN: 20001-UP
2шт.
15
421-64-15470
O-RING
SN: 20001-UP
1шт.
15
421-64-15480
RING,BACK-UP
SN: 20001-UP
1шт.
15
421-64-15460
O-RING
SN: 20001-UP
2шт.
15
421-64-15850
O-RING
SN: 20001-UP
1шт.
15
421-64-15820
O-RING
SN: 20001-UP
1шт.
16
416-64-15500
SERVICE KIT,STEERING VALVE
SN: 20001-UP
1шт.
16
416-64-15520
O-RING
SN: 20001-UP
3шт.
16
416-64-15450
O-RING
SN: 20001-UP
1шт.
16
416-64-15430
O-RING
SN: 20001-UP
1шт.
16
416-64-15580
SEAL
SN: 20001-UP
1шт.
16
416-64-15590
RING,BACK-UP
SN: 20001-UP
1шт.
16
416-64-15570
O-RING
SN: 20001-UP
1шт.
16
416-64-15560
O-RING
SN: 20001-UP
1шт.
16
416-64-15550
SEAL,DUST
SN: 20001-UP
1шт.
17
421-64-05100
SERVICE KIT,STOP VALVE
SN: 20001-UP
1шт.
17
421-64-15920
SEAL
SN: 20001-UP
1шт.
17
421-64-15930
WIPER
SN: 20001-UP
1шт.
17
421-64-15550
O-RING
SN: 20001-UP
1шт.
18
707-99-43530
SERVICE KIT,LOG GRAPPLE CYLINDER
SN: 20001-UP
1шт.
18
07145-00070
SEAL,DUST
SN: 20001-UP
2шт.
18
707-51-70020
PACKING,ROD
SN: 20001-UP
1шт.
18
07000-03090
O-RING
SN: 20001-UP
1шт.
18
144-63-95170
SEAL,DUST
SN: 20001-UP
1шт.
18
07000-12125
O-RING
SN: 20001-UP
1шт.
18
07146-02126
RING,BACK-UP
SN: 20001-UP
1шт.
18
07145-00070
SEAL,DUST
SN: 20001-UP
2шт.
18
707-44-13180
RING,PISTON
SN: 20001-UP
1шт.
18
07155-01330
RING,WEAR
SN: 20001-UP
1шт.
Заказать запчасти
