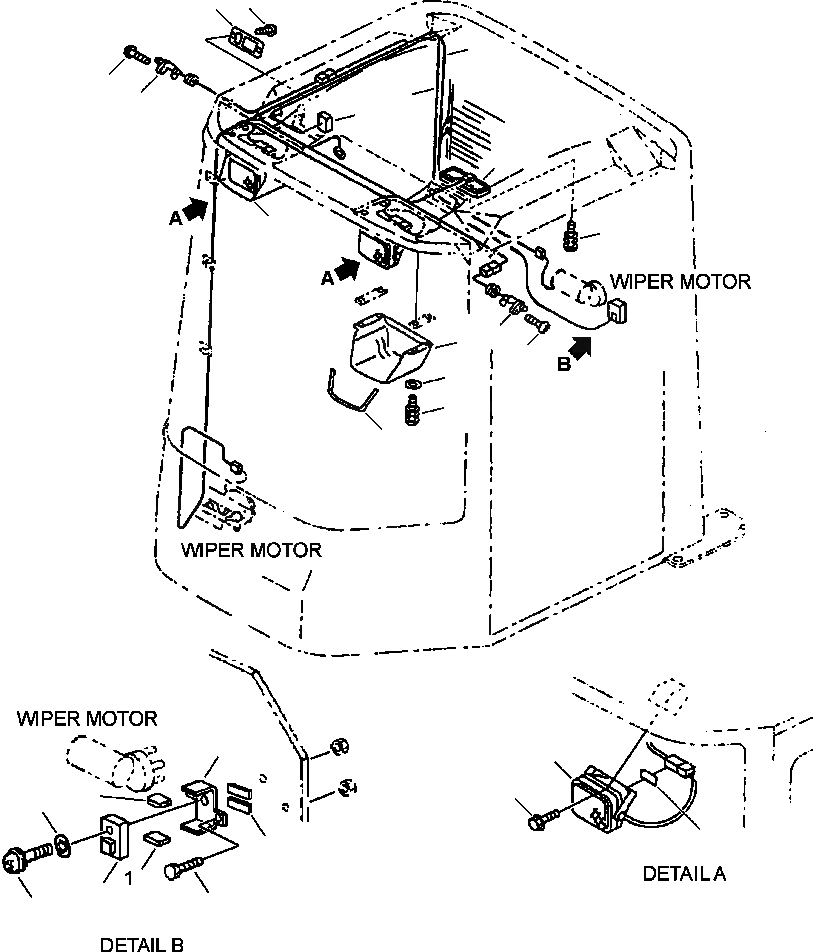

Запчасти Komatsu WA450-3MC FIG. K-7A КАБИНА - EARLIER ВЕРСИЯ - ЭЛЕКТРИКА КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

CAB ASSEMBLY - ROPS(SEE FIG. K0210-01A0)

SN: A31001-A31077-UP

-1шт.

1

421-06-23360

LAMP ASSEMBLY, WORK

SN: A31001-UP-UP

2шт.

|$2

421-06-23320

LENS

SN: A31001-UP-UP

1шт.

|$3

421-06-23330

BULB, 70 W

SN: A31001-UP-UP

1шт.

2

01435-01220

BOLT

SN: A31001-UP-UP

2шт.

3

421-56-21680

FASTENER

SN: A31001-UP-UP

4шт.

4

421-56-21330

COVER, L.H. - EARLIER VERSION

SN: A31001-UP

1шт.

|$7

421-56-21340

COVER, R.H. - EARLIER VERSION

SN: A31001-UP

1шт.

|$9

OR

-1шт.

4

424-926-2260

COVER - CURRENT VERSION

2шт.

5

421-56-21350

SEAL - CURRENT VERSION

2шт.

6

01023-70512

SCREW

SN: A31001-UP-UP

8шт.

7

01642-20608

WASHER

SN: A31001-UP-UP

8шт.

8

421-56-21420

PANEL, SWITCH

SN: A31001-UP-UP

2шт.

9

01224-70516

SCREW

SN: A31001-UP-UP

4шт.

10

421-06-26210

LAMP ASSEMBLY, ROOM

SN: A31001-UP-UP

1шт.

|$18

421-06-26250

LENS

SN: A31001-UP-UP

2шт.

|$19

421-06-26260

BULB

SN: A31001-UP-UP

2шт.

11

01023-70512

SCREW

SN: A31001-UP-UP

2шт.

12

421-56-21730

SWITCH, DOOR

SN: A31001-UP-UP

2шт.

13

01220-70512

SCREW

SN: A31001-UP-UP

2шт.

N/I

417-56-21150

CABLE - EARLIER VERSION

1шт.

14

424-926-2320

WIRING HARNESS - EARLIER VERSION

1шт.

|$26

OR

-1шт.

14

419-926-A840

WIRING HARNESS - CURRENT VERSION

1шт.

15

417-06-A1350

WIRING HARNESS - DEFROSTER

SN: A31001-A31190-UP

1шт.

16

417-06-A1400

SWITCH - DEFROSTER

SN: A31001-UP-UP

1шт.

17

417-06-A1370

TIMER

SN: A31001-A31190-UP

1шт.

18

419-926-AC70

PLATE, HOLDER

SN: A31001-A31190-UP

1шт.

19

419-926-AC80

SHEET, RUBBER

SN: A31001-A31190-UP

2шт.

20

01023-60535

SCREW

SN: A31001-A31190-UP

1шт.

21

01643-30623

WASHER, FLAT

SN: A31001-UP-UP

1шт.

22

01435-00610

BOLT

SN: A31001-A31190-UP

2шт.

23

421-09-12780

STRIP, CUSHION

SN: A31001-A31190-UP

2шт.

|$38

-1шт.

|$39

F1 - SEE PARTS AND SERVICE NEWS AA99162 WHEN THE WORK LIGHT IS OR HASTO BE RELOCATED FROM THE INSIDE OF THE CAB TO THE OUTSIDE OF THE CAB.

-1шт.

|$41

-1шт.

|$42

F2 - USE OR REORDER P/N 419-926-A841 FOR WIRING HARNESS WITH INSULATING TAPE.

-1шт.

|$43

-1шт.
