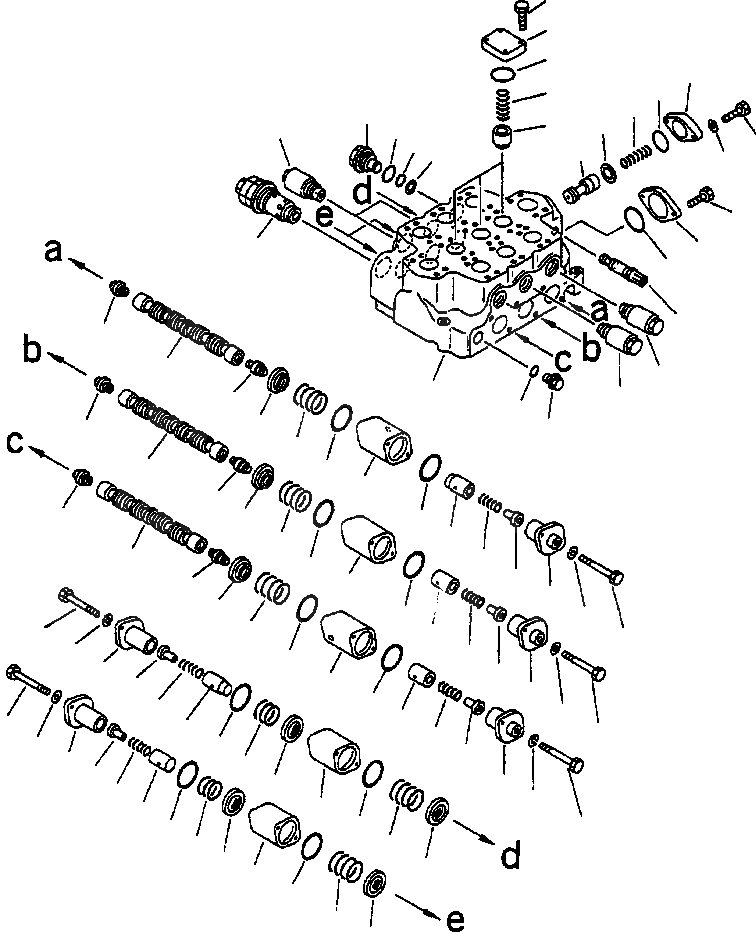

Запчасти Komatsu WA450-3L FIG. H-A ОБОРУД-Е УПРАВЛЯЮЩ. КЛАПАН - COMPLETE ASSEMBLY - THREE-СЕКЦ. ГИДРАВЛИКА

|$0

709-13-12100

VALVE ASSEMBLY, THREE-SPOOL CONTROL

SN: A30001-UP-UP

1шт.

1

NSS

BODY, VALVE

SN: A30001-UP-UP

1шт.

2

709-94-11260

PLUG

SN: A30001-UP-UP

1шт.

3

07000-12018

ORING

SN: A30001-UP-UP

1шт.

4

07001-02018

RING, BACKUP

SN: A30001-UP-UP

1шт.

5

07002-03634

ORING

SN: A30001-UP-UP

1шт.

6

700-22-11370

PLUG

SN: A30001-UP-UP

1шт.

7

07002-02434

ORING

SN: A30001-UP-UP

1шт.

8

NSS

SPOOL, ATTACHMENT

SN: A30001-UP-UP

1шт.

9

NSS

SPOOL, DUMP

SN: A30001-UP-UP

1шт.

10

NSS

SPOOL, LIFT

SN: A30001-UP-UP

1шт.

11

709-12-12241

PLUG

SN: A30001-UP-UP

6шт.

12

709-12-11211

RETAINER

SN: A30001-UP-UP

4шт.

13

709-12-13220

RETAINER

SN: A30001-UP-UP

2шт.

14

709-12-13230

RETAINER

SN: A30001-UP-UP

1шт.

15

709-12-11260

RETAINER

SN: A30001-UP-UP

2шт.

16

709-12-11760

SPRING

SN: A30001-UP-UP

2шт.

17

709-12-13260

SPRING

SN: A30001-UP-UP

1шт.

18

709-12-11721

SPRING

SN: A30001-UP-UP

2шт.

19

709-12-13280

SPRING

SN: A30001-UP-UP

1шт.

20

709-12-11711

SPRING

SN: A30001-UP-UP

2шт.

21

709-12-13270

SPRING

SN: A30001-UP-UP

1шт.

22

709-12-12230

PISTON

SN: A30001-UP-UP

4шт.

23

709-12-13240

PISTON

SN: A30001-UP-UP

2шт.

24

709-12-11810

SPACER

SN: A30001-UP-UP

6шт.

25

709-12-11730

SPRING

SN: A30001-UP-UP

4шт.

26

709-12-13250

SPRING

SN: A30001-UP-UP

2шт.

27

709-12-11320

CASE

SN: A30001-UP-UP

2шт.

28

709-12-11310

CASE

SN: A30001-UP-UP

1шт.

29

709-12-11310

CASE

SN: A30001-UP-UP

3шт.

30

709-12-12290

SLEEVE

SN: A30001-UP-UP

4шт.

31

709-12-13210

SLEEVE

SN: A30001-UP-UP

2шт.

32

07000-02065

ORING

SN: A30001-UP-UP

12шт.

33

01011-51020

BOLT

SN: A30001-UP-UP

12шт.

34

01602-21030

WASHER, SPRING

SN: A30001-UP-UP

12шт.

35

709-12-11590

VALVE

SN: A30001-UP-UP

1шт.

36

709-12-11520

SEAL

SN: A30001-UP-UP

1шт.

37

709-12-11530

SPRING

SN: A30001-UP-UP

1шт.

38

709-12-11540

FLANGE

SN: A30001-UP-UP

1шт.

39

07000-13048

ORING

SN: A30001-UP-UP

1шт.

40

01010-81450

BOLT

SN: A30001-UP-UP

2шт.

41

01643-31445

WASHER

SN: A30001-UP-UP

2шт.

42

709-12-11611

PLATE

SN: A30001-UP-UP

1шт.

43

07000-02060

ORING

SN: A30001-UP-UP

1шт.

44

01010-81425

BOLT

SN: A30001-UP-UP

2шт.

45

709-12-11411

VALVE, CHECK

SN: A30001-UP-UP

3шт.

46

709-12-11430

SPRING

SN: A30001-UP-UP

3шт.

47

709-12-11440

PLATE

SN: A30001-UP-UP

3шт.

48

07000-13048

ORING

SN: A30001-UP-UP

3шт.

49

01010-81235

BOLT

SN: A30001-UP-UP

12шт.

50

VALVE ASSEMBLY, RELIEF (SEE FIG. H4200-01A1)

SN: A30001-UP-UP

-1шт.

51

VALVE ASSEMBLY, SUCTION AND SAFETY (SEE FIG. H4200-01A0)

SN: A30001-UP-UP

-1шт.

52

VALVE ASSEMBLY, SUCTION (SEE FIG. H4200-01A2)

SN: A30001-UP-UP

-1шт.

53

VALVE ASSEMBLY, FLOAT SELECTOR (SEE FIG. H4200-01A7)

SN: A30001-UP-UP

-1шт.

|$54

-1шт.

|$56

-1шт.
