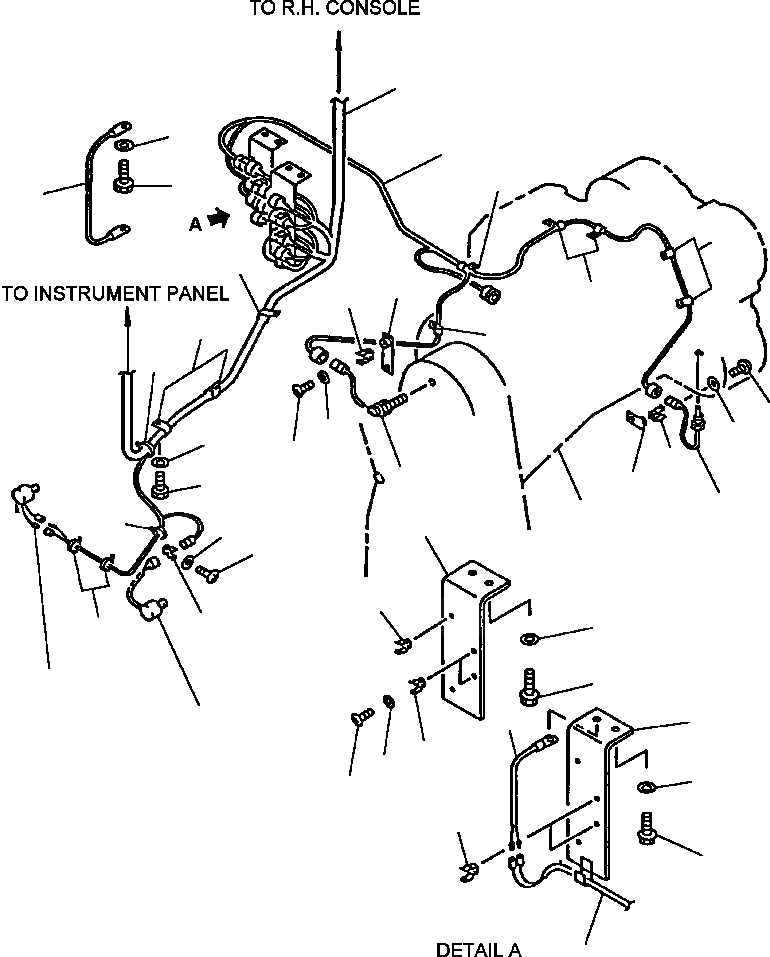

Запчасти Komatsu WA450-2 FIG NO. ЭЛЕКТРИКА - ПОЛ ЛИНИЯ КОМПОНЕНТЫ ДВИГАТЕЛЯ & ЭЛЕКТРИКА

1

421-06-18393

HARNESS, WIRING

1шт.

2

424-06-12811

HARNESS, WIRING

1шт.

|$2

08021-00400

CONNECTOR, MALE

2шт.

|$3

08031-10210

TERMINAL, RING

1шт.

3

421-06-12152

HARNESS, WIRING

1шт.

4

SENSOR, SPEED (SEE PG 01-104)

-29шт.

5

SENSOR, OIL TEMPERATURE (SEE PG 01-104)

-29шт.

6

421-06-12750

WIRE, GROUND

1шт.

|$8

08030-00010

TERMINAL, WIRE

2шт.

7

01010-81016

BOLT

2шт.

8

01643-31032

WASHER

2шт.

9

421-06-12660

BRACKET

a

1шт.

9

421-S99-1830

BRACKET (E.C.S.S.)

b

1шт.

10

421-06-12641

BRACKET

1шт.

11

01010-81225

BOLT

4шт.

12

01643-31232

WASHER

4шт.

13

08052-01711

CLIP

2шт.

14

08052-02411

CLIP

1шт.

15

01220-40608

SCREW

5шт.

16

01641-20608

WASHER

5шт.

17

424-06-12630

BRACKET

1шт.

18

421-06-12670

BRACKET

1шт.

19

08052-01711

CLIP

3шт.

20

01220-40608

SCREW

2шт.

21

01220-40612

SCREW

1шт.

22

01641-20608

WASHER

3шт.

23

08036-03014

CLIP

3шт.

24

01010-81016

BOLT

3шт.

25

01643-31032

WASHER

3шт.

26

08036-11214

CLIP

1шт.

27

08036-10814

CLIP

4шт.

28

424-06-12720

CLIP

1шт.

29

08034-00414

BAND

4шт.

30

08052-02711

CLIP

2шт.

31

SWITCH, TRANSMISSION CUT-OFF (SEE PG 01-046)

-29шт.

32

SWITCH, STOP LIGHT (SEE PG 03-060)

-29шт.

33

TRANSMISSION ASSEMBLY (SEE PG 02-016)

-29шт.

|$$38

-1шт.

|$38

F1 - SERVICE PARTS FOR WIRING HARNESS 421-06-18393

-1шт.

|$$40

-1шт.

|$40

HARNESS, WIRING

1шт.

|$41

22X-06-16120

CONNECTOR - AT POWER SUPPLY

1шт.

|$42

22X-06-16130

CONNECTOR - AT POWER SUPPLY

1шт.

|$43

419-09-11380

CONNECTOR - AT RTC NOS. 1, 2 AND 5 RELAYS,

-1шт.

|$$45

-1шт.

|$45

CAUTION LAMP RELAY, NEUTRALIZER RELAY, PARKING

-1шт.

|$46

BRAKE SAFETY RELAY AND BOOM AND BUCKET

-1шт.

|$47

POSITIONER RELAYS

8шт.

|$48

419-09-11390

CONNECTOR - AT RTC NOS. 0, 3, AND 4 RELAYS

3шт.

|$49

421-06-11960

RESISTOR

2шт.

|$50

421-06-11970

DIODE

14шт.

|$51

421-09-11420

CONNECTOR - AT RTC NOS. 0, 1, 2, 3, 4 AND 5

-1шт.

|$$53

-1шт.

|$53

RELAYS, CAUTION LAMP RELAY, BUCKET POSITIONER

-1шт.

|$54

SOLENOID, DIODES AND INSTRUMENT PANEL SPARE

-1шт.

|$55

SWITCH

15шт.

|$56

421-09-11620

CONNECTOR - AT DIODES, RESISTORS, BOOM

-1шт.

|$$58

-1шт.

|$58

POSITIONER SOLENOID, CENTRALIZED WARNING LAMP,

-1шт.

|$59

WORK LAMP SWITCH

7шт.

|$60

421-09-11640

CONNECTOR - AT TRANSMISSION CUT-OFF SWITCH AND

-1шт.

|$61

TURN SIGNAL HAZARD CONNECTION

2шт.

|$62

421-09-11650

TERMINAL - AT RTC NOS. 0, 1, 2, 3, 4 AND 5

-1шт.

|$$64

-1шт.

|$64

RELAYS, CAUTION LAMP RELAY, BUCKET POSITIONER

-1шт.

|$65

SOLENOID, DIODES, INSTRUMENT PANEL SPARE SWITCH,

-1шт.

|$66

RESISTORS, BOOM POSITIONER SOLENOID, CENTRALIZED

-1шт.

|$67

WARNING LAMP, WORK LAMP SWITCH, TRANSMISSION

-1шт.

|$68

CUT-OFF SWITCH, TURN SIGNAL HAZARD CONNECTION

-1шт.

|$69

AND PARKING BRAKE SWITCH. . . . . . . . . . . . . 59

-1шт.

|$70

421-09-11660

CONNECTOR - AT RESISTOR

1шт.

|$71

421-09-11830

CONNECTOR - AT PARKING BRAKE SWITCH

1шт.

|$72

424-06-12220

BRACKET, MOUNTING

1шт.

|$73

7827-10-1440

TERMINAL - AT CNP6 CONNECTION OF MONITOR PANEL

1шт.

|$74

7861-02-9210

CONNECTOR - AT CNP6 CONNECTION OF MONITOR PANEL

1шт.

|$75

7861-02-9220

CONNECTOR - AT CNP2 AND CNP5 CONNECTIONS OF

-1шт.

|$76

MONITOR PANEL

2шт.

|$77

7861-02-9230

CONNECTOR - AT CNP4 CONNECTION OF MONITOR PANEL

1шт.

|$78

7861-02-9240

CONNECTOR - AT CNP1 AND CNP3 CONNECTIONS OF

-1шт.

|$79

MONITOR PANEL

2шт.

|$80

7861-02-9320

PLATE - AT CNP2 AND CNP5 CONNECTIONS OF

-1шт.

|$81

MONITOR PANEL

4шт.

|$82

7861-02-9330

PLATE - AT CNP4 CONNECTION OF MONITOR PANEL

3шт.

|$83

7861-02-9340

PLATE - AT CNP1 AND CNP3 CONNECTIONS OF

-1шт.

|$84

MONITOR PANEL

4шт.

|$85

7861-02-9410

TERMINAL - AT CNP1, CNP2, CNP3, CNP4 AND CNP5

-1шт.

|$$87

-1шт.

|$87

CONNECTIONS OF MONITOR PANEL. . . . . . . . . . . 52

-1шт.

|$88

08021-00400

CONNECTOR - AT WARNING BUZZER AND STOP LIGHT

-1шт.

|$89

SWITCH

2шт.

|$90

08022-04001

CONNECTOR - AT WARNING BUZZER, STOP LIGHT

-1шт.

|$$92

-1шт.

|$92

SWITCH, EMERGENCY STEERING, SPARE, HORN AND

-1шт.

|$93

FUSE BOX II

7шт.

|$94

08022-04005

CONNECTOR - AT CIGARETTE LIGHTER

1шт.

|$95

08022-14001

CONNECTOR - AT MAIN SWITCH

1шт.

|$96

08027-10660

BODY, CONNECTOR - AT FRONT WIPER CONNECTION

1шт.

|$97

08027-11260

CONNECTOR - AT RTC SWITCH, FUSE CONNECTION,

-1шт.

|$98

ETHER START SWITCH AND MONITOR PANEL

6шт.

|$99

08027-11310

CONNECTOR - AT AIR GAUGE HARNESS

1шт.

|$100

08027-11360

CONNECTOR - AT WIPER SWITCH

1шт.

|$101

08027-12000

TERMINAL - AT RTC NOS. 0, 1, 2, 3, 4 AND 5

-1шт.

|$$103

-1шт.

|$103

RELAYS, CAUTION LAMP RELAY, NEUTRALIZER RELAY,

-1шт.

|$104

PARKING BRAKE SAFETY RELAY, BOOM AND BUCKET

-1шт.

|$105

POSITIONER RELAYS AND FRONT WIPER CONNECTION. . . 55

-1шт.

|$106

08022-14001

CONNECTOR

1шт.

|$107

08031-10512

CONNECTOR - AT CONSOLE BOX MOUNTING BOLT

1шт.

|$108

08034-00519

BAND - AT DIODES AND RESISTORS

11шт.

|$109

08050-00400

TERMINAL - AT REAR FRAME HARNESS

18шт.

|$110

08050-00500

TERMINAL - AT CAB HARNESS AND TRANSMISSION

-1шт.

|$$112

-1шт.

|$112

CONTROL SWITCH. . . . . . . . . . . . . . . . . . 20

-1шт.

|$113

08050-00600

PLUG - AT CAB HARNESS, REAR FRAME HARNESS, MAIN

-1шт.

|$$115

-1шт.

|$115

SWITCH AND TRANSMISSION CONTROL SWITCH. . . . . . 12

-1шт.

|$116

08050-02810

BODY, CONNECTOR - AT TRANSMISSION CUT-OFF SWITCH

1шт.

|$117

08050-03710

CONNECTOR - AT WINDOW WASHER

1шт.

|$118

08050-04200

O-RING - AT MAIN SWITCH

1шт.

|$119

08050-04300

GROMMET - AT MAIN SWITCH

1шт.

|$120

08050-04710

CONNECTOR - AT TRANSMISSION HARNESS - 4 TERMINAL

1шт.

|$121

08050-04810

CONNECTOR - AT FRONT FRAME HARNESS

1шт.

|$122

08050-08810

CONNECTOR - AT TRANSMISSION HARNESS - 8 TERMINAL

1шт.

|$123

08050-12010

CONNECTOR - AT REAR FRAME HARNESS - 12 TERMINAL

1шт.

|$124

08050-12020

CONNECTOR - AT REAR FRAME HARNESS - 12 TERMINAL

1шт.

|$125

08050-12110

BODY, CONNECTOR - AT TRANSMISSION CONTROL SWITCH

-1шт.

|$126

AND CAB HARNESS

2шт.

|$127

08050-12200

O-RING - AT REAR FRAME HARNESS AND TRANSMISSION

-1шт.

|$128

CONTROL SWITCH

3шт.

|$129

08050-12300

GROMMET - AT REAR FRAME HARNESS, TRANSMISSION

-1шт.

|$130

CONTROL SWITCH AND CAB HARNESS

4шт.

|$131

08050-12710

CONNECTOR - AT FUSE BOXES AND LAMP SWITCH

5шт.

|$132

08050-12720

CONNECTOR

1шт.

|$133

08050-12810

CONNECTOR - AT FRONT FRAME HARNESS

1шт.

|$134

08050-12820

CONNECTOR - AT REAR FRAME HARNESS - 12 TERMINAL

1шт.

|$135

421-06-18410

CABLE - 200 MM LONG

1шт.

|$136

08031-10205

TERMINAL, RING

1шт.

|$137

08021-10400

CONNECTOR, MALE

1шт.

|$$139

-1шт.

|$139

-1шт.

|$$141

-1шт.

|$141

F2 - SERVICE PARTS FOR WIRING HARNESS 421-06-12152

-1шт.

|$$143

-1шт.

|$143

HARNESS, WIRING

1шт.

|$144

281-06-14920

CLAMP

1шт.

|$145

283-06-16310

CONNECTOR - AT FLOOR HARNESS - 8 TERMINAL TYPE

1шт.

|$146

283-06-16360

O-RING - AT FLOOR HARNESS CONNECTOR

1шт.

|$147

283-06-16420

CONNECTOR - AT FLOOR HARNESS - 4 TERMINAL TYPE

1шт.

|$148

421-06-11970

DIODE

7шт.

|$149

421-09-11420

CONNECTOR

7шт.

|$150

421-09-11650

TERMINAL - AT DIODE CONNECTORS

14шт.

|$151

419-09-11360

CONNECTOR

1шт.

|$152

421-09-11920

PLUG

2шт.

|$153

582-06-11930

TERMINAL - AT FLOOR HARNESS CONNECTOR

8шт.

|$154

582-06-11960

CONNECTOR - AT TORQUE CONVERTER OIL TEMPERATURE

-1шт.

|$155

AND SPEEDOMETER SENSORS

2шт.

|$156

7816-14-1550

TERMINAL - AT FLOOR HARNESS CONNECTOR AND TORQUE

-1шт.

|$$158

-1шт.

|$158

CONVERTER OIL TEMPERATURE AND SPEEDOMETER

-1шт.

|$159

SENSORS

8шт.

|$160

08034-00519

BAND - AT DIODES

4шт.

|$161

08017-31002

CONDUIT

1шт.

|$162

08017-30704

CONDUIT

1шт.

|$163

08017-30709

CONDUIT

1шт.

|$164

08017-30701

CONDUIT

1шт.

|$165

7861-02-9240

CONNECTOR - AT CNP1 AND CNP3 CONNECTIONS OF

-1шт.

|$166

MONITOR PANEL

2шт.

|$167

7861-02-9320

PLATE - AT CNP2 AND CNP5 CONNECTIONS OF

-1шт.

|$168

MONITOR PANEL

4шт.

|$169

7861-02-9330

PLATE - AT CNP4 CONNECTION OF MONITOR PANEL

3шт.

|$170

7861-02-9340

PLATE - AT CNP1 AND CNP3 CONNECTIONS OF

-1шт.

|$171

MONITOR PANEL

4шт.

|$172

7861-02-9410

TERMINAL - AT CNP1, CNP2, CNP3, CNP4 & CNP5

-1шт.

|$$174

-1шт.

|$174

CONNECTIONS OF MONITOR PANEL. . . . . . . . . . . 52

-1шт.

|$175

08021-00400

CONNECTOR - AT WARNING BUZZER AND STOP LIGHT

-1шт.

|$176

SWITCH

2шт.

|$177

08022-04001

CONNECTOR - AT WARNING BUZZER, STOP LIGHT

-1шт.

|$$179

-1шт.

|$179

SWITCH, EMERGENCY STEERING, SPARE, HORN AND

-1шт.

|$180

FUSE BOX II

7шт.

|$181

08022-04005

CONNECTOR - AT CIGARETTE LIGHTER

1шт.

|$182

08022-14001

CONNECTOR - AT MAIN SWITCH

1шт.

|$183

08027-10660

BODY, CONNECTOR - AT FRONT WIPER CONNECTION

1шт.

|$184

08027-11260

CONNECTOR - AT RTC SWITCH, FUSE CONNECTION,

-1шт.

|$185

ETHER START SWITCH AND MONITOR PANEL

6шт.

|$186

08027-11310

CONNECTOR - AT AIR GAUGE HARNESS

1шт.

|$187

08027-11360

CONNECTOR - AT WIPER SWITCH

1шт.

|$188

08027-12000

TERMINAL - AT RTC NOS. 0, 1, 2, 3, 4 AND 5

-1шт.

|$$190

-1шт.

|$190

RELAYS, CAUTION LAMP RELAY, NEUTRALIZER RELAY,

-1шт.

|$191

PARKING BRAKE SAFETY RELAY, BOOM AND BUCKET

-1шт.

|$192

POSITIONER RELAYS AND FRONT WIPER CONNECTION. . . 55

-1шт.

|$193

08022-14001

CONNECTOR

1шт.

|$194

08031-10512

CONNECTOR - AT CONSOLE BOX MOUNTING BOLT

1шт.

|$195

08034-00519

BAND - AT DIODES AND RESISTORS

11шт.

|$196

08050-00400

TERMINAL - AT REAR FRAME HARNESS

18шт.

|$197

08050-00500

TERMINAL - AT CAB HARNESS AND TRANSMISSION

-1шт.

|$$199

-1шт.

|$199

CONTROL SWITCH. . . . . . . . . . . . . . . . . . 20

-1шт.

|$200

08050-00600

PLUG - AT CAB HARNESS, REAR FRAME HARNESS, MAIN

-1шт.

|$$202

-1шт.

|$202

SWITCH AND TRANSMISSION CONTROL SWITCH. . . . . . 12

-1шт.

|$203

08050-02810

BODY, CONNECTOR - AT TRANSMISSION CUT-OFF SWITCH

1шт.

|$204

08050-03710

CONNECTOR - AT WINDOW WASHER

1шт.

|$205

08050-04200

O-RING - AT MAIN SWITCH

1шт.
