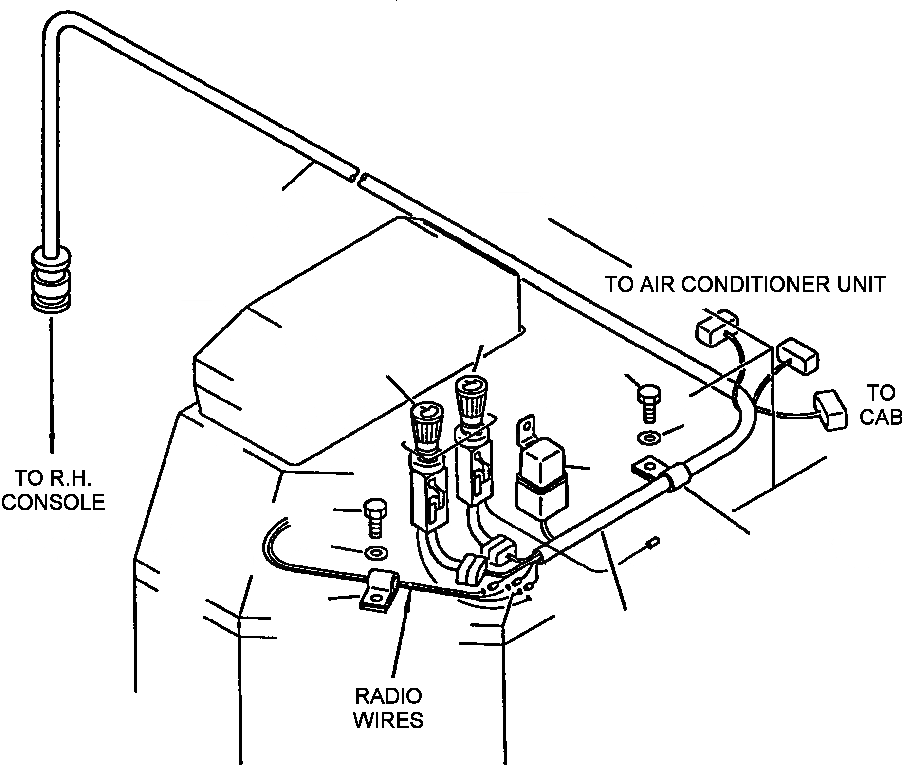

Запчасти Komatsu WA450-2 FIG NO. A ЭЛЕКТРИКА - ЛЕВ. КОНСОЛЬ ДЛЯ MACHINES EQUIPPED С КАБИНОЙ - заводской номер A7 И DOWN КОМПОНЕНТЫ ДВИГАТЕЛЯ & ЭЛЕКТРИКА

1

421-06-12581

HARNESS, WIRING

1шт.

2

RELAY, AIR CONDITIONER (SEE PG 05-148)

-29шт.

3

421-06-16141

SWITCH, FRONT WIPER

1шт.

4

421-06-16150

SWITCH, REAR WIPER

1шт.

5

08036-01814

CLIP

1шт.

6

01010-81020

BOLT

1шт.

7

01643-31032

WASHER

1шт.

8

08036-10814

CLIP

1шт.

9

01010-81020

BOLT

1шт.

10

01643-31032

WASHER

1шт.

|$$11

-1шт.

|$11

F1 - SERVICE PARTS FOR WIRING HARNESS 421-06-12581

-1шт.

|$$13

-1шт.

|$13

HARNESS, WIRING

1шт.

|$14

08021-00400

CONNECTOR - AT RADIO SPEAKER

1шт.

|$15

08022-04001

CONNECTOR - AT RADIO POWER SOURCE AND SPEAKER

2шт.

|$16

08027-02000

TERMINAL - AT REAR WIPER, CAB DOME LIGHT, CAB

-1шт.

|$$18

-1шт.

|$18

MOUNTED WORK LIGHT AND RADIO SPEAKER CONNECTORS . 10

-1шт.

|$19

08027-00620

CONNECTOR - FOR REAR WIPER AND CAB DOME LIGHT

1шт.

|$20

08027-00420

CONNECTOR - FOR CAB MOUNTED WORK LIGHT AND RADIO

-1шт.

|$21

SPEAKER

1шт.

|$22

421-09-11640

CONNECTOR - FOR REAR WIPER SWITCH

1шт.

|$23

421-09-11650

TERMINAL - AT FRONT AND REAR WIPER

-1шт.

|$24

SWITCH CONNECTORS

9шт.

|$25

421-09-11660

CONNECTOR - AT FRONT WIPER SWITCH

1шт.

|$26

582-06-11930

TERMINAL - AT FLOOR HARNESS CONNECTOR

12шт.

|$27

22W-07-11980

CONNECTOR - AT FLOOR HARNESS

1шт.

|$28

22W-07-11990

CAP - AT FLOOR HARNESS CONNECTOR

1шт.

|$29

22W-07-12110

O-RING - AT FLOOR HARNESS CONNECTOR

1шт.

|$30

08027-11310

CONNECTOR - AT FLOOR HARNESS

1шт.

|$31

08036-41210

CLIP

1шт.
