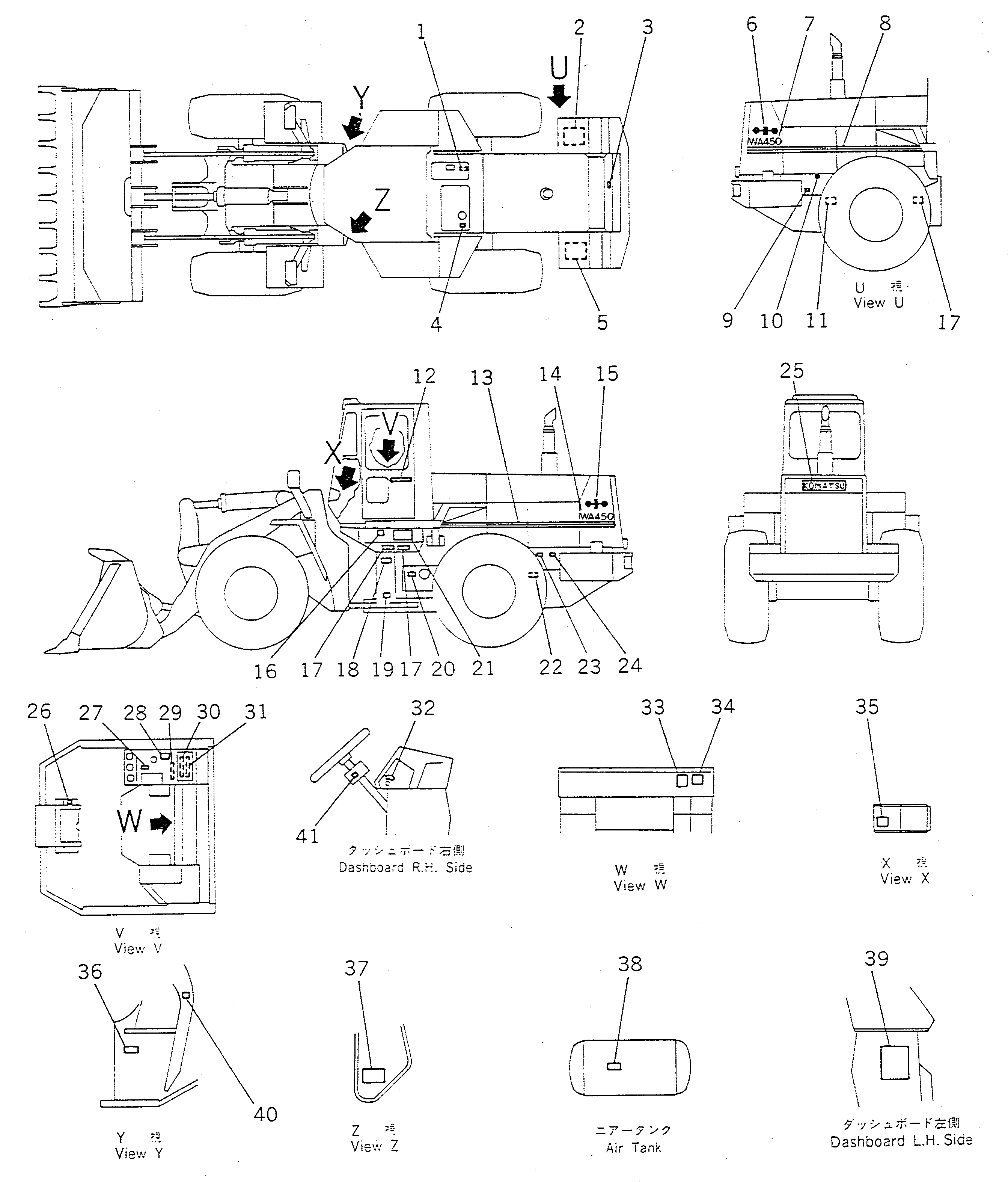

Запчасти Komatsu WA450-1 МАРКИРОВКА (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

424-93-11280

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

2

421-93-11453

PLATE¤ CAUTION,BATTERY

SN: 20001-UP

1шт.

3

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

4

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

5

421-93-11452

PLATE¤ CAUTION,BATTERY

SN: 10001-UP

1шт.

6

421-93-11541

PLATE¤ MARK,SYMBOL

SN: 10001-UP

1шт.

7

421-93-11561

PLATE¤ MARK,WA450

SN: 10001-UP

1шт.

8

423-93-11142

PLATE¤ STRIPE

SN: 10001-UP

1шт.

9

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: 10001-UP

1шт.

10

362-54-17180

PLATE¤ CAUTION,FAN

SN: 10001-UP

1шт.

11

421-93-11350

PLATE¤ INSTRUCTION,ENGINE OIL DRAIN

SN: 10001-UP

1шт.

12

417-93-11280

PLATE¤ NAME,AVANCE

SN: 20001-UP

2шт.

13

423-93-11142

PLATE¤ STRIPE

SN: 10001-UP

1шт.

14

421-93-11561

PLATE¤ MARK,WA450

SN: 10001-UP

1шт.

15

421-93-11541

PLATE¤ MARK,SYMBOL

SN: 10001-UP

1шт.

16

362-54-17230

PLATE¤ CAUTION,HOSE CHANGE

SN: 10001-UP

1шт.

17

09152-00100

PLATE¤ SAFETY,AIR TANK¤ DRAIN

SN: 10001-UP

3шт.

18

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

2шт.

19

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

20

424-93-11330

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

21

421-93-11114

CHART¤ OIL

SN: 20001-UP

1шт.

22

421-93-11810

PLATE¤ INSTRUCTION,RADIATOR WATER DRAIN

SN: 10001-UP

1шт.

23

421-93-12180

PLATE¤ INSTRUCTION,REMOTE GREASE¤TORQUE CONVERTER

SN: 20001-UP

1шт.

24

421-93-12190

PLATE¤ INSTRUCTION,REMOTE GREASE¤ REAR AXLE

SN: 20001-UP

1шт.

25

09690-50400

PLATE¤ MARK,KOMATSU

SN: 10001-UP

1шт.

26

424-93-11360

PLATE¤ OPERATING,WORK LAMP

SN: 10001-UP

1шт.

27

09685-00003

PLATE¤ OPERATING,LEVER LOCK

SN: 10001-UP

1шт.

28

421-93-11132

PLATE¤ OPERATING,BUCKET CONTROL LEVER

SN: 10001-UP

1шт.

29

421-93-11230

PLATE¤ OPERATING,RELAY

SN: 20001-UP

1шт.

30

424-93-11241

PLATE¤ OPERATING,FUSE

SN: 20001-UP

1шт.

31

424-93-11251

PLATE¤ OPERATING,FUSE

SN: 20001-UP

1шт.

32

09683-30070

PLATE¤ OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

33

421-93-11181

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

34

362-54-17150

PLATE¤ CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

35

419-93-11890

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 20001-UP

1шт.

36

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|36

04418-13060

SCREW

SN: 10001-UP

4шт.

37

421-93-11371

PLATE¤ OPERATING,MONITOR PANEL

SN: 20132-UP

1шт.

|37

0

PLATE¤ OPERATING,MONITOR PANEL

SN: 10001-20131

1шт.

38

424-93-11120

PLATE¤ CAUTION,AIR TANK

SN: 20001-UP

2шт.

39

421-93-11120

PLATE¤ DATA

SN: 10001-UP

1шт.

40

421-93-11361

PLATE,P.P.C PIPING

SN: 20132-UP

1шт.

41

421-93-12290

PLATE¤ OPERATING,LAMP AND TURN SIGNAL

SN: 20146-UP

1шт.
