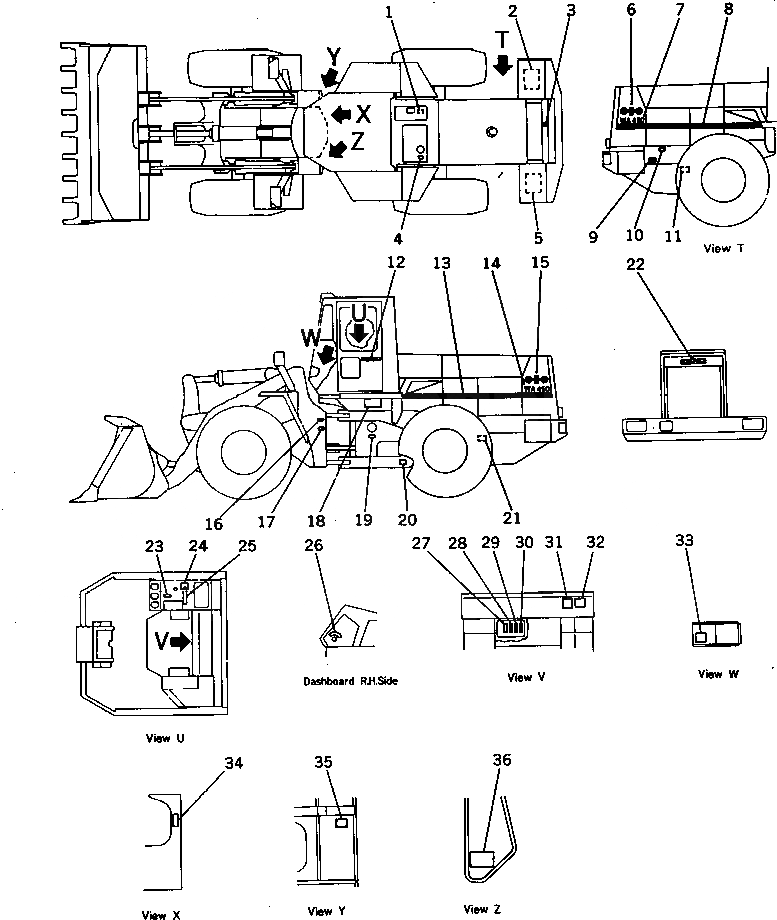

Запчасти Komatsu WA450-1 МАРКИРОВКА (АНГЛ.)(№-9999) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-19999

1шт.

2

421-93-11630

PLATE, CAUTION,BATTERY

SN: 10001-@

1шт.

3

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

4

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

5

421-93-11630

PLATE, CAUTION,BATTERY

SN: 10001-19999

1шт.

6

421-93-11541

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

7

421-93-11561

PLATE, MARK,WA450

SN: 10001-@

1шт.

8

423-93-11142

PLATE, STRIPE

SN: 10001-@

1шт.

9

09101-03000

PLATE, CAUTION,FUEL

SN: 10001-19999

1шт.

10

362-54-27390

PLATE, CAUTION,FAN

SN: 10001-@

1шт.

11

421-93-11380

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-@

1шт.

12

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

2шт.

13

423-93-11142

PLATE, STRIPE

SN: 10001-@

1шт.

14

421-93-11561

PLATE, MARK,WA450

SN: 10001-@

1шт.

15

421-93-11541

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

16

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-@

2шт.

17

09152-03000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10001-@

1шт.

18

421-93-11622

CHART, OIL

SN: 10001-19999

1шт.

18

0

CHART, OIL

SN: (10001-11037)

1шт.

19

425-93-11290

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-@

1шт.

20

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

21

421-93-11970

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: 10001-@

1шт.

22

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

23

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-@

1шт.

24

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 10001-@

1шт.

25

425-93-11330

PLATE, OPERATING,RELAY

SN: 10001-19999

1шт.

26

09683-30070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-@

1шт.

27

421-93-11640

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

28

421-93-11650

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

29

421-93-11660

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

30

421-93-11670

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

31

421-93-11940

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

32

362-98-12150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-@

1шт.

33

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-@

1шт.

33

0

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: (10001-10567)

1шт.

34

421-93-11680

PLATE,P.O.C. PIPING

SN: 10001-19999

1шт.

35

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

35

04418-13060

SCREW

SN: 10001-@

4шт.

36

423-93-11440

PLATE, OPERATING,MONITOR PANEL

SN: 10001-@

1шт.
