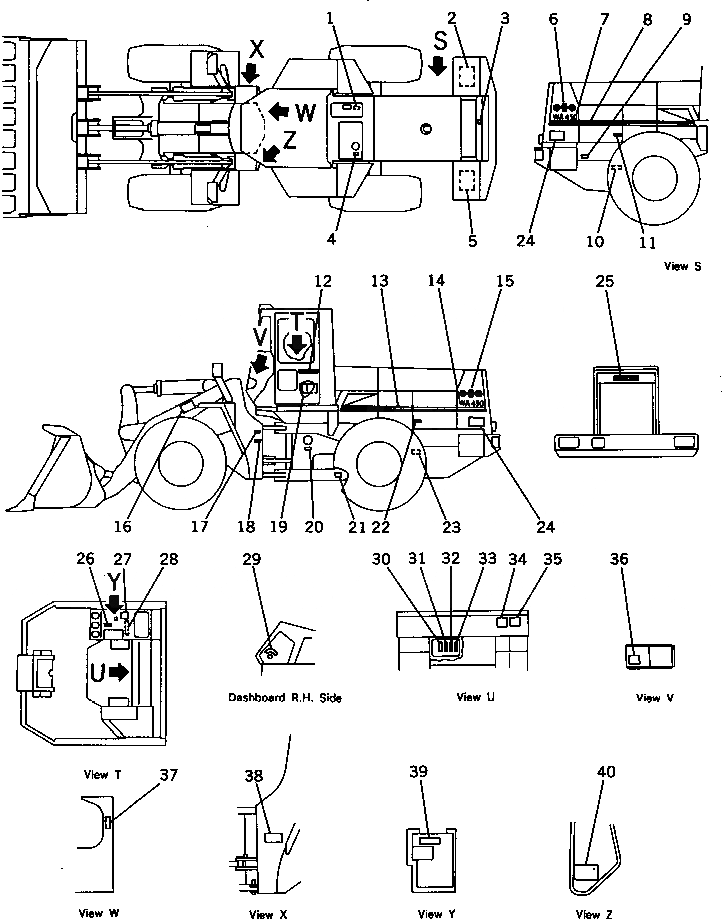

Запчасти Komatsu WA450-1 МАРКИРОВКА (TBG/ABE СПЕЦ-Я.)(№-9999) СПЕЦ. APPLICATION ЧАСТИ

1

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-19999

1шт.

2

421-93-11730

PLATE, CAUTION,BATTERY

SN: 10001-19999

1шт.

3

09668-02000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-19999

1шт.

4

09653-02000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-19999

1шт.

5

421-93-11730

PLATE, CAUTION,BATTERY

SN: 10001-19999

1шт.

6

421-93-11541

PLATE, MARK,SYMBOL

SN: 10001-19999

1шт.

7

421-93-11561

PLATE, MARK,WA450

SN: 10001-19999

1шт.

8

423-93-11142

PLATE, STRIPE

SN: 10001-19999

1шт.

9

09101-02000

PLATE, CAUTION,FUEL

SN: 10001-19999

1шт.

10

421-93-11710

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-19999

1шт.

11

20T-98-22330

PLATE, SAFETY,FAN

SN: 10001-19999

1шт.

12

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-19999

2шт.

13

423-93-11142

PLATE, STRIPE

SN: 10001-19999

1шт.

14

421-93-11561

PLATE, MARK,WA450

SN: 10001-19999

1шт.

15

421-93-11541

PLATE, MARK,SYMBOL

SN: 10001-19999

1шт.

16

419-93-11950

PLATE, CAUTION

SN: 10001-19999

2шт.

17

362-98-11620

PLATE, CAUTION,KEEP OUT

SN: 10001-19999

2шт.

18

09152-02000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10001-19999

1шт.

19

421-93-11722

CHART, OIL

SN: 10001-19999

1шт.

19

0

CHART, OIL

SN: (10001-11063)

1шт.

20

425-93-11320

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-19999

1шт.

21

362-98-11160

PLATE, CAUTION,FRAME LOCK

SN: 10001-19999

1шт.

22

20T-98-22330

PLATE, SAFETY,FAN

SN: 10001-19999

1шт.

23

421-93-11990

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: 10001-19999

1шт.

24

419-93-11950

PLATE, CAUTION

SN: 10001-19999

2шт.

25

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-19999

1шт.

26

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-19999

1шт.

27

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 10001-19999

1шт.

28

425-93-11350

PLATE, OPERATING,RELAY

SN: 10001-19999

1шт.

29

09683-21070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-19999

1шт.

30

421-93-11741

PLATE, OPERATING,BREAKER

SN: 10001-19999

1шт.

31

421-93-11751

PLATE, SAFETY,BREAKER

SN: 10001-19999

1шт.

32

421-93-11761

PLATE, CAUTION,BREAKER

SN: 10001-19999

1шт.

33

421-93-11771

PLATE, CAUTION,BREAKER

SN: 10001-19999

1шт.

34

419-93-11521

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-19999

1шт.

34

0

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: (10001-10444)

1шт.

35

362-98-11150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-19999

1шт.

36

419-93-11990

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-19999

1шт.

36

0

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: (10001-10630)

1шт.

37

421-93-11780

PLATE, OPERATING,P.O.C. PIPING

SN: 10001-19999

1шт.

38

09602-23635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-19999

1шт.

38

04418-13060

SCREW

SN: 10001-19999

4шт.

39

09685-00008

PLATE, OPERATING,PARKING BRAKE

SN: 10001-19999

1шт.

39

0

PLATE, OPERATING,PARKING BRAKE

SN: (10001-11325)

1шт.

40

423-93-11640

PLATE, OPERATING,MONITOR PANEL

SN: 10001-19999

1шт.
