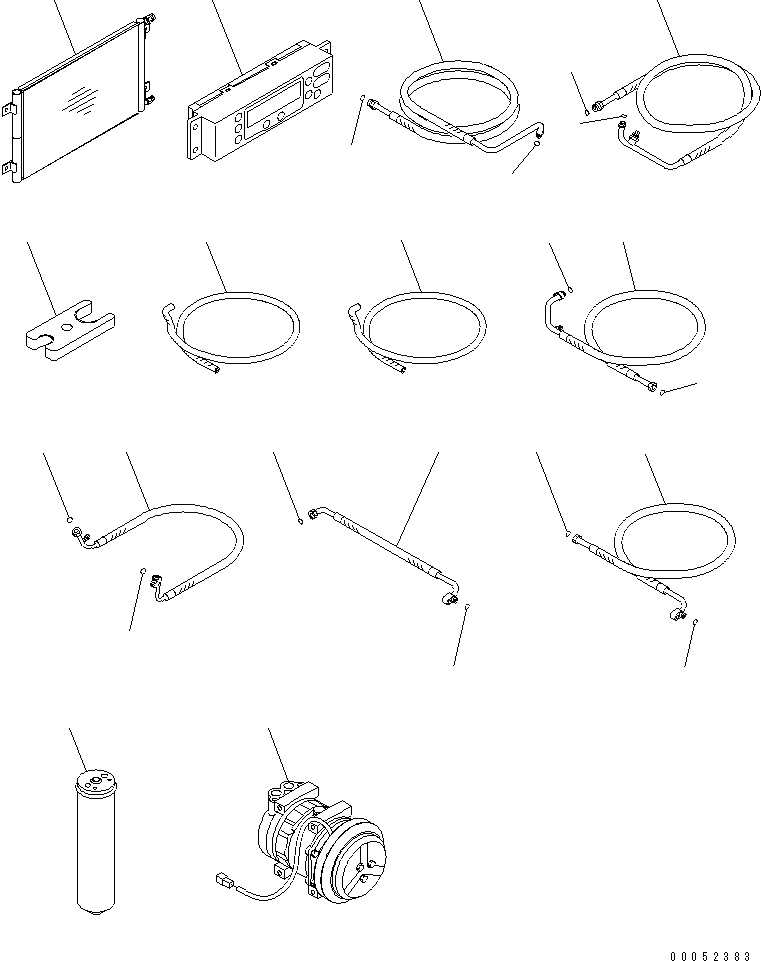

Запчасти Komatsu WA430-6 PACKAGE ЧАСТИ(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

56E-07-21132

CONDENSER ASS'Y,(SEE FIG. C0110-04A0)

SN: 65001-UP

1шт.

2

423-07-31563

CONTROL PANEL A.,(SEE FIG. K0210-20A0)

SN: 65402-UP

1шт.

2

423-07-31562

CONTROL PANEL A.,(SEE FIG. K0210-20A0)

SN: 65001-65401

1шт.

2

423-07-31841

CONTROL PANEL,(FOR AUTO AIR CON)(K0210-20A2)

SN: 65001-UP

1шт.

3

423-S62-4171

HOSE,(SEE FIG. K0210-38A0)

SN: 65001-UP

1шт.

4

AN51439-D0051

O-RING

SN: 65001-UP

2шт.

5

423-S62-4161

HOSE,(SEE FIG. K0210-38A0)

SN: 65001-UP

1шт.

6

AN51439-D0031

O-RING

SN: 65001-UP

2шт.

7

423-S62-3370

PLATE,(SEE FIG. K0210-38A0)

SN: 65001-UP

1шт.

8

423-07-31340

HOSE,(SEE FIG. K0210-38A0)

SN: 65001-UP

1шт.

9

423-07-31350

HOSE,(SEE FIG. K0210-38A0)

SN: 65001-UP

1шт.

10

424-S62-4234

HOSE,(SEE FIG. K0711-02A0)

SN: 65001-UP

1шт.

11

AN51439-D0051

O-RING

SN: 65001-UP

2шт.

12

424-S62-4214

HOSE,(SEE FIG. K0711-02A0)

SN: 65001-UP

1шт.

13

AN51439-D0041

O-RING

SN: 65001-UP

2шт.

14

424-S62-4223

HOSE,(SEE FIG. K0711-02A0)

SN: 65001-UP

1шт.

15

AN51439-D0031

O-RING

SN: 65001-UP

2шт.

16

424-S62-4243

HOSE,(SEE FIG. K0711-02A0)

SN: 65001-UP

1шт.

17

AN51439-D0031

O-RING

SN: 65001-UP

2шт.

18

423-07-31571

RECEIVER DRYER,(SEE FIG. C0110-05A0)

SN: 65001-UP

1шт.

19

423-S62-4330

COMPRESSOR ASS'Y,(SEE FIG. K0711-01A0)

SN: 65001-UP

1шт.
