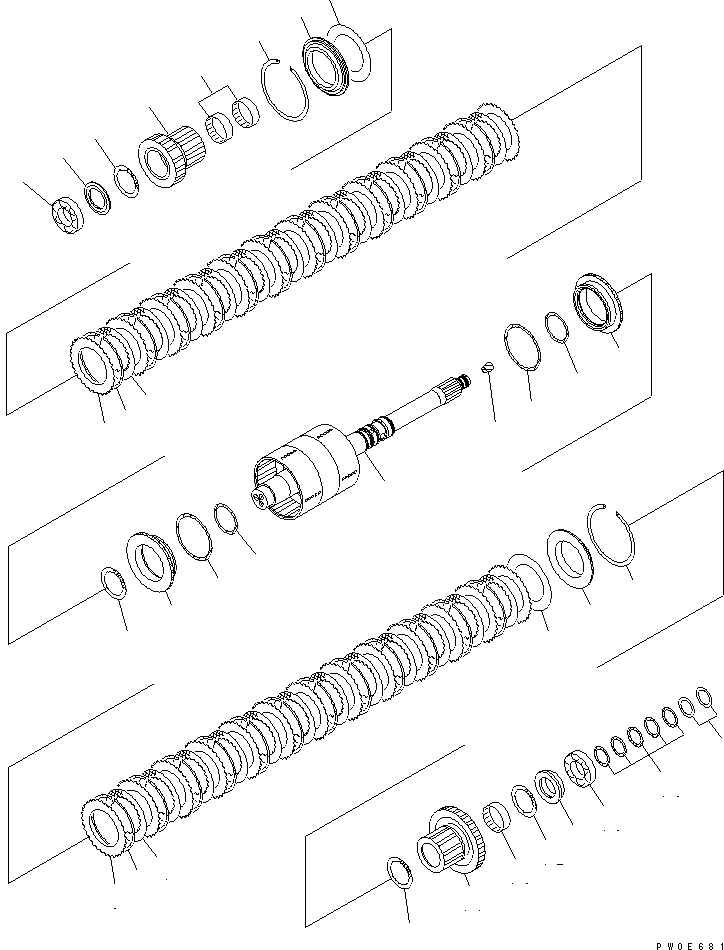

Запчасти Komatsu WA430-5 ТРАНСМИССИЯ (МУФТА ВПЕРЕД/РЕВЕРС) (С БЛОКИР.-UP) ТРАНСМИССИЯ

|1

714-17-20010

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: 60001-UP

1шт.

|1

714-17-20110

TRANSMISSION ASS'Y,(FOR TACHOGRAPH AND LOCK-UP)

SN: 60001-UP

1шт.

|1

714-17-20310

TRANSMISSION ASS'Y,(WITH LOCK-UP) (COLD)

SN: 60001-UP

1шт.

|1

714-17-20410

TRANSMISSION ASS'Y,(FOR TACHOGRAPH AND L/C) (C)

SN: 60001-UP

1шт.

|$$5

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A1.

-1шт.

|1

714-12-22050

CLUTCH,FORWARD AND REVERSE

SN: 60001-UP

1шт.

1

714-12-22151

SHAFT AND CYLINDER A

SN: 60001-UP

1шт.

|1

0

SHAFT,INPUT

SN: 60001-UP

1шт.

|1

0

SCREW

SN: 60001-UP

2шт.

|1

0

ORIFICE

SN: 60001-UP

1шт.

|1

0

HOUSING

SN: 60001-UP

1шт.

2

07043-70211

PLUG

SN: 60001-UP

1шт.

3

714-07-22652

PISTON,FOWARD AND REVERSE

SN: 60001-UP

2шт.

4

714-07-29720

DISC

SN: 60001-UP

24шт.

5

714-16-19730

PLATE,SEPARATE

SN: 60001-UP

26шт.

6

419-15-12133

SPRING,WAVE

SN: 60001-UP

24шт.

7

714-07-22720

PLATE

SN: 60001-UP

2шт.

8

714-07-22610

PLATE,END

SN: 60001-UP

2шт.

9

419-15-12140

RING,SNAP

SN: 60001-UP

2шт.

10

714-11-19230

RING,SEAL (K1)

SN: 60001-UP

2шт.

11

714-16-19210

RING,SEAL (K1)

SN: 60001-UP

2шт.

12

714-08-19570

WASHER,THRUST

SN: 60001-UP

4шт.

13

714-23-19430

BEARING,NEEDLE

SN: 60001-UP

3шт.

14

714-11-12720

SPACER

SN: 60001-UP

1шт.

15

714-07-22711

SPACER

SN: 60001-UP

1шт.

16

714-12-19380

BEARING

SN: 60001-UP

2шт.

17

714-12-22421

GEAR¤ 40 TEETH,FORWARD

SN: 60001-UP

1шт.

18

714-12-22411

GEAR¤ 31 TEETH,REVERSE

SN: 60001-UP

1шт.

19

714-19-19210

RING,SEAL (K1)

SN: 60001-UP

5шт.

20

714-21-19810

RING,SEAL

SN: 60001-UP

2шт.
