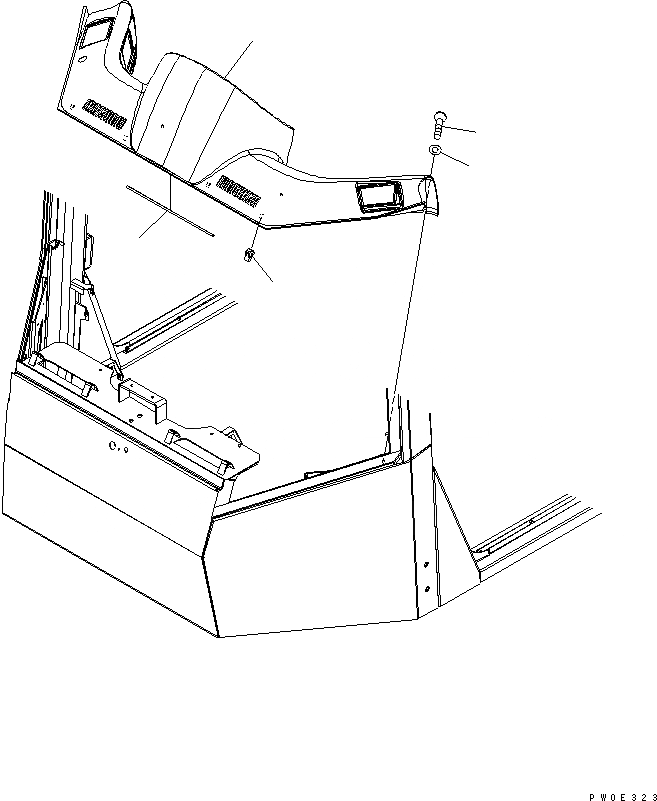

Запчасти Komatsu WA430-5 КАБИНА ROPS (ДЛЯ АВТОМАТИЧ. КОНДИЦ. ВОЗДУХА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

424-926-3090

ROPS CAB ASS'Y,(B+C+D+K)

SN: 60001-UP

1шт.

|1

424-926-3100

ROPS CAB ASS'Y,(B+C+D+E+K)

SN: 60001-UP

1шт.

|1

424-926-3200

ROPS CAB ASS'Y,(C+D+J+K)

SN: 60001-UP

1шт.

|1

424-926-3300

ROPS CAB ASS'Y,(B+C+D+H+K)

SN: 60001-UP

1шт.

|1

424-926-3400

ROPS CAB ASS'Y,(B+C+K)

SN: 60001-UP

1шт.

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.

-1шт.

|1

424-926-3500

ROPS CAB ASS'Y,(B+C+E+K)

SN: 60001-UP

1шт.

|1

424-926-3500

ROPS CAB ASS'Y,(B+C+E+K)

SN: 60001-UP

1шт.

|1

424-926-3600

ROPS CAB ASS'Y,(C+J+K)

SN: 60001-UP

1шт.

|1

424-926-3700

ROPS CAB ASS'Y,(B+C+H+K)

SN: 60001-UP

1шт.

|$$11

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A2.

-1шт.

|$$12

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|$$13

B = AM¤FM RADIO

-1шт.

|$$14

C = E.C.S.S

-1шт.

|$$15

D = KOMTRAX

-1шт.

|$$16

E = LOAD METER

-1шт.

|$$17

F = YELLOW LAMP

-1шт.

|$$18

H = A/C SIDE BLOW

-1шт.

|$$19

K = AUTO AIR CONDIT.

-1шт.

1

421-07-31730

COVER

SN: 60001-UP

1шт.

2

423-54-32920

CLIP

SN: 60001-UP

4шт.

3

23S-55-51970

WASHER

SN: 60001-UP

4шт.

4

01225-70620

SCREW

SN: 60001-UP

4шт.

5

421-925-3170

CUSHION

SN: 60001-UP

1шт.
