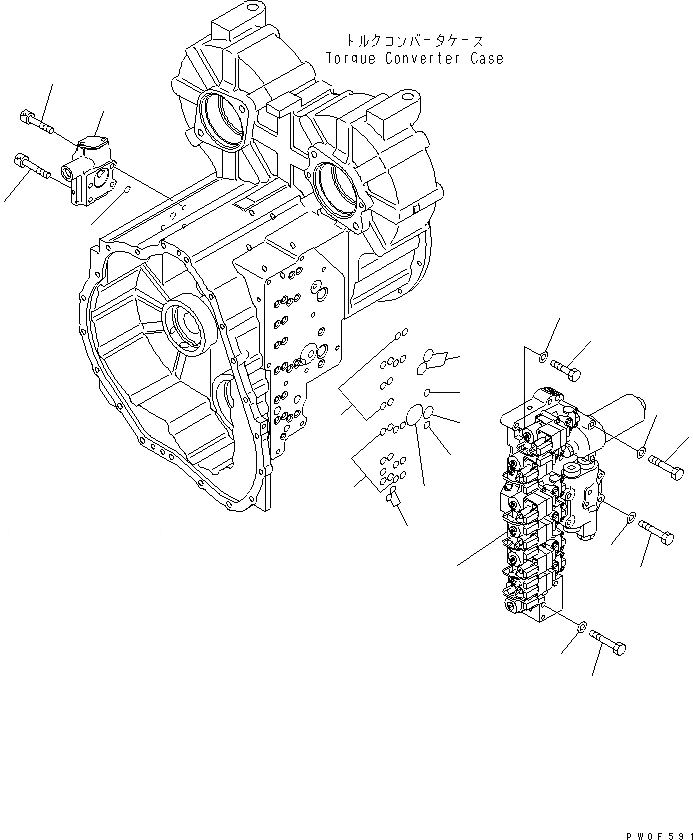

Запчасти Komatsu WA430-5 ТРАНСМИССИЯ (УПРАВЛЯЮЩ. КЛАПАН И КРЕПЛЕНИЕ) СИЛОВАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$9

714-17-20003

TRANSMISSION ASS'Y

SN: (110604)-UP

1шт.

|$10

714-17-20002

TRANSMISSION ASS'Y

SN: 60001-(110603)

1шт.

|$11

0

TRANSMISSION ASS'Y

SN: (60001-(110185))

1шт.

|$12

0

TRANSMISSION ASS'Y

SN: (60001-(110179))

1шт.

|$13

714-17-20303

TRANSMISSION ASS'Y,(WITH LOCKUP)

SN: (110604)-UP

1шт.

|$14

714-17-20302

TRANSMISSION ASS'Y,(WITH LOCKUP)

SN: 60001-(110603)

1шт.

|$15

0

TRANSMISSION ASS'Y,(WITH LOCKUP)

SN: (60001-(110185))

1шт.

|$16

0

TRANSMISSION ASS'Y,(WITH LOCKUP)

SN: (60001-(110179))

1шт.

|$$10

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.

-1шт.

|$18

714-17-20013

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: (110604)-UP

1шт.

|$19

714-17-20012

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: 60001-(110603)

1шт.

|$20

0

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: (60001-(110185))

1шт.

|$21

0

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: (60001-(110179))

1шт.

|$22

714-17-20313

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)

SN: (110604)-UP

1шт.

|$23

714-17-20312

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)

SN: 60001-(110603)

1шт.

|$24

0

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)

SN: (60001-(110185))

1шт.

|$25

0

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)

SN: (60001-(110179))

1шт.

|$$19

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A1.

-1шт.

1

714-17-25401

VALVE ASS'Y

SN: 60021-UP

1шт.

1

714-17-25400

VALVE ASS'Y

SN: 60001-60020

1шт.

1

714-17-25600

VALVE ASS'Y,(COLD TERRAIN SPEC.)

SN: 60001-UP

1шт.

2

01252-31065

BOLT

SN: 60001-UP

1шт.

3

01252-31055

BOLT

SN: 60001-UP

3шт.

4

07000-73040

O-RING (K1)

SN: 60001-UP

1шт.

5

714-17-25003

VALVE ASS'Y

SN: (110587)-UP

1шт.

5

714-17-25002

VALVE ASS'Y

SN: 60584-(110586)

1шт.

5

0

VALVE ASS'Y

SN: 60001-60583

1шт.

5

0

VALVE ASS'Y

SN: (60001-60079)

1шт.

5

714-17-25013

VALVE ASS'Y,(WITH LOCKUP)

SN: (110587)-UP

1шт.

5

714-17-25012

VALVE ASS'Y,(WITH LOCKUP)

SN: 60584-(110586)

1шт.

5

0

VALVE ASS'Y,(WITH LOCKUP)

SN: 60001-60583

1шт.

5

0

VALVE ASS'Y,(WITH LOCKUP)

SN: (60001-60079)

1шт.

5

714-12-25004

VALVE ASS'Y,(COLD TERRAIN SPEC.)

SN: (110587)-UP

1шт.

5

714-12-25003

VALVE ASS'Y,(COLD TERRAIN SPEC.)

SN: 60001-(1105869

1шт.

5

0

VALVE ASS'Y,(COLD TERRAIN SPEC.)

SN: (60001-60079)

1шт.

6

01010-81055

BOLT

SN: 60001-UP

6шт.

7

01643-31032

WASHER

SN: 60001-UP

6шт.

8

01011-81020

BOLT

SN: 60001-UP

1шт.

9

01643-31032

WASHER

SN: 60001-UP

1шт.

10

01011-81005

BOLT

SN: 60001-UP

2шт.

11

01643-31032

WASHER

SN: 60001-UP

2шт.

12

01011-81010

BOLT

SN: 60001-UP

1шт.

13

01643-31032

WASHER

SN: 60001-UP

1шт.

14

07000-73028

O-RING (K1)

SN: 60001-UP

3шт.

15

07000-72015

O-RING (K1)

SN: 60001-UP

25шт.

16

07000-72012

O-RING (K1)

SN: 60001-UP

2шт.

17

07000-73045

O-RING (K1)

SN: 60001-UP

1шт.
