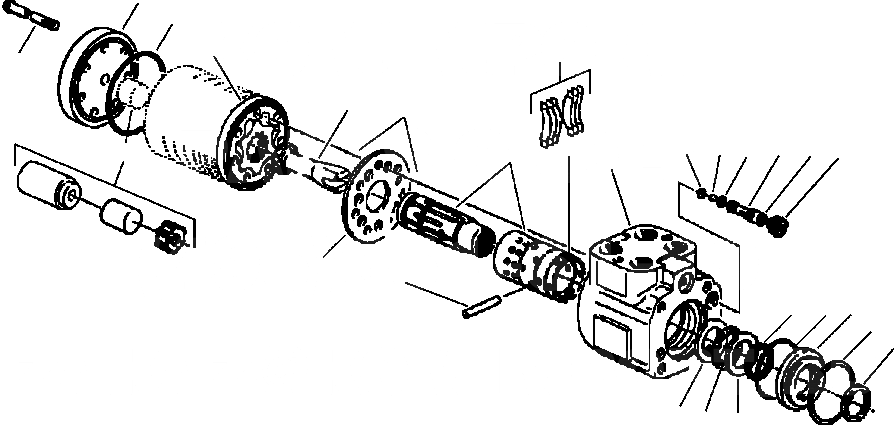

Запчасти Komatsu WA420-3L FIG. H-A КЛАПАН РУЛЕВОГО УПРАВЛЕНИЯ - EATON ГИДРАВЛИКА

|$0

421-64-A1102

STEERING VALVE

SN: A30001-UP-UP

1шт.

1

421-64-A1161

CAP SCREW

SN: A30001-UP-UP

7шт.

2

421-64-A1230

END CAP

SN: A30001-UP-UP

1шт.

3

NSS

SEAL

SN: A30001-UP-UP

3шт.

4

421-64-A1140

GEROTOR SUB-ASSEMBLY

SN: A30001-UP-UP

1шт.

5

421-64-A1150

SPACER

SN: A30001-UP-UP

1шт.

6

421-64-A1240

WEAR PLATE

SN: A30001-UP-UP

1шт.

7

93 876

DRIVE

SN: A30001-UP-UP

1шт.

8

NSS

HOUSING

SN: A30001-UP-UP

1шт.

9

NSS

SPOOL SLEEVE S/A

SN: A30001-UP-UP

1шт.

10

81 574

PIN, CENTERING

SN: A30001-UP-UP

1шт.

11

421-64-A1130

CENTERING SPRING KIT

SN: A30001-UP-UP

1шт.

12

149 569

RACE, BEARING

SN: A30001-UP-UP

2шт.

13

107 421

BEARING, NEEDLE THRUST

SN: A30001-UP-UP

1шт.

14

NSS

O-RING

SN: A30001-UP-UP

1шт.

15

NSS

DUST, SEAL

SN: A30001-UP-UP

1шт.

16

NSS

SEAL, SHAFT

SN: A30001-UP-UP

1шт.

17

421-64-A1120

BUSHING,SEAL GLAND

SN: A30001-UP-UP

1шт.

18

148 405

RING, RETAINING

SN: A30001-UP-UP

1шт.

19

148 411

CHECK BALL RETAINER

SN: A30001-UP-UP

1шт.

20

68 606

BALL

SN: A30001-UP-UP

1шт.

21

148 409

SEAT, CHECK BALL

SN: A30001-UP-UP

1шт.

22

NSS

O-RING

SN: A30001-UP-UP

3шт.

23

NSS

O-RING

SN: A30001-UP-UP

1шт.

24

148 408

SET SCREW

SN: A30001-UP-UP

1шт.

N/I

1432 134 H91

SEAL KIT, STEERING VALVE - EATON

SN: A30001-UP-UP

1шт.

N/I

421-64-A1250

BEARING KIT, NEEDLE - EATON STEERING VALVE

SN: A30001-UP-UP

1шт.

|$27

-1шт.

|$28

F1 - INCLUDED IN SEAL KIT.

-1шт.

|$30

-1шт.

|$31

F2 - INCLUDED IN BEARING KIT.

-1шт.

|$32

-1шт.
