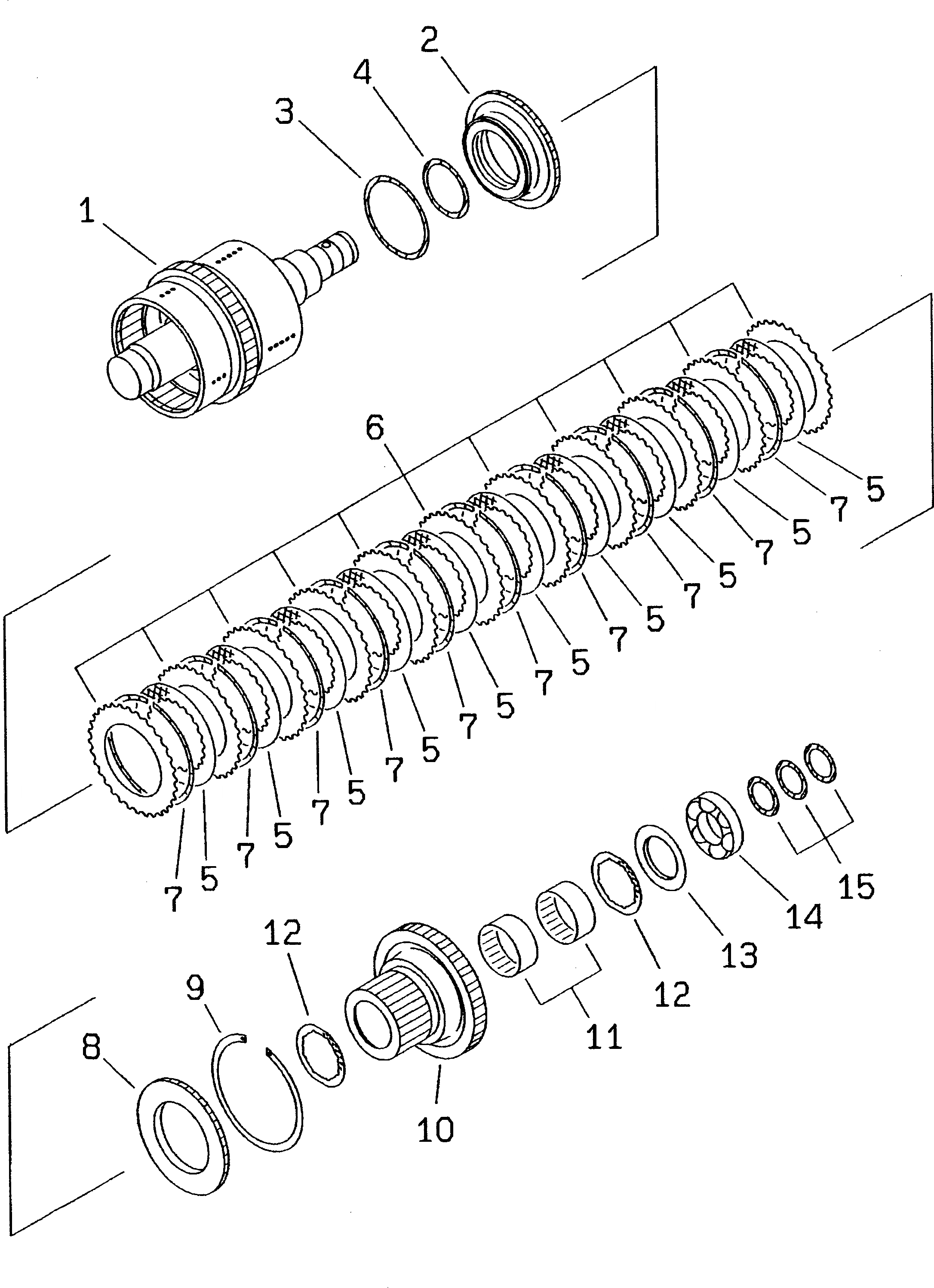

Запчасти Komatsu WA420-3 ТРАНСМИССИЯ (ПЕРЕД. МУФТА)(№-) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$1

714-17-10010

TRANSMISSION ASS'Y

SN: 50001-UP

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271.

-1шт.

|$3

714-17-12010

CLUTCH ASS'Y,FORWARD AND 1ST

SN: 50001-UP

1шт.

|$$5

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2221 AND 2222.

-1шт.

1

714-17-12110

SHAFT ASS'Y

SN: 50001-UP

1шт.

2

714-07-12911

PISTON,FORWARD

SN: 50001-UP

1шт.

3

714-08-19220

RING,SEAL

SN: 50001-UP

1шт.

4

714-07-19320

RING,SEAL

SN: 50001-UP

1шт.

5

714-07-19720

DISC

SN: (100094)-UP

10шт.

5

0

DISC

SN: (50001)-(100093)

10шт.

5

714-07-12670

DISC

SN: 50001-(50000)

10шт.

6

714-07-12680

PLATE,SEPARATE

SN: 50001-UP

11шт.

7

714-07-12690

SPRING,WAVE

SN: 50001-UP

10шт.

8

714-07-12711

PLATE,END

SN: 50001-UP

1шт.

9

714-07-12720

RING,SNAP

SN: 50001-UP

1шт.

10

714-17-12410

GEAR, 49 TEETH,FORWARD

SN: 50001-UP

1шт.

11

714-07-12280

BEARING,NEEDLE

SN: 50001-UP

2шт.

12

714-07-12220

WASHER,THRUST

SN: 50001-UP

2шт.

13

714-07-12250

SPACER

SN: 50001-UP

1шт.

14

06040-06315

BEARING

SN: 50001-UP

1шт.

15

714-07-12290

RING,SEAL

SN: 50001-UP

3шт.
