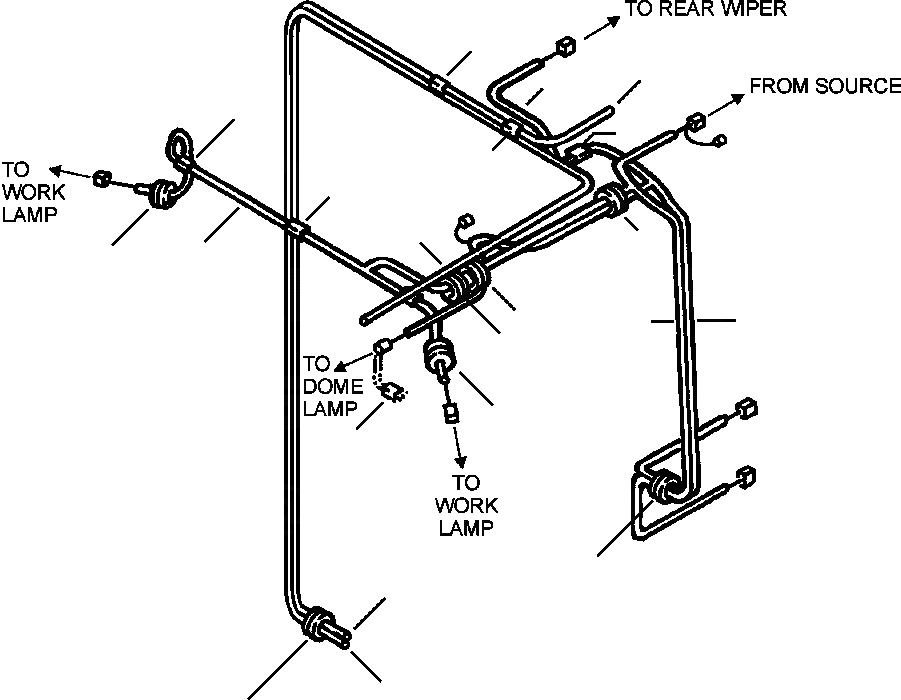

Запчасти Komatsu WA420-1LC FIG NO. 8 КАБИНА ЭЛЕКТР. ЭЛЕКТРОПРОВОДКА РАМА, ЧАСТИ КОРПУСА & SUPERSTRUCTURE

|$0

CAB, OPERATOR'S (SEE PG 05-072)

-29шт.

|$1

CAB, INTERNAL (SEE PG 05-088)

a

-29шт.

|$2

CAB, OPERATOR'S (SEE PG 05-076)

b

-29шт.

|$3

CAB, INTERNAL (SEE PG 05-092)

a

-29шт.

|$4

CAB, OPERATOR'S (SEE PG 05-080)

b

-29шт.

|$5

CAB, INTERNAL (SEE PG 05-096)

a

-29шт.

|$6

CAB, OPERATOR'S (SEE PG 05-084)

b

-29шт.

|$7

421-925-A131

CAB WIRING

1шт.

1

HOSE, FRONT WASHER - 17.5 FT

1шт.

2

HOSE, REAR WASHERN - 13 FT

1шт.

3

421-925-A460

HARNESS, CAB FRONT

1шт.

4

421-925-A470

HARNESS, CAB REAR

1шт.

5

421-925-A560

CLIP, HARNESS

7шт.

6

421-09-A1270

GROMMET

1шт.

7

421-09-A1280

GROMMET

1шт.

8

421-925-A160

CLIP, HARNESS

3шт.

9

GROMMET (SEE PG 05-072)

a

-29шт.

9

GROMMET (SEE PG 05-076)

b

-29шт.

9

GROMMET (SEE PG 05-080)

c

-29шт.

9

GROMMET (SEE PG 05-084)

d

-29шт.

|$$21

-1шт.

|$21

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE

-1шт.

|$22

ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$$24

-1шт.

|$24

F2 - CUT FROM BULK HOSE 940 455 C2.

-1шт.

|$$26

-1шт.
