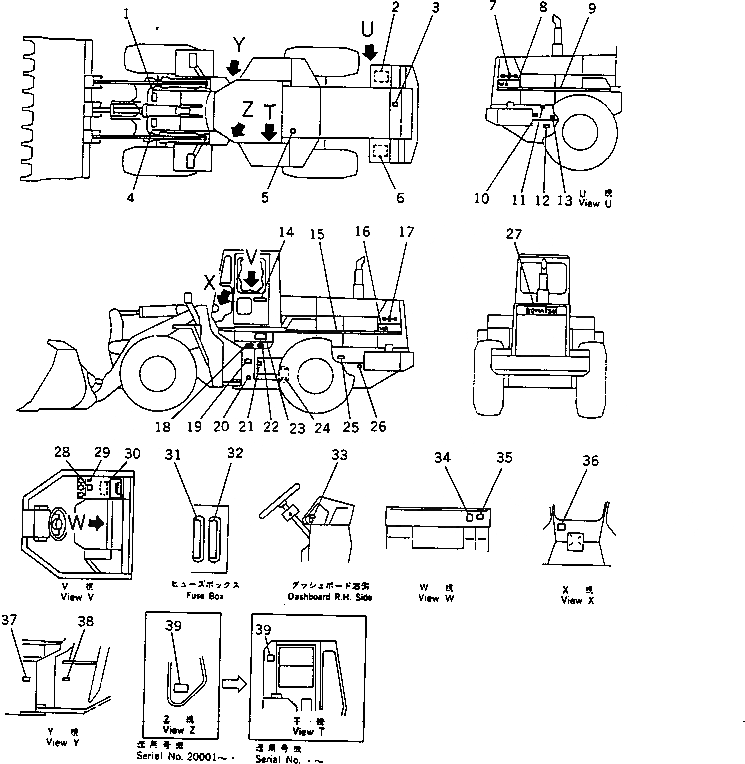

Запчасти Komatsu WA420-1 МАРКИРОВКА (ИСПАНИЯ)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-V00-1250

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

2

421-V00-1121

PLATE, CAUTION,BATTERY

SN: 20001-UP

1шт.

3

09668-01000

PLATE, SAFETY,RADIATOR CAP

SN: 20001-UP

1шт.

4

419-V00-1250

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

5

09653-01000

PLATE, SAFETY,HYDRAULIC TANK

SN: 20001-UP

1шт.

6

421-V00-1121

PLATE, CAUTION,BATTERY

SN: 20001-UP

1шт.

7

09694-50280

PLATE, MARK,SYMBOL

SN: 20001-UP

1шт.

8

424-93-11810

PLATE, MARK,WA420

SN: 20001-UP

1шт.

9

423-93-11142

PLATE, STRIPE

SN: 20001-UP

1шт.

10

09101-01000

PLATE, CAUTION,FUEL

SN: 20001-UP

1шт.

11

419-V00-1140

PLATE, CAUTION,FAN

SN: 20001-UP

1шт.

12

421-V00-1180

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 20001-UP

1шт.

13

419-V00-1250

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

14

09690-50280

PLATE, MARK,KOMATSU

SN: 20001-UP

2шт.

15

423-93-11142

PLATE, STRIPE

SN: 20001-UP

1шт.

16

424-93-11810

PLATE, MARK,WA420

SN: 20001-UP

1шт.

17

09694-50280

PLATE, MARK,SYMBOL

SN: 20001-UP

1шт.

18

09152-01000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 20001-UP

1шт.

19

419-V00-1230

PLATE, CAUTION,KEEP OUT

SN: 20001-UP

1шт.

20

419-V00-1130

PLATE, CAUTION,FRAME LOCK

SN: 20001-UP

1шт.

21

421-V00-1310

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 20001-UP

1шт.

22

09152-01000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 20001-UP

1шт.

23

424-V00-1151

CHART, OIL

SN: 20001-UP

1шт.

24

09152-01000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 20001-UP

1шт.

25

419-V00-1250

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

26

423-V00-1320

PLATE, OPERATING,GREASE AXLE TRUNNION

SN: 20001-UP

1шт.

27

09690-50400

PLATE, MARK,KOMATSU

SN: 20001-UP

1шт.

28

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 20001-UP

1шт.

29

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 20001-UP

1шт.

30

421-V00-1220

PLATE, OPERATING,RELAY

SN: 20001-UP

1шт.

31

421-V00-1230

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

32

421-V00-1240

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

33

09683-11070

PLATE, OPERATING,STARTING SWITCH

SN: 20001-UP

1шт.

34

419-V00-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 20001-UP

1шт.

35

419-V00-1120

PLATE, CAUTION,STARTING AND INSPECTION

SN: 20001-UP

1шт.

36

419-V00-1260

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

37

419-V00-1230

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

38

09602-11635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

38

04418-13060

SCREW

SN: 10001-UP

4шт.

39

423-V00-1131

PLATE, OPERATING,MONITOR PANEL

SN: 20001-UP

1шт.
