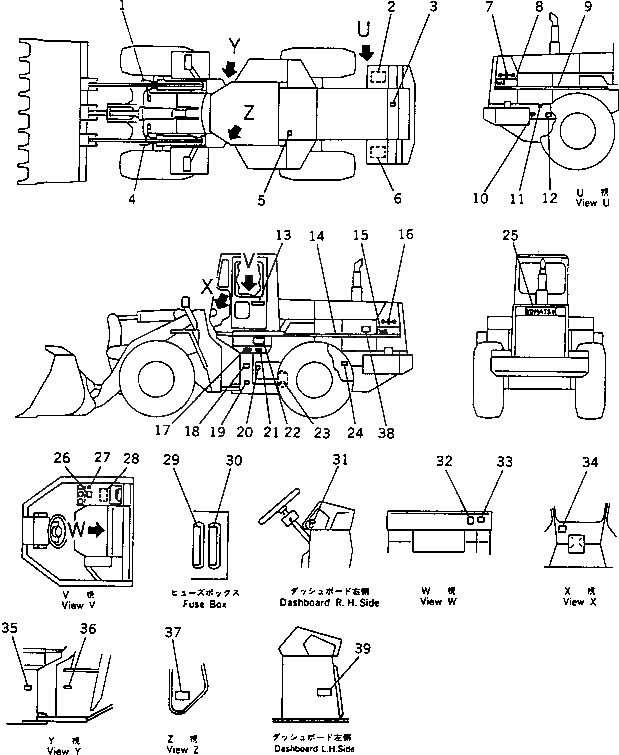

Запчасти Komatsu WA420-1 МАРКИРОВКА (АНГЛ.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

2

419-93-11460

PLATE, CAUTION,BATTERY

SN: 20001-UP

1шт.

3

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

4

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

5

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

6

419-93-11460

PLATE, CAUTION,BATTERY

SN: 10001-UP

1шт.

7

09694-50280

PLATE, MARK,SYMBOL

SN: 10001-UP

1шт.

8

424-93-11810

PLATE, MARK,WA420

SN: 10001-UP

1шт.

9

423-93-11142

PLATE, STRIPE

SN: 10001-UP

1шт.

10

09101-03000

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

11

362-54-27390

PLATE, CAUTION,FAN

SN: 10001-UP

1шт.

12

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

13

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

2шт.

14

423-93-11142

PLATE, STRIPE

SN: 10001-UP

1шт.

15

424-93-11810

PLATE, MARK,WA420

SN: 10001-UP

1шт.

16

09694-50280

PLATE, MARK,SYMBOL

SN: 10001-UP

1шт.

17

09152-03000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 20001-UP

1шт.

18

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

19

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

20

425-93-11290

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-UP

1шт.

21

09152-03000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 20001-UP

1шт.

22

424-93-11722

CHART, OIL

SN: 20001-UP

1шт.

23

09152-03000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10001-UP

1шт.

24

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

25

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

26

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 20001-UP

1шт.

27

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 20001-UP

1шт.

28

421-93-12240

PLATE, OPERATING,RELAY

SN: 20001-UP

1шт.

29

424-93-11421

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

30

424-93-11431

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

31

09683-30070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

32

421-93-11320

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

33

362-98-12150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

34

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

35

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

36

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

36

04418-13060

SCREW

SN: 10001-UP

4шт.

37

423-93-11441

PLATE, OPERATING,MONITOR PANEL

SN: 20001-UP

1шт.

38

09696-10082

PLATE,EC NOISE SUPPRESSION

SN: 20001-UP

1шт.

39

09696-00108

PLATE,EC NOISE SUPPRESSION

SN: 20001-UP

1шт.
