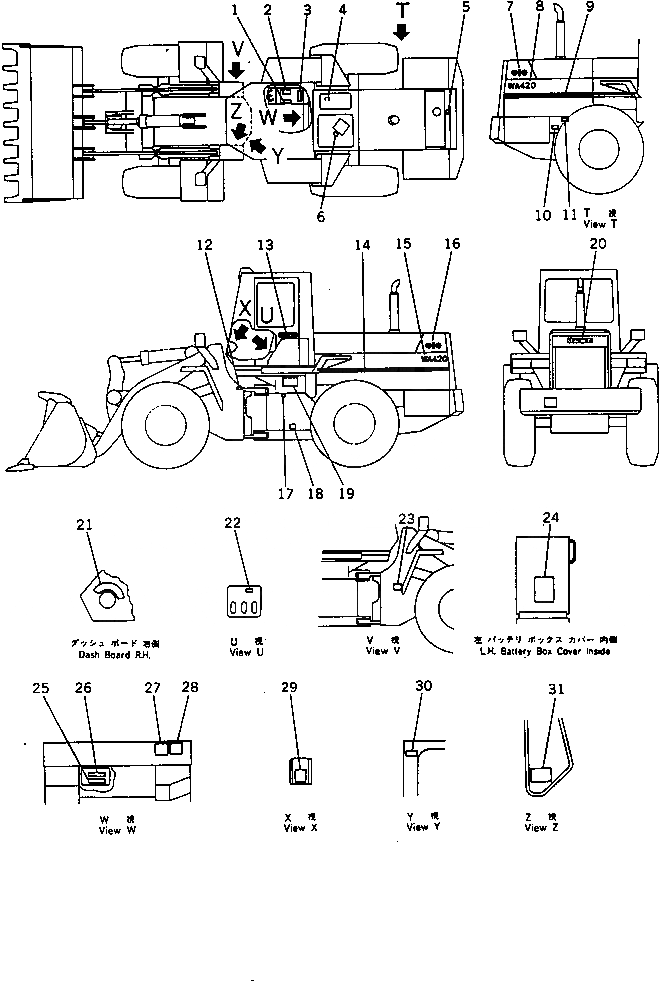

Запчасти Komatsu WA420-1 МАРКИРОВКА (АНГЛ.)(№-9999) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

426-93-11740

PLATE, OPERATING,ENGINE OIL PRESSURE RELAY

SN: 10001-19999

1шт.

2

421-93-11132

PLATE, OPERATING,LOADER CONTROL

SN: 10001-19999

1шт.

3

425-93-11330

PLATE, OPERATING,RELAY

SN: 10001-19999

1шт.

4

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-19999

1шт.

5

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

6

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

7

09694-50280

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

8

424-93-11810

PLATE, MARK,WA420

SN: 10001-@

1шт.

9

423-93-11142

PLATE, STRIPE

SN: 10001-@

1шт.

10

09101-03000

PLATE, CAUTION,FUEL

SN: 10001-@

1шт.

11

362-54-27390

PLATE, CAUTION,FAN BELT

SN: 10001-@

1шт.

12

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-@

2шт.

13

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

2шт.

14

423-93-11142

PLATE, STRIPE

SN: 10001-@

1шт.

15

424-93-11810

PLATE, MARK,WA420

SN: 10001-@

1шт.

16

09694-50280

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

17

425-93-11290

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-@

1шт.

18

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

19

424-93-11721

CHART, OIL

SN: 10093-19999

1шт.

19

424-93-11720

CHART, OIL

SN: 10001-10092

1шт.

20

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

21

09683-30070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-@

1шт.

22

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-19999

1шт.

23

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

23

04418-13060

SCREW

SN: 10001-@

4шт.

24

419-93-11460

PLATE, CAUTION,BOOSTER SETTING

SN: 10001-@

1шт.

25

424-93-11430

PLATE, OPERATING,FUSE

SN: 10001-19999

1шт.

26

424-93-11420

PLATE, OPERATING,FUSE

SN: 10001-19999

1шт.

27

419-93-11320

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

28

362-98-12150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-@

1шт.

29

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPARETURE

SN: 10001-@

1шт.

30

09152-03000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-@

1шт.

31

423-93-11440

PLATE, OPERATING,MONITOR PANEL

SN: 10001-19999

1шт.
