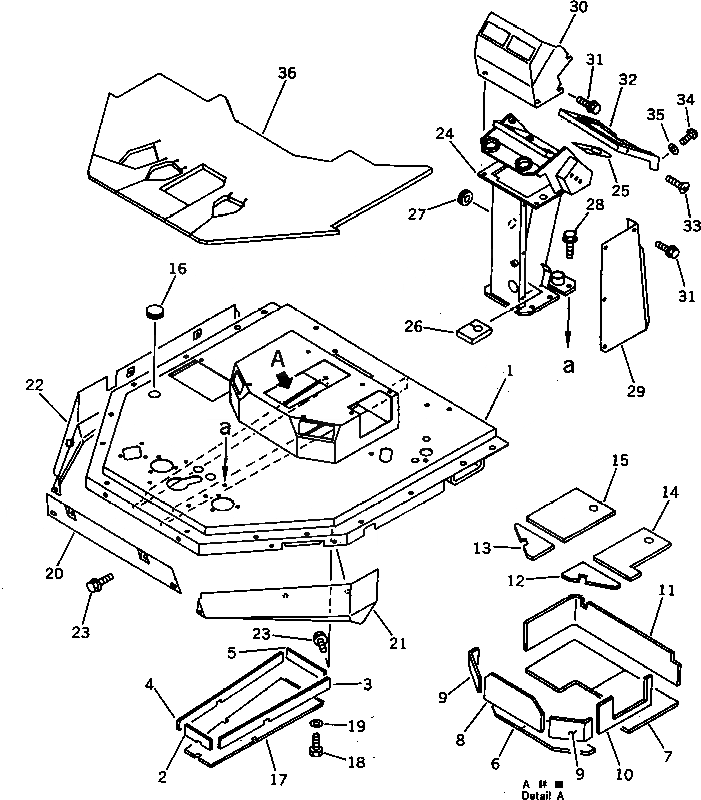

Запчасти Komatsu WA420-1 ОСНОВН. КОНСТРУКЦИЯ(№-) РАМА И ЧАСТИ КОРПУСА

|$0

423-54-12800

FLOOR FRAME ASS'Y

SN: 20049-UP

1шт.

|$1

421-54-12400

FLOOR FRAME ASS'Y

SN: 20001-20048

1шт.

|$2

423-54-12800

FLOOR FRAME ASS'Y,(EUROPA SPEC.)

SN: 20001-UP

1шт.

|$3

424-54-17390

FRAME,(TBG/ABE SPEC.)

SN: 20001-UP

1шт.

1

423-54-12890

FRAME

SN: 20049-UP

1шт.

1

421-54-12115

FRAME

SN: 20001-20048

1шт.

1

423-54-12890

FRAME,(EUROPA SPEC.)

SN: 20001-UP

1шт.

2

421-54-18330

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

3

421-54-18340

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

4

421-54-18350

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

5

421-54-18360

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

6

421-54-18460

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

7

421-54-18470

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

8

421-54-18420

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

9

421-54-18430

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

2шт.

10

421-54-18440

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

11

421-54-18450

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

12

421-54-18370

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

13

421-54-18380

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

14

421-54-18390

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

15

421-54-18410

INSULATOR,(EXCEPT TBG/ABE SPEC.)

SN: 20001-UP

1шт.

16

09415-03614

CAP

SN: 20001-UP

1шт.

17

421-54-18480

COVER

SN: 20001-UP

1шт.

18

01010-50816

BOLT

SN: 20001-UP

5шт.

19

01643-30823

WASHER

SN: 20001-UP

5шт.

20

421-54-14614

COVER

SN: 20001-UP

1шт.

21

421-54-14645

COVER,L.H.

SN: 20001-UP

1шт.

22

421-54-14655

COVER,R.H.

SN: 20001-UP

1шт.

23

01435-01220

BOLT

SN: 20001-UP

9шт.

24

421-54-12217

SUPPORT

SN: 20001-UP

1шт.

25

421-54-12273

INSULATOR

SN: 10001-UP

1шт.

26

419-54-12481

SEAL

SN: 20001-UP

1шт.

27

09415-02512

CAP

SN: 10001-UP

1шт.

28

01435-01230

BOLT

SN: 20001-UP

5шт.

29

419-U56-1190

COVER

SN: 20001-UP

1шт.

30

421-54-12813

COVER

SN: 10001-UP

1шт.

31

01435-00816

BOLT

SN: 20001-UP

12шт.

32

425-54-12871

COVER

SN: 10001-UP

1шт.

33

01224-70620

SCREW

SN: 10325-UP

2шт.

34

01220-40816

SCREW

SN: 10001-UP

2шт.

35

01643-30823

WASHER

SN: 10001-UP

2шт.

36

425-54-12833

MAT,FLOOR

SN: 20001-UP

1шт.
