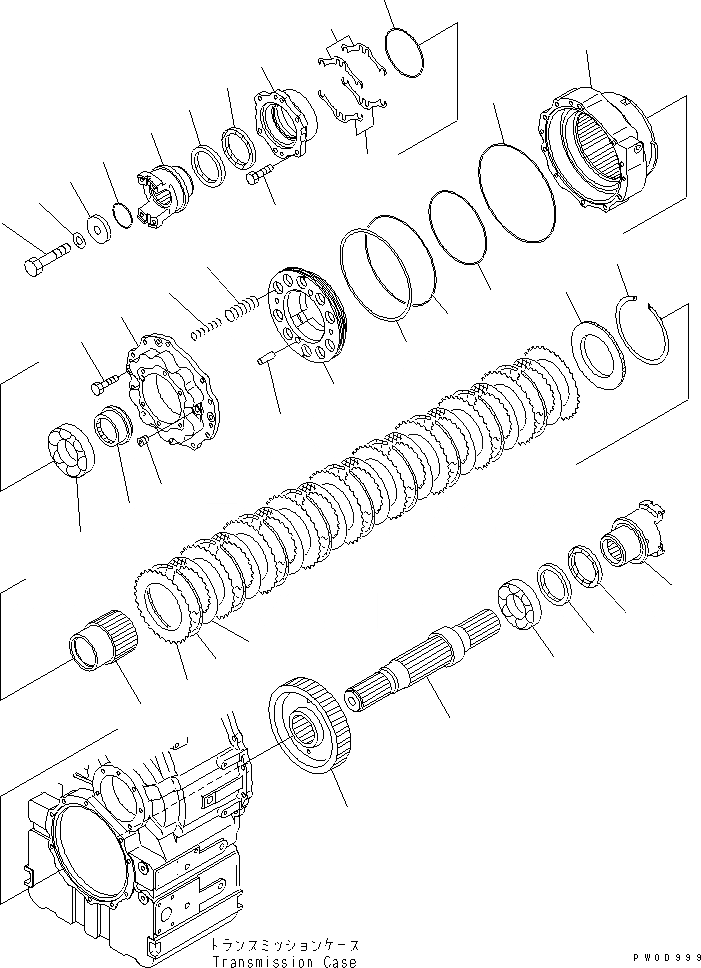

Запчасти Komatsu WA400-5 ТРАНСМИССИЯ (ВЫХОДНОЙ ВАЛ) СИЛОВАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$4

714-12-20203

TORQFLOW ASS'Y

SN: 70001-UP

1шт.

|$5

0

TORQFLOW ASS'Y

SN: (70001-(110159))

1шт.

|$$4

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.

-1шт.

|$7

714-12-20213

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: 70001-UP

1шт.

|$8

0

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: (70001-(110159))

1шт.

|$$7

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A2.

-1шт.

|$10

714-12-20500

TORQFLOW ASS'Y

SN: 70001-UP

1шт.

|$$9

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-63A0.

-1шт.

1

714-12-24520

SHAFT,OUTPUT

SN: 70001-UP

1шт.

2

714-12-24620

GEAR, 62 TEETH,OUTPUT

SN: 70001-UP

1шт.

3

06002-32215

BEARING

SN: 70001-UP

1шт.

4

06002-32017

BEARING

SN: 70001-UP

1шт.

5

714-12-23830

SPACER

SN: 70001-UP

1шт.

6

714-07-28611

HUB,SPLINE

SN: 70001-UP

1шт.

7

714-12-27141

CAGE

SN: 70001-UP

1шт.

8

07012-50095

SEAL

SN: 70001-UP

2шт.

9

425-15-28710

SEAL,DUST (K1)

SN: 70001-UP

2шт.

10

07000-15140

O-RING (K1)

SN: 70001-UP

1шт.

11

01010-81235

BOLT

SN: 70001-UP

6шт.

12

714-12-27111

HOUSING

SN: 70001-UP

1шт.

13

714-12-27121

HOUSING

SN: 70001-UP

1шт.

14

07000-15275

O-RING (K1)

SN: 70001-UP

1шт.

15

01016-51250

BOLT

SN: 70001-UP

4шт.

16

07043-A0312

PLUG

SN: 70001-UP

2шт.

17

714-07-27161

SPRING

SN: 70001-UP

10шт.

18

714-07-27151

SPRING

SN: 70001-UP

10шт.

19

714-12-27131

PISTON

SN: 70001-UP

1шт.

20

07000-A6210

O-RING (K1)

SN: 70001-UP

1шт.

21

07000-A6260

O-RING (K1)

SN: 70001-UP

1шт.

22

07001-06265

RING (K1)

SN: 70001-UP

1шт.

23

04020-01842

PIN

SN: 70001-UP

2шт.

24

714-07-12670

DISC

SN: 70001-UP

9шт.

25

714-12-19730

PLATE,SEPARATE

SN: 70001-UP

10шт.

26

714-07-12691

SPRING,WAVE

SN: 70001-UP

9шт.

26

0

SPRING,WAVE

SN: (70001-(110174))

9шт.

27

714-12-17250

PLATE,END

SN: 70001-UP

1шт.

28

714-07-12720

RING,SNAP

SN: 70001-UP

2шт.

29

714-12-00040

SHIM ASS'Y (K1)

SN: 70001-UP

1шт.

29

0

SHIM, 0.05MM

SN: 70001-UP

6шт.

29

0

SHIM, 0.5MM

SN: 70001-UP

4шт.

29

0

SHIM, 0.2MM

SN: 70001-UP

4шт.

30

714-17-24111

COUPLING

SN: 70001-UP

1шт.

30

0

COUPLING

SN: 70001-UP

1шт.

30

0

COVER

SN: 70001-UP

1шт.

31

772-14-13130

HOLDER

SN: 70001-UP

1шт.

32

07000-15060

O-RING (K1)

SN: 70001-UP

1шт.

33

01011-62020

BOLT

SN: 70001-UP

1шт.

34

01643-32060

WASHER

SN: 70001-UP

1шт.

35

714-12-24120

COUPLING ASS'Y

SN: 70001-UP

1шт.

35

0

COUPLING ASS'Y

SN: 70001-UP

1шт.

35

0

COUPLING,REAR

SN: 70001-UP

1шт.

35

0

COVER

SN: 70001-UP

1шт.

35

0

DEFLECTOR

SN: 70001-UP

1шт.
