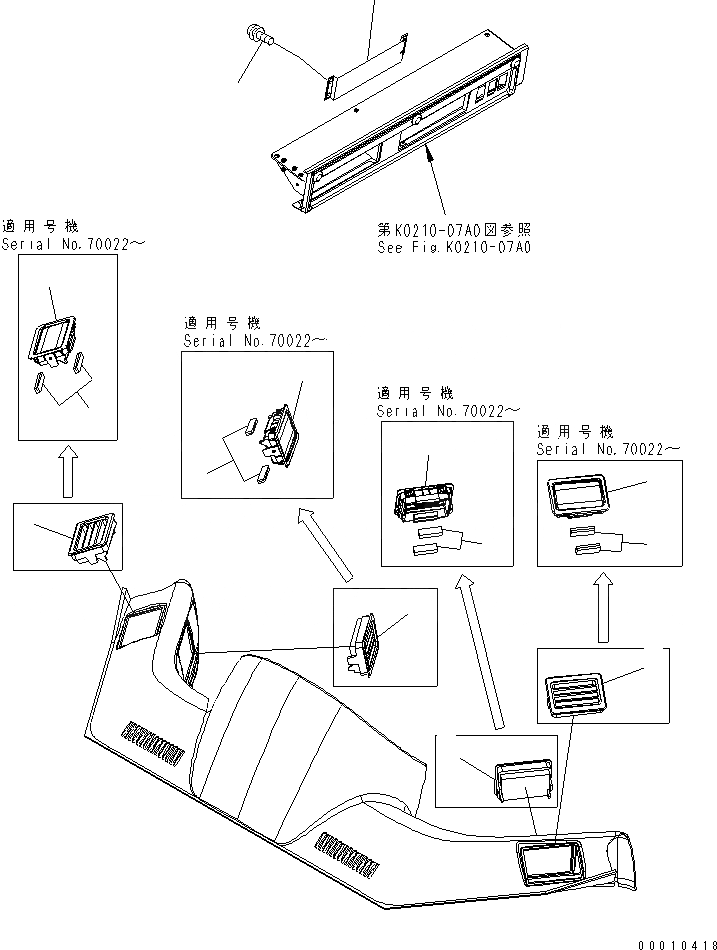

Запчасти Komatsu WA400-5 КАБИНА ROPS (ВОЗДУХОВОД) (WIHTOUT КОНДИЦ. ВОЗДУХА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$9

423-926-3012

ROPS CAB ASS'Y

SN: ..-UP

1шт.

|$10

423-926-3011

ROPS CAB ASS'Y

SN: .-..

1шт.

|$11

423-926-3010

ROPS CAB ASS'Y

SN: 70001-.

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A5.

-1шт.

|$13

423-926-3022

ROPS CAB ASS'Y,(E)

SN: ..-UP

1шт.

|$14

423-926-3021

ROPS CAB ASS'Y,(E)

SN: .-..

1шт.

|$15

423-926-3020

ROPS CAB ASS'Y,(E)

SN: 70001-.

1шт.

|$$8

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-24A6.

-1шт.

|$17

424-926-3012

ROPS CAB ASS'Y,(B)

SN: ..-UP

1шт.

|$18

424-926-3011

ROPS CAB ASS'Y,(B)

SN: .-..

1шт.

|$19

424-926-3010

ROPS CAB ASS'Y,(B)

SN: 70001-.

1шт.

|$20

424-926-3022

ROPS CAB ASS'Y,(B+E)

SN: ..-UP

1шт.

|$21

424-926-3021

ROPS CAB ASS'Y,(B+E)

SN: .-..

1шт.

|$22

424-926-3020

ROPS CAB ASS'Y,(B+E)

SN: 70001-.

1шт.

|$23

424-926-3052

ROPS CAB ASS'Y,(J)

SN: ..-UP

1шт.

|$24

424-926-3051

ROPS CAB ASS'Y,(J)

SN: .-..

1шт.

|$25

424-926-3050

ROPS CAB ASS'Y,(J)

SN: 70001-.

1шт.

|$26

424-926-3062

ROPS CAB ASS'Y,(E+J)

SN: ..-UP

1шт.

|$27

424-926-3061

ROPS CAB ASS'Y,(E+J)

SN: .-..

1шт.

|$28

424-926-3060

ROPS CAB ASS'Y,(E+J)

SN: 70001-.

1шт.

|$29

421-925-3012

ROPS CAB ASS'Y,(F)

SN: ..-UP

1шт.

|$30

421-925-3011

ROPS CAB ASS'Y,(F)

SN: .-..

1шт.

|$31

421-925-3010

ROPS CAB ASS'Y,(F)

SN: 70001-.

1шт.

|$32

421-925-3022

ROPS CAB ASS'Y,(E+F)

SN: ..-UP

1шт.

|$33

421-925-3021

ROPS CAB ASS'Y,(E+F)

SN: .-..

1шт.

|$34

421-925-3020

ROPS CAB ASS'Y,(E+F)

SN: 70001-.

1шт.

|$$27

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A2.

-1шт.

|$36

423-925-3022

ROPS CAB ASS'Y,(M)

SN: ..-UP

1шт.

|$37

423-925-3021

ROPS CAB ASS'Y,(M)

SN: .-..

1шт.

|$38

423-925-3020

ROPS CAB ASS'Y,(M)

SN: 70001-.

1шт.

|$$31

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25C8.

-1шт.

|$$32

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|$$33

B = AM,FM RADIO

-1шт.

|$$34

E = LOAD METER

-1шт.

|$$35

F = YELLOW LAMP

-1шт.

|$$36

J = RADIO, CASSETTE

-1шт.

|$$37

M = SW PUMP CUT-OFF

-1шт.

1

421-925-3530

PLATE

SN: 70001-UP

1шт.

2

01023-10512

SCREW

SN: 70001-UP

4шт.

|$50

421-925-3460

GRILLE ASS'Y

SN: 70022-UP

4шт.

|$51

421-925-3540

COVER

SN: 70001-70021

4шт.

3

0

GRILLE ASS'Y

SN: 70022-UP

4шт.

4

0

SEAL

SN: 70022-UP

8шт.
