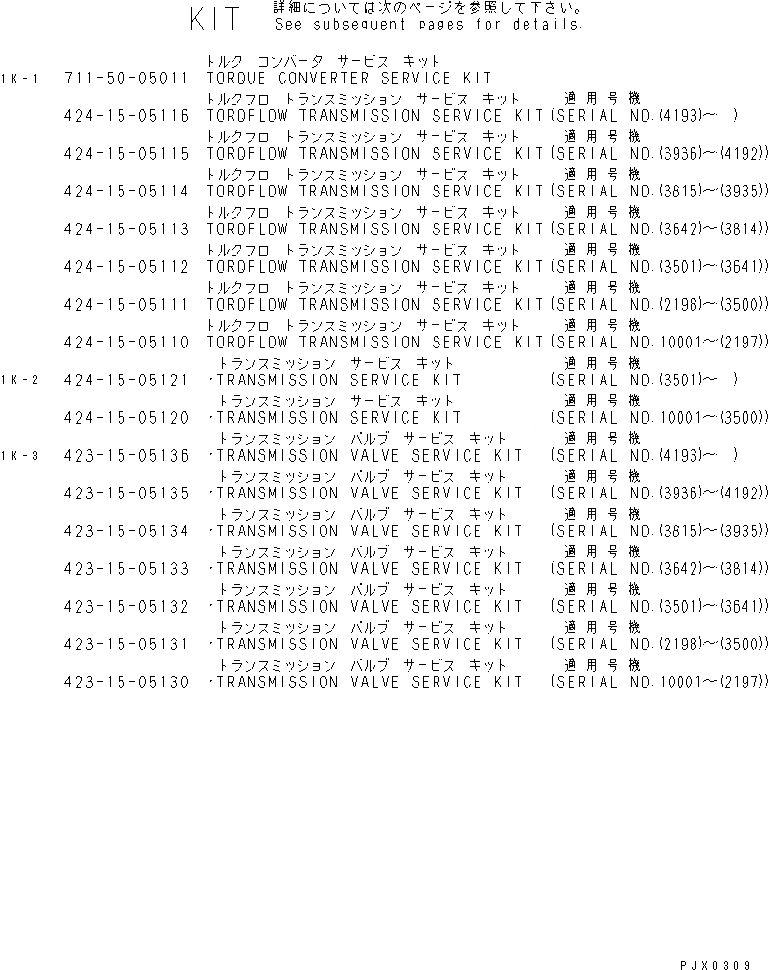

Запчасти Komatsu WA400-1 РЕМ. КОМПЛЕКТЫ (ТРАНСМИССИЯ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

711-50-05011

SERVICE KIT,TORQUE CONVERTER

SN: 10001-UP

1шт.

|1

07000-02070

O-RING,SHAFT

SN: 10001-UP

1шт.

|1

711-49-05010

SHIM KIT,SHAFT

SN: 10001-UP

1шт.

|1

07000-05270

O-RING,COVER

SN: 10001-UP

1шт.

|2

424-15-05116

SERVICE KIT,TORQFLOW TRANSMISSION

SN: (4193)-UP

1шт.

|2

424-15-05115

SERVICE KIT,TORQFLOW TRANSMISSION

SN: (3936)-(4192)

1шт.

|2

424-15-05114

SERVICE KIT,TORQFLOW TRANSMISSION

SN: (3815)-(3935)

1шт.

|2

424-15-05113

SERVICE KIT,TORQFLOW TRANSMISSION

SN: (3642)-(3814)

1шт.

|2

424-15-05112

SERVICE KIT,TORQFLOW TRANSMISSION

SN: (3501)-(3641)

1шт.

|2

424-15-05111

SERVICE KIT,TORQFLOW TRANSMISSION

SN: (2198)-(3500)

1шт.

|2

424-15-05110

SERVICE KIT,TORQFLOW TRANSMISSION

SN: 10001-(2197)

1шт.

2

424-15-05121

SERVICE KIT,TRANSMISSION

SN: (3501)-UP

1шт.

|2

424-15-05120

SERVICE KIT,TRANSMISSION

SN: 10001-(3500)

1шт.

|2

07002-02434

O-RING,PLUG

SN: 10001-UP

2шт.

|2

07000-72021

O-RING,SLEEVE

SN: 10001-UP

10шт.

|2

07000-73028

O-RING,FLANGE

SN: 10001-UP

2шт.

|2

07000-02055

O-RING,OIL FILTER

SN: 10001-UP

1шт.

|2

07000-02090

O-RING,OIL FILTER

SN: 10001-UP

1шт.

|2

07000-02110

O-RING,OIL FILTER

SN: 10001-UP

1шт.

|2

07000-02110

O-RING,OIL FILTER

SN: 10001-UP

1шт.

|2

07000-33048

O-RING,FILLER

SN: 10001-UP

1шт.

|2

07002-02434

O-RING,DRAIN PLUG

SN: 10001-UP

1шт.

|2

07000-05290

O-RING,TRANSFER CASE

SN: 10001-UP

1шт.

|2

07000-73045

O-RING,TRANSFER CASE

SN: 10001-UP

1шт.

|2

07000-02105

O-RING,TRANSFER CASE

SN: 10001-UP

1шт.

|2

144-15-22881

RING,REVERSE CLUTCH

SN: 10001-UP

1шт.

|2

113-15-12870

RING,REVERSE CLUTCH

SN: 10001-UP

1шт.

|2

562-15-19220

RING,SEAL

SN: 10001-UP

1шт.

|2

569-15-12860

RING,SEAL

SN: 10001-UP

1шт.

|2

568-15-12850

RING,SEAL

SN: 10001-UP

1шт.

|2

113-15-12870

RING,4TH CLUTCH

SN: 10001-UP

1шт.

|2

144-15-22881

RING,3RD CLUTCH

SN: 10001-UP

1шт.

|2

113-15-12870

RING,3RD CLUTCH

SN: 10001-UP

1шт.

|2

562-15-19330

RING,SEAL

SN: 10001-UP

1шт.

|2

569-15-12860

RING,SEAL

SN: 10001-UP

1шт.

|2

562-15-19330

RING,SEAL

SN: 10001-UP

1шт.

|2

113-15-12870

RING,1ST CLUTCH

SN: 10001-UP

1шт.

|2

424-15-05020

SHIM KIT,CAGE¤ TRANSFER GEAR

SN: 10001-UP

1шт.

|2

07000-02120

O-RING,COVER¤ TRANSFER CASE

SN: 10001-UP

1шт.

|2

232-15-13450

GASKET,COVER¤ TRANSFER CASE

SN: 10001-(3500)

1шт.

|2

421-15-13590

O-RING,CAGE¤ TRANSFER GEAR

SN: 10001-UP

1шт.

|2

424-15-05030

SHIM KIT,CAGE¤ TRANSFER GEAR

SN: 10001-UP

1шт.

|2

07000-02105

O-RING,COVER¤ TRANSFER CASE

SN: 10001-UP

1шт.

|2

07000-05125

O-RING,CAGE¤ TRANSFER GEAR

SN: 10001-UP

1шт.

|2

07012-10090

SEAL,OIL¤ TRANSFER GEAR

SN: 10001-UP

1шт.

|2

424-15-05040

SHIM KIT,TRANSFER GEAR

SN: 10001-UP

1шт.

|2

07000-05065

O-RING,COUPLING

SN: 10001-UP

1шт.

|2

07012-10095

SEAL,OIL¤ OUTPUT SHAFT

SN: 10001-UP

1шт.

|2

07000-05310

O-RING,CAGE¤ TRANSFER CASE

SN: 10001-UP

1шт.

|2

07000-73022

O-RING,PIPING

SN: 10001-UP

2шт.

|2

07002-02034

O-RING,PIPING

SN: 10001-UP

2шт.

|2

07000-73022

O-RING,PIPING

SN: 10001-UP

1шт.

|2

07005-00812

GASKET,PIPING

SN: 10001-UP

4шт.

3

423-15-05136

SERVICE KIT,TRANSMISSION VALVE

SN: (4193)-UP

1шт.

|3

423-15-05135

SERVICE KIT,TRANSMISSION VALVE

SN: (3936)-(4192)

1шт.

|3

423-15-05134

SERVICE KIT,TRANSMISSION VALVE

SN: (3815)-(3935)

1шт.

|3

423-15-05133

SERVICE KIT,TRANSMISSION VALVE

SN: (3642)-(3814)

1шт.

|3

423-15-05132

SERVICE KIT,TRANSMISSION VALVE

SN: (3501)-(3641)

1шт.

|3

423-15-05131

SERVICE KIT,TRANSMISSION VALVE

SN: (2198)-(3500)

1шт.

|3

423-15-05130

SERVICE KIT,TRANSMISSION VALVE

SN: 10001-2197)

1шт.

|3

07000-72021

O-RING

SN: 10001-UP

1шт.

|3

424-15-15930

GASKET

SN: 10001-UP

1шт.

|3

07000-73030

O-RING

SN: 10001-UP

1шт.

|3

07000-73035

O-RING

SN: 10001-UP

1шт.

|3

07000-72015

O-RING,UPPER VALVE

SN: 10001-UP

1шт.

|3

07000-71009

O-RING,UPPER VALVE

SN: 10001-UP

1шт.

|3

07000-72021

O-RING,UPPER VALVE

SN: 10001-(3814)

1шт.

|3

07000-73030

O-RING,UPPER VALVE

SN: 10001-(3814)

2шт.

|3

07002-03034

O-RING,UPPER VALVE

SN: 10001-(3814)

1шт.

|3

07000-72015

O-RING,UPPER VALVE

SN: 10001-(2197)

2шт.

|3

424-15-15982

GASKET,UPPER VALVE

SN: (3642)-UP

1шт.

|3

424-15-15981

GASKET,UPPER VALVE

SN: (3501)-(3641)

1шт.

|3

424-15-15980

GASKET,UPPER VALVE

SN: 10001-(3500)

1шт.

|3

424-15-15960

GASKET,LOWER VALVE

SN: 10001-UP

1шт.

|3

424-15-15920

GASKET,LOWER VALVE

SN: 10001-UP

1шт.

|3

07002-03034

O-RING,LOWER VALVE

SN: 10001-UP

1шт.

|3

424-15-15992

GASKET,LOWER VALVE

SN: (3642)-UP

1шт.

|3

424-15-15991

GASKET,LOWER VALVE

SN: (3501)-(3641)

1шт.

|3

424-15-15990

GASKET,LOWER VALVE

SN: 10001-(3500)

1шт.

|3

424-15-17230

GASKET,SOLENOID VALVE

SN: (3501)-UP

1шт.

|3

22W-06-15690

GASKET,SOLENOID VALVE

SN: (3501)-UP

1шт.

|3

568-15-15880

GASKET,SOLENOID VALVE

SN: 10001-(3500)

1шт.

|3

07000-71009

O-RING,SOLENOID VALVE

SN: 10001-UP

6шт.

|3

568-15-17260

O-RING,SOLENOID VALVE

SN: 10001-UP

1шт.

|3

07000-31006

O-RING,SOLENOID VALVE

SN: 10001-UP

1шт.

|3

424-15-17141

GASKET,SOLENOID VALVE

SN: (4193)-UP

1шт.

|3

424-15-17140

GASKET,SOLENOID VALVE

SN: 10001-(4192)

1шт.

|3

424-15-17121

GASKET,SOLENOID VALVE

SN: 10001-UP

1шт.

|3

0

GASKET,SOLENOID VALVE

SN: (10001-(3641))

1шт.
