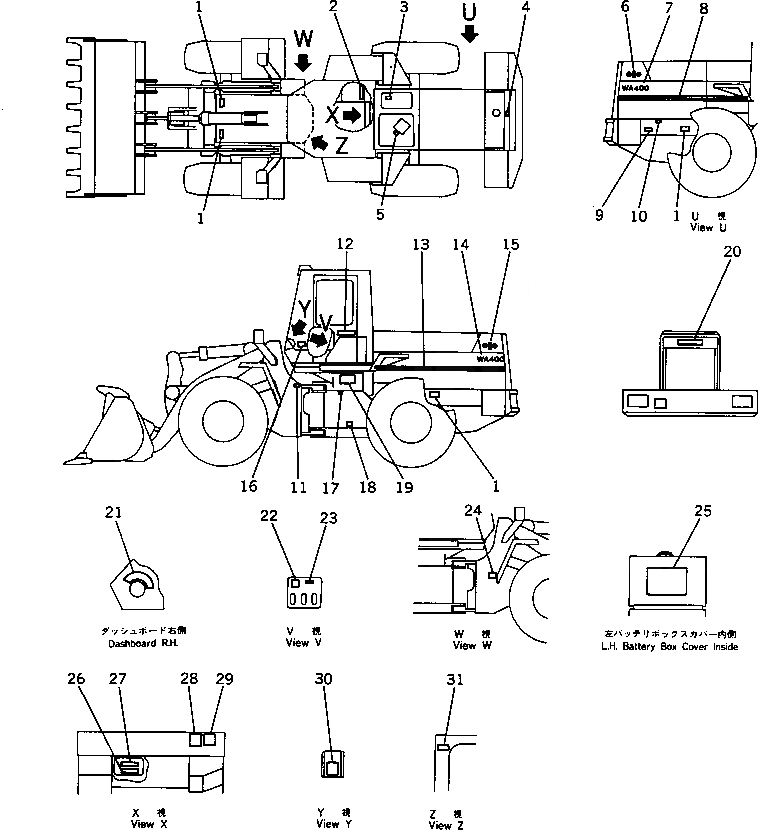

Запчасти Komatsu WA400-1 МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

426-93-11740

PLATE, OPERATING,ENGINE OIL

SN: 10325-UP

4шт.

2

425-93-11330

PLATE, OPERATING,RELAY

SN: 10149-UP

1шт.

3

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

4

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

5

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

6

09694-50280

PLATE, MARK,SYMBOL

SN: 10001-UP

1шт.

7

424-93-11181

PLATE, MARK,WA400

SN: 10001-UP

1шт.

8

423-93-11142

PLATE, STRIPE

SN: 10001-UP

1шт.

9

09101-03000

PLATE, CAUTION,FUEL

SN: .-UP

1шт.

9

0

PLATE, CAUTION,FUEL

SN: 10001-.

1шт.

10

362-54-27390

PLATE, CAUTION,FAN BELT

SN: 10001-UP

1шт.

11

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

2шт.

12

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

2шт.

13

423-93-11142

PLATE, STRIPE

SN: 10001-UP

1шт.

14

423-93-11181

PLATE, MARK,WA400

SN: 10001-UP

1шт.

15

09694-50280

PLATE, MARK,SYMBOL

SN: 10001-UP

1шт.

16

423-93-11440

PLATE, OPERATING,MONITOR PANEL

SN: 10263-UP

1шт.

17

425-93-11290

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10188-UP

1шт.

17

0

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-10187

1шт.

18

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

19

424-93-11412

CHART, OIL

SN: 11041-UP

1шт.

19

0

CHART, OIL

SN: 10001-11040

1шт.

19

0

CHART, OIL

SN: (10001-10986)

1шт.

20

09690-50400

PLATE, MARK,KOMATUS

SN: 10001-UP

1шт.

21

09683-30070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-UP

1шт.

22

421-93-11132

PLATE, OPERATING,WORK EQUIPMENT CONTROL LEVER

SN: 10001-UP

1шт.

23

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

24

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

24

04418-13060

SCREW

SN: 10001-UP

4шт.

25

419-93-11460

PLATE, CAUTION,BATTERY

SN: 10001-UP

1шт.

26

424-93-11420

PLATE, OPERATING,FUSE

SN: 10001-UP

1шт.

27

424-93-11430

PLATE, OPERATING,FUSE

SN: 10001-UP

1шт.

28

419-93-11320

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

29

362-98-12150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

30

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10532-UP

1шт.

30

0

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-10531

1шт.

31

09152-03000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-UP

1шт.
