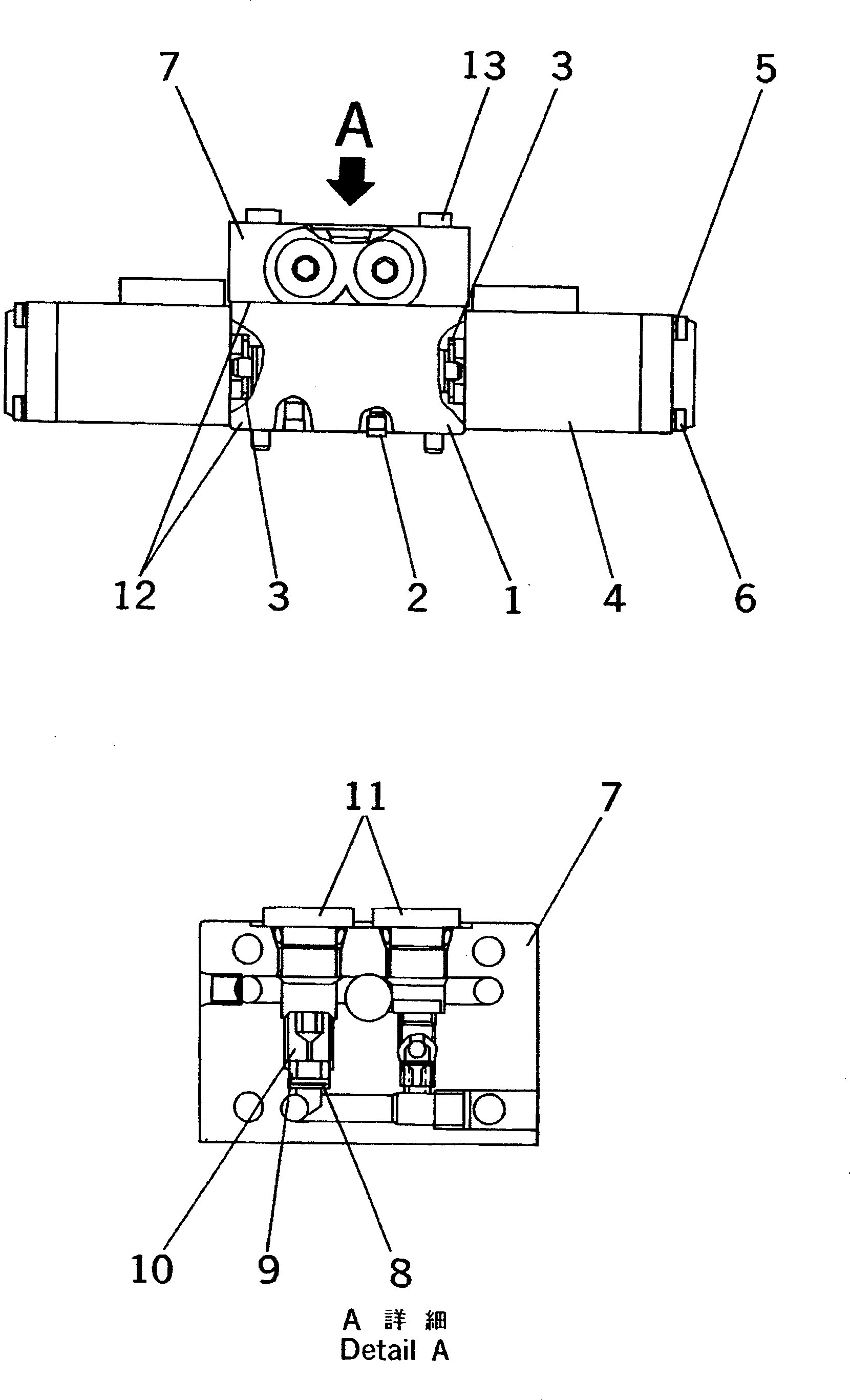

Запчасти Komatsu WA40-3 ОСНОВН. НАСОС (ПОРШЕНЬ НАСОС ВНУТР. ЧАСТИ) (УПРАВЛ-Е И ОТСЕКАЮЩИЙ КЛАПАН) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

363-17-31402

PUMP ASS'Y,(A4VG28DA-931-0)

SN: 19001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A0 TO Y1610-07A0.

-1шт.

|$$3

THE UCHIDA YUATSU KIKI PART NUMBER IS THAT UC IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|$4

UCBA041S9146-0

PUMP ASS'Y,PISTON

SN: 19001-UP

1шт.

|$$5

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-02A0 T0 Y1610-06A0.

-1шт.

|$6

UC4100448139

CONTROL VALVE ASS'Y

SN: 19001-UP

1шт.

1

UC4100357859

VALVE ASS'Y

SN: 19001-UP

1шт.

2

UC1701564934

ORIFICE

SN: 19001-UP

1шт.

3

02890-01015

O-RING

SN: 19001-UP

2шт.

|$10

UC4704282659

VALVE ASS'Y

SN: 19001-UP

2шт.

4

UC1701577398

SOLENOID

SN: 19001-UP

1шт.

5

UC1701577159

BOLT

SN: 19001-UP

4шт.

6

UC1302057008

WASHER,SPRING

SN: 19001-UP

4шт.

|$14

UC4100448083

COVER ASS'Y

SN: 19001-UP

1шт.

7

UC1100355599

COVER

SN: 19001-UP

1шт.

8

UC1100355508

FILTER

SN: 19001-UP

1шт.

9

UC1100350008

SPACER

SN: 19001-UP

1шт.

10

UC1100447982

ORIFICE

SN: 19001-UP

1шт.

11

UC4100104426

PLUG

SN: 19001-UP

2шт.

12

UC1704160049

GASKET

SN: 19001-UP

2шт.

13

UC1301765001

BOLT

SN: 19001-UP

4шт.
