G1
0

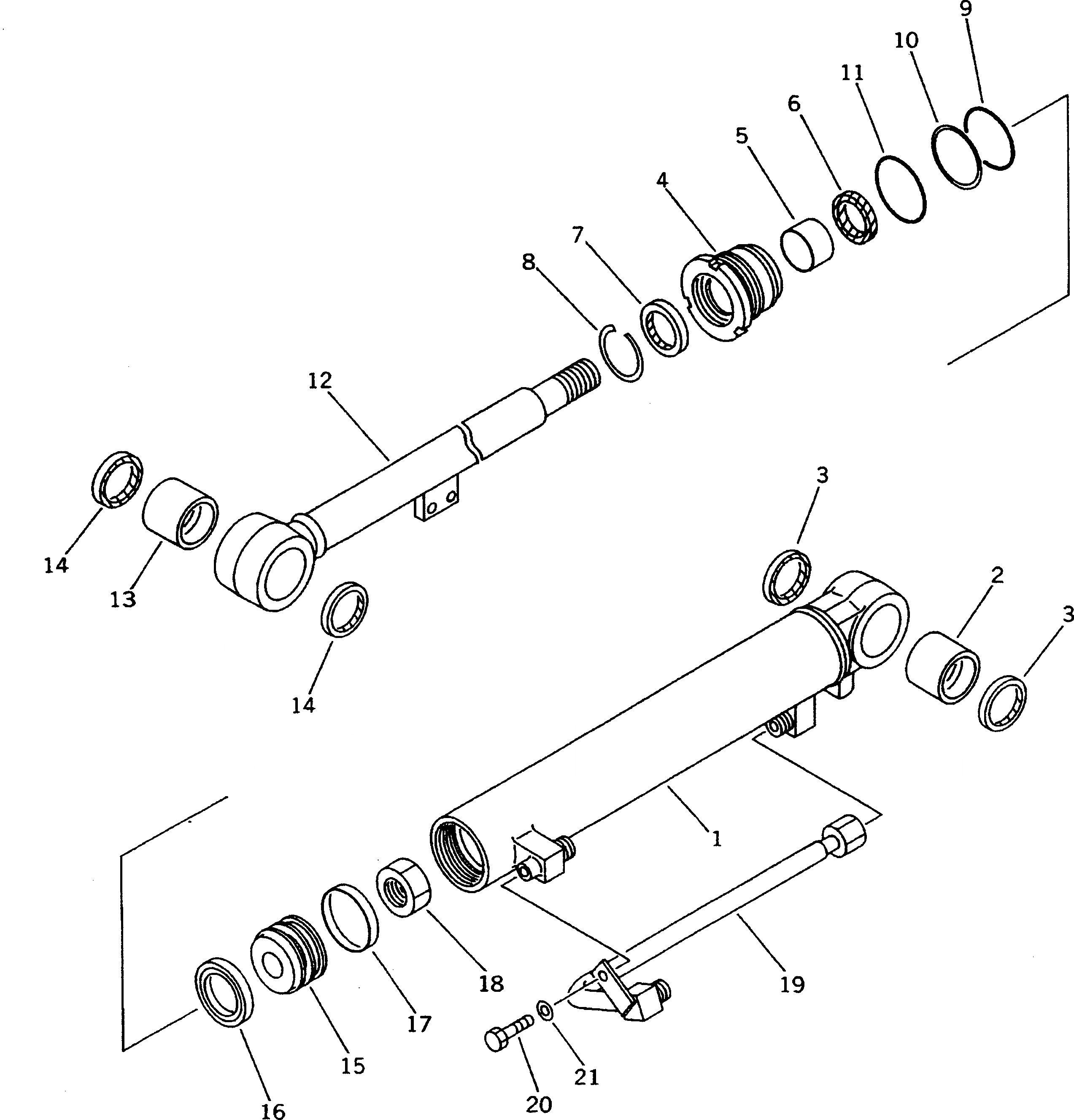

CYLINDER GROUP,DUMP
SN: 10001-UP
1шт.
|$$2
====================
-1шт.
|$2
363-63-02130
CYLINDER ASS'Y
SN: 10001-UP
1шт.
1
363-63-22740
CYLINDER
SN: 10001-UP
1шт.
2
07143-10404
BUSHING
SN: 10001-UP
1шт.
3
07145-00040
SEAL,DUST (KIT)
SN: 10001-UP
2шт.
4
707-29-70830
HEAD,CYLINDER
SN: 10001-UP
1шт.
5
07177-04025
BUSHING
SN: 10001-UP
1шт.
6
707-51-40210
PACKING,ROD (KIT)
SN: 10001-UP
1шт.
7
198-63-75190
SEAL,DUST (KIT)
SN: 10001-UP
1шт.
8
07179-12052
RING,SNAP
SN: 10001-UP
1шт.
9
07000-12065
O-RING (KIT)
SN: 10001-UP
1шт.
10
07146-02066
RING,BACK-UP (KIT)
SN: 10001-UP
1шт.
11
07000-02070
O-RING (KIT)
SN: 10001-UP
1шт.
12
363-63-22720
ROD,PISTON
SN: 10001-UP
1шт.
13
07143-10404
BUSHING
SN: 10001-UP
1шт.
14
07145-00040
SEAL,DUST (KIT)
SN: 10001-UP
2шт.
15
707-36-70270
PISTON
SN: 10001-UP
1шт.
16
707-44-70180
RING,PISTON (KIT)
SN: 10001-UP
1шт.
17
07156-00710
RING,WEAR (KIT)
SN: 10001-UP
1шт.
18
01580-02722
NUT
SN: 10001-UP
1шт.
19
363-63-22770
TUBE
SN: 10001-UP
1шт.
20
01010-50820
BOLT
SN: 10001-UP
1шт.
21
01643-30823
WASHER
SN: 10001-UP
1шт.
|$$25
====================
-1шт.
|$$26
SERVICE KIT
-1шт.
K
707-98-14640
SERVICE KIT,DUMP CYLINDER
SN: 10001-UP
1шт.
