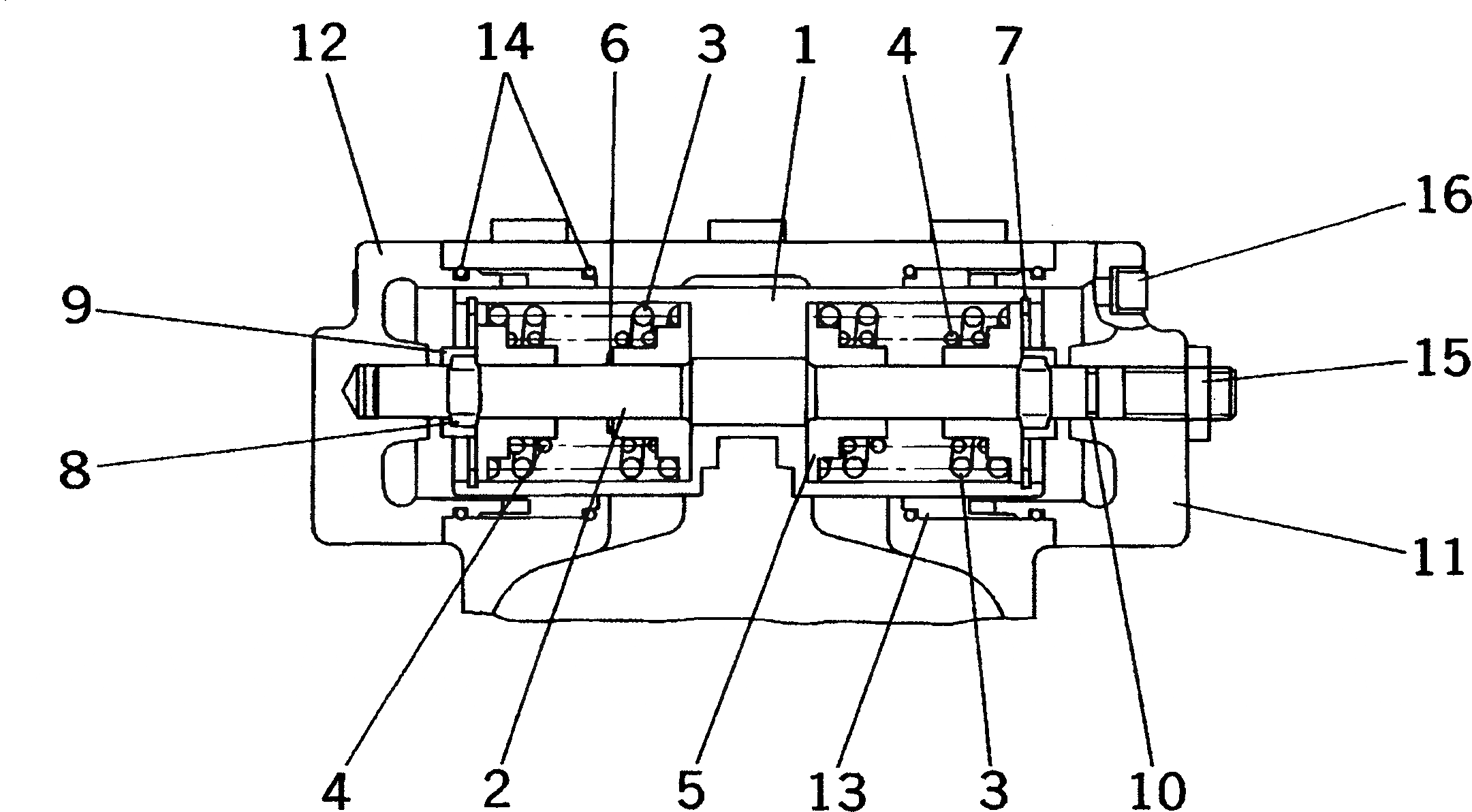

Запчасти Komatsu WA40-3-CN ОСНОВН. НАСОС (ПОРШЕНЬ НАСОС ВНУТР. ЧАСТИ) (ЦИЛИНДР НАКЛОНА) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

363-17-31402

PUMP ASS'Y,(A4VG28DA-931-0)

SN: 19001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A0 TO Y1610-07A0.

-1шт.

|$$3

-1шт.

|1

UCBA041S9146-0

PUMP ASS'Y,PISTON

SN: 19001-UP

1шт.

|$$5

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-02A0 T0 Y1610-06A0.

-1шт.

|1

UC4704340893

CYLINDER ASS'Y,LEANING

SN: 19001-UP

1шт.

1

UC1704351281

PISTON

SN: 19001-UP

1шт.

2

UC1704142014

ROD

SN: 19001-UP

1шт.

3

UC1704322467

SPRING,LARGE

SN: 19001-UP

2шт.

4

UC1704322476

SPRING,SMALL

SN: 19001-UP

2шт.

5

UC1704352642

RETAINER

SN: 19001-UP

4шт.

6

UC1701544765

SHIM¤ 0.3MM

SN: 19001-UP

1шт.

|6

UC1701544774

SHIM¤ 0.5MM

SN: 19001-UP

1шт.

|6

UC1701547259

SHIM¤ 0.4MM

SN: 19001-UP

1шт.

7

04065-04018

RING,SNAP

SN: 19001-UP

2шт.

8

UC1704004646

RING¤ 5.77MM

SN: 19001-UP

2шт.

|8

UC1704004655

RING¤ 5.82MM

SN: 19001-UP

2шт.

|8

UC1704004664

RING¤ 5.87MM

SN: 19001-UP

2шт.

|8

UC1704004673

RING¤ 5.92MM

SN: 19001-UP

2шт.

|8

UC1704004682

RING¤ 5.97MM

SN: 19001-UP

2шт.

|8

UC1704004691

RING¤ 6.02MM

SN: 19001-UP

2шт.

9

UC1704004701

GUIDE

SN: 19001-UP

2шт.

10

02890-01009

O-RING

SN: 19001-UP

1шт.

11

UC1704152075

COVER

SN: 19001-UP

1шт.

12

UC1704154199

COVER

SN: 19001-UP

1шт.

13

UC1100357614

BUSHING

SN: 19001-UP

2шт.

14

02891-02051

O-RING

SN: 19001-UP

4шт.

15

UC1193100207

NUT

SN: 19001-UP

1шт.

16

01252-30620

BOLT

SN: 19001-UP

8шт.
