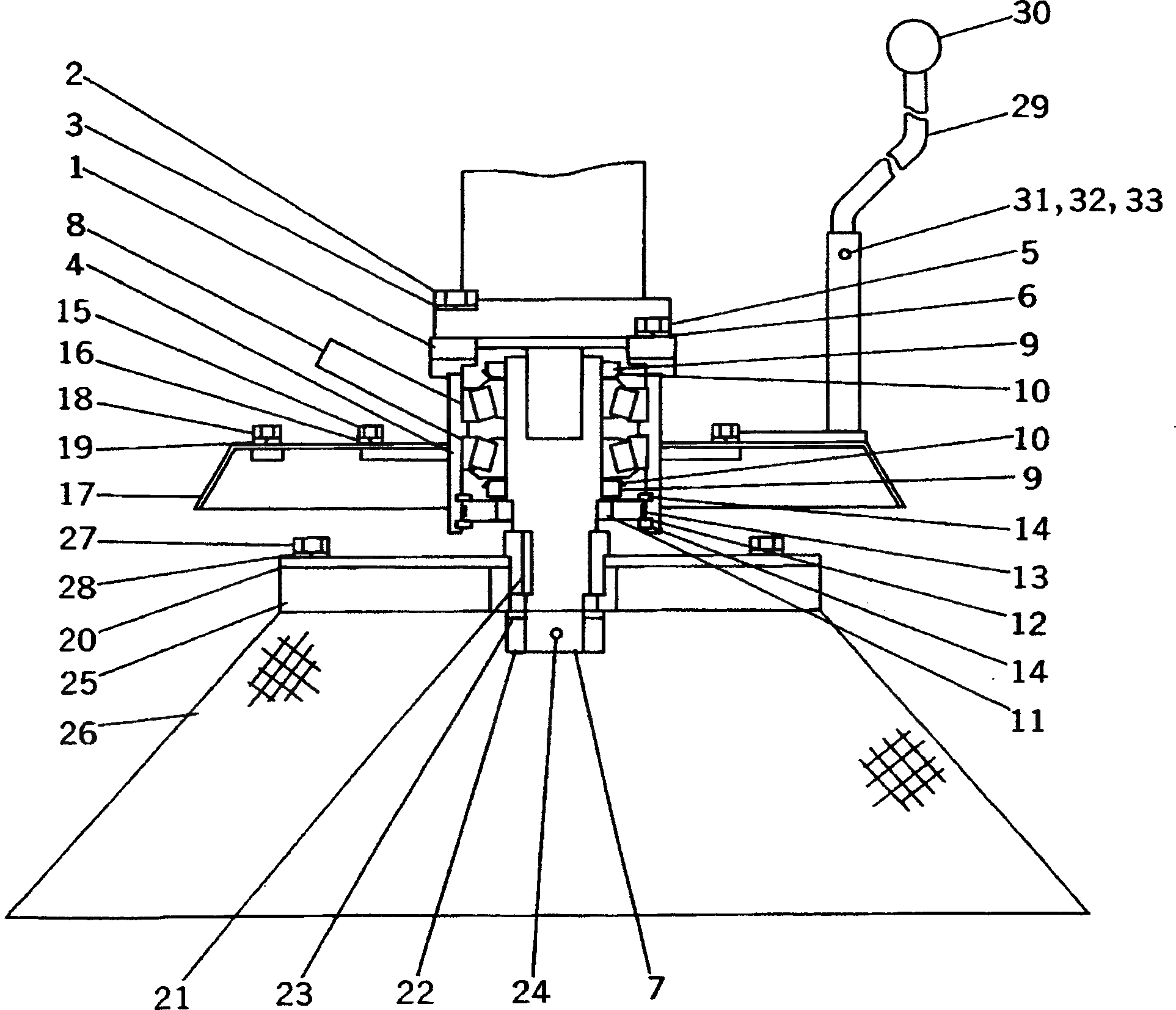

Запчасти Komatsu WA40-3-CN ROAD SWEEPER (ВНУТР. ЭЛЕМЕНТЫ) (7/8) (GUTTER BRUSH) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

363-N90-3311

SWEEPER ASS'Y,(IRON WHEEL TYPE)

SN: 19001-UP

1шт.

|1

363-Z56-3510

SWEEPER ASS'Y,(TIRE TYPE)

SN: 19001-UP

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T4250-51A0 TO T4250-58A0.

-1шт.

|1

363-N90-3121

SWEEPER ASS'Y,(IRON WHEEL TYPE)

SN: 19001-UP

1шт.

|1

363-Z56-3520

SWEEPER ASS'Y,(TIRE TYPE)

SN: 19001-UP

1шт.

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T4250-51A0 TO T4250-58A0.

-1шт.

1

362-Z56-4710

PLATE,MOTOR

SN: 19001-UP

1шт.

2

01050-51230

BOLT

SN: 19001-UP

2шт.

3

01602-21236

WASHER,SPRING

SN: 19001-UP

2шт.

4

362-Z56-4690

CASE,BEARING

SN: 19001-UP

1шт.

5

01010-81025

BOLT

SN: 19001-UP

4шт.

6

01602-21030

WASHER,SPRING

SN: 19001-UP

4шт.

7

362-Z56-4510

SHAFT,GUTTER

SN: 19001-UP

1шт.

8

362-Z56-4680

BEARING

SN: 19001-UP

2шт.

9

362-Z56-4660

NUT,LOCK

SN: 19001-UP

2шт.

10

362-Z56-4670

WASHER,LOCK

SN: 19001-UP

2шт.

11

362-Z56-4590

SEAL,OIL

SN: 19001-UP

1шт.

12

362-Z56-4620

COLLAR,SHUTTER

SN: 19001-UP

1шт.

13

362-Z56-4630

O-RING

SN: 19001-UP

1шт.

14

362-Z56-4610

RING,SNAP

SN: 19001-UP

1шт.

15

01010-80816

BOLT

SN: 19001-UP

4шт.

16

01602-20825

WASHER,SPRING

SN: 19001-UP

4шт.

17

362-Z56-4640

COVER ASS'Y

SN: 19001-UP

1шт.

18

01010-80816

BOLT

SN: 19001-UP

1шт.

19

01602-20825

WASHER,SPRING

SN: 19001-UP

1шт.

20

362-Z56-4580

PLATE,GUTTER

SN: 19001-UP

1шт.

21

362-Z56-4650

KEY

SN: 19001-UP

1шт.

22

362-Z56-4530

NUT

SN: 19001-UP

1шт.

23

362-Z56-4540

WASHER

SN: 19001-UP

1шт.

24

362-Z56-4520

PIN,COTTER

SN: 19001-UP

1шт.

|25

362-Z56-4550

BRUSH ASS'Y,GUTTER

SN: 19001-UP

1шт.

25

0

SEGMENT

SN: 19001-UP

4шт.

26

0

WIRE ASS'Y

SN: 19001-UP

1шт.

27

01010-81040

BOLT

SN: 19001-UP

8шт.

28

01602-21030

WASHER,SPRING

SN: 19001-UP

8шт.

29

362-Z56-4720

GUIDE

SN: 19001-UP

1шт.

30

362-Z56-4730

BALL,GUIDE

SN: 19001-UP

1шт.

31

01010-80625

BOLT

SN: 19001-UP

1шт.

32

01580-10605

NUT

SN: 19001-UP

1шт.

33

01602-20619

WASHER,SPRING

SN: 19001-UP

1шт.

|$$41

OPTIONAL PARTS{(FOR R.H. SIDE GUTTER BRUSH)}

-1шт.

17

362-Z56-4740

COVER ASS'Y

SN: 19001-UP

1шт.
